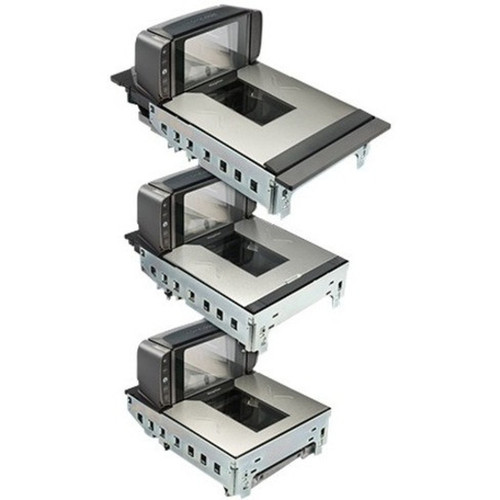

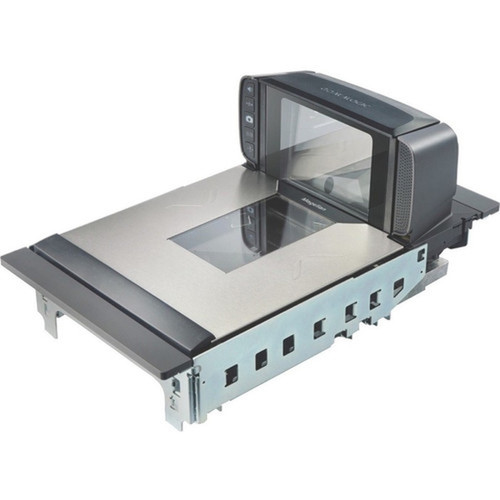

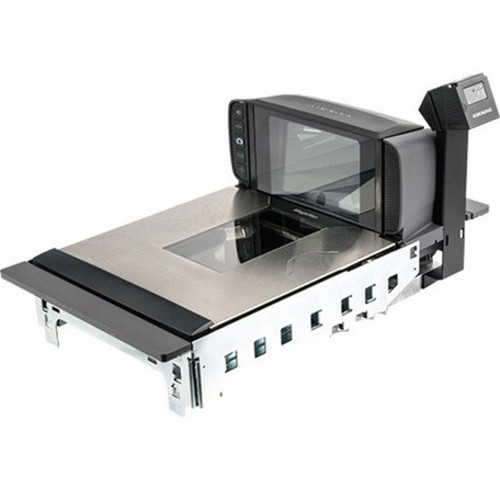

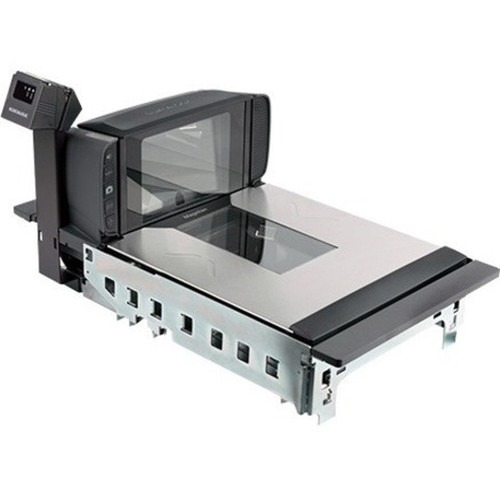

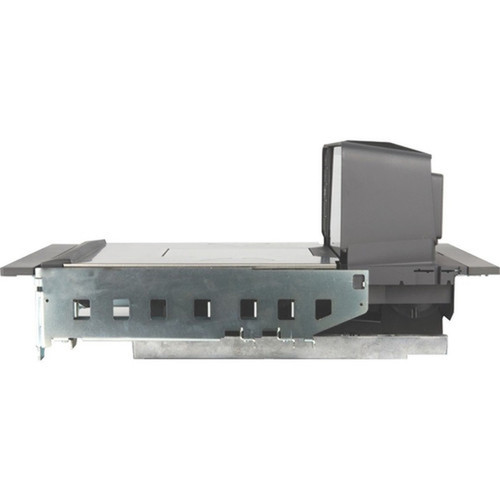

Datalogic 931013110-00053 Magellan 9300i Barcode Scanner - 2D/1D Imager - Omni-directional - USB - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 1D:
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MicroPDF417
- PDF417
- UPC A/E Composites
Connectivity Technology: Cable
Scanning Capability: 2D,1D
Barcode Symbology Supported:
STACKED CODES:
2D:
Aztec Code
Data Matrix
QR Code
Micro QR Code
Image Sensor Type: Imager
Scan Pattern: Omni-directional,Area
Scanner Range: Standard Range
Cable Type Included: USB
Stand Included: Yes
Image Formats: BMP,JPEG
Maximum Ambient Light: 86080 lux
Illumination Type: LED
Air Electrostatic Discharge (+/-): 25kV
Features: Vibration,Diagnostic Reporting,Checkpoint EAS,Sensormatic EAS,Grayscale Image Capture
Infrared: Yes
Host Interface: USB
Maximum Operating Power Consumption: 12 W
Operating Temperature: 50°F (10°C) to 104°F (40°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: In-counter
Color Family: Black
Product Color: Black
Width: 11.50" (292 mm)
Length: 14.02" (356 mm)
Application/Usage: Self-checkout
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | 931013110-00053 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Magellan |
| Product Series | 9300i |
| Product Name | Magellan 9300i Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 2D,1D |
| Barcode Symbology Supported |
STACKED CODES:
2D: Aztec Code Data Matrix QR Code Micro QR Code |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional,Area |
| Scanner Range | Standard Range |
| Cable Type Included | USB |
| Stand Included | Yes |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 86080 lux |
| Illumination Type | LED |
| Air Electrostatic Discharge (+/-) | 25kV |
| Features | Vibration,Diagnostic Reporting,Checkpoint EAS,Sensormatic EAS,Grayscale Image Capture |
| Network & Communication | |
| Infrared | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Power Description | |
| Maximum Operating Power Consumption | 12 W |
| Environmental Conditions | |
| Operating Temperature | 50°F (10°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | In-counter |
| Color Family | Black |
| Product Color | Black |
| Width | 11.50" (292 mm) |
| Length | 14.02" (356 mm) |
| Miscellaneous | |
| Application/Usage | Self-checkout |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
