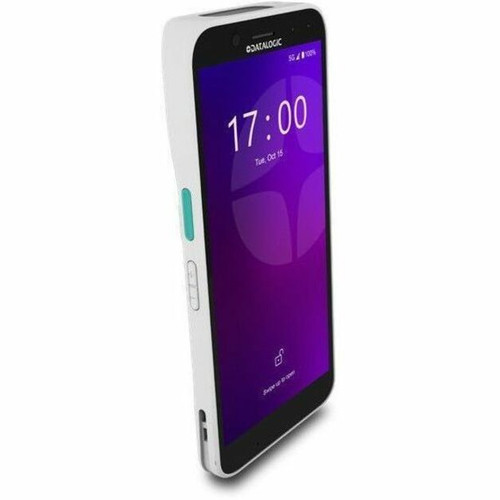

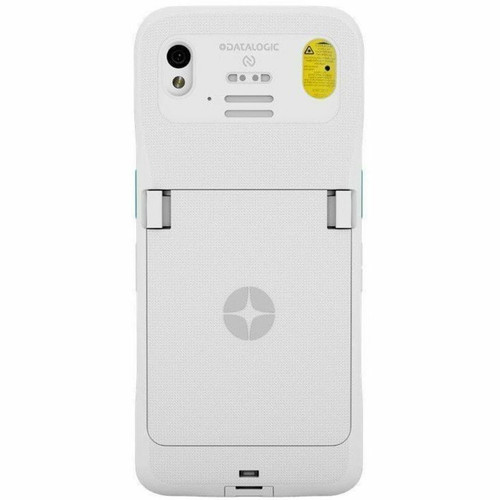

Datalogic Memor 17 HC Handheld Terminal - 1D, 2D - 5G, 4G, 3G, 2G, LTE, LTE Advanced - 39.37" (1000 mm) - DE2121-DLScan Engine - 2.40 (944950006)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wired/Wireless
Scanning Capability: 1D,2D
Scan Engine Model: DE2121-DL
Image Sensor Type: Imager
Scanner Range: Standard Range
Scanning Distance: 39.37" (1000 mm)
Google Mobile Services (GMS): Yes
Wireless Charging: Yes
Sensor Type: Accelerometer,Ambient Lighting,Proximity,Gyroscope,Magnetometer,Barometer
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Nano/eSIM
Features: Dust Resistant,Water Resistant,Green Spot Technology,Push-to-talk,Drop Resistant,Gorilla Glass,Corning Gorilla Glass,Dual SIM,eSIM,Chemical Resistant,Fast Charging
Brightness: 450 cd/m²
Illumination Type: LED
Scan Mode: Trigger
Processor Manufacturer: Qualcomm
Processor Core: Octa-core (8 Core)
Processor Speed: 2.40 GHz
Standard Memory: 6 GB
Flash Memory: 64 GB
Memory Card Supported: microSD,UFS
Screen Size: 6"
Screen Mode: Full HD+
Screen Resolution: 1080 x 2160
Display Screen Type: LED
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Simultaneous Touchpoints: 5
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.3 BLE
Near Field Communication (NFC): Yes
Cellular Network Supported: GSM,WCDMA
Cellular Data Connectivity Technology: 5G,4G,3G,2G,LTE,LTE Advanced
GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/GLONASS
USB: Yes
USB Type-C: Yes
Front Camera: Yes
Front Camera Resolution: 8 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Operating System: Android 13
Upgradable Operating System: Android 18
Battery Capacity: 4000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.87 V
Removable Battery: Yes
Operating Temperature: 14°F (-10°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Form Factor: Phone-size
Rugged: Yes
Weight (With Battery): 8.64 oz (245 g)
Application/Usage: Industrial,Healthcare,Retail,Transportation,Logistics,Proof of Delivery/Pickup (Signature & Photo)
Ingress Protection (IP) Rating: IP65,IP67
- Touch panel gives your workforce ease, along with familiar and flexible operation, thus improving overall efficiency on a daily basis
- Provides simple, affordable and highly secure connectivity to your remote workers with wireless technology
- 6" LED screen is ideal for scan intensive applications
- 6 GB RAM / 64 GB flash memory helps run applications rapidly and stores the mightiest databases
- microSD card slot gives an extra storage option
- With integrated Bluetooth module, gadgets such as portable tag printers can be utilized rapidly and effortlessly without cable connections
- Phone-size form factor is comfortable to utilize in intensive or non-intensive scan environments
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | 944950006 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Memor 17 HC |
| Product Name | Memor 17 HC Handheld Terminal |
| Product Type | Handheld Terminal |
| Technical Information | |
| Connectivity Technology | Wired/Wireless |
| Scanning Capability | 1D,2D |
| Scan Engine Model | DE2121-DL |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Scanning Distance | 39.37" (1000 mm) |
| Google Mobile Services (GMS) | Yes |
| Wireless Charging | Yes |
| Sensor Type | Accelerometer,Ambient Lighting,Proximity,Gyroscope,Magnetometer,Barometer |
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Nano/eSIM |
| Features | Dust Resistant,Water Resistant,Green Spot Technology,Push-to-talk,Drop Resistant,Gorilla Glass,Corning Gorilla Glass,Dual SIM,eSIM,Chemical Resistant,Fast Charging |
| Brightness | 450 cd/m² |
| Illumination Type | LED |
| Scan Mode | Trigger |
| Processor & Chipset | |
| Processor Manufacturer | Qualcomm |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.40 GHz |
| Memory | |
| Standard Memory | 6 GB |
| Flash Memory | 64 GB |
| Memory Card Supported | microSD,UFS |
| Display & Graphics | |
| Screen Size | 6" |
| Screen Mode | Full HD+ |
| Screen Resolution | 1080 x 2160 |
| Display Screen Type | LED |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 5 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 BLE |
| Near Field Communication (NFC) | Yes |
| Cellular Network Supported | GSM,WCDMA |
| Cellular Data Connectivity Technology | 5G,4G,3G,2G,LTE,LTE Advanced |
| GPS | Yes |
| Global Navigation Satellite System (GNSS) Supported | BeiDou/GLONASS |
| Interfaces/Ports | |
| USB | Yes |
| USB Type-C | Yes |
| Camera | |
| Front Camera | Yes |
| Front Camera Resolution | 8 Megapixel |
| Rear Camera | Yes |
| Rear Camera Resolution | 13 Megapixel |
| Software | |
| Operating System | Android 13 |
| Upgradable Operating System | Android 18 |
| Battery Information | |
| Battery Capacity | 4000 mAh |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Included | Yes |
| Battery Voltage | 3.87 V |
| Removable Battery | Yes |
| Environmental Conditions | |
| Operating Temperature | 14°F (-10°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Physical Characteristics | |
| Form Factor | Phone-size |
| Rugged | Yes |
| Weight (With Battery) | 8.64 oz (245 g) |
| Miscellaneous | |
| Application/Usage | Industrial,Healthcare,Retail,Transportation,Logistics,Proof of Delivery/Pickup (Signature & Photo) |
| Ingress Protection (IP) Rating | IP65,IP67 |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf2
Additional-pdf1
Additional-pdf3
[/custom-user-manual]
