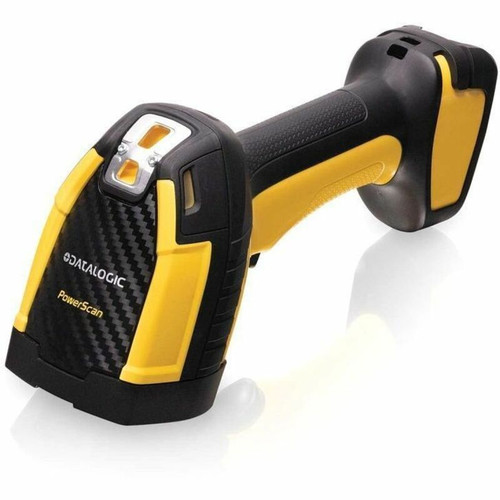

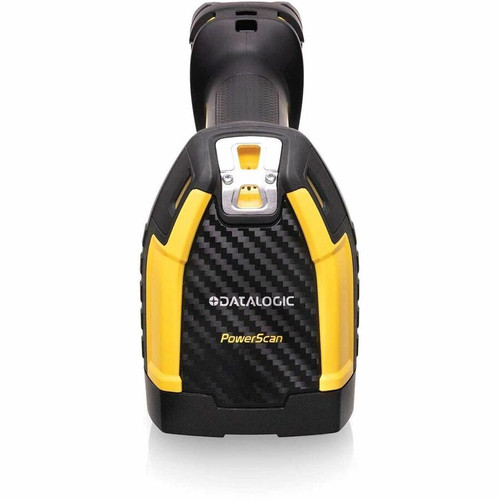

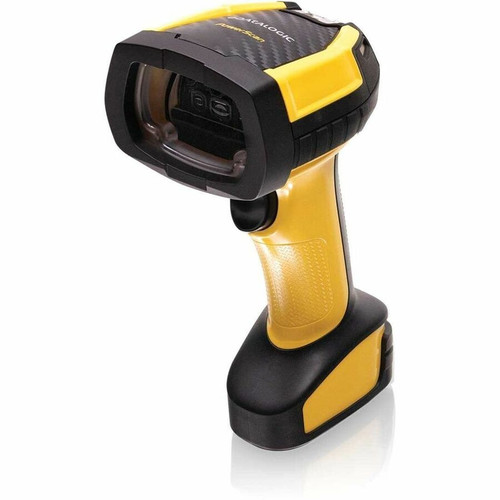

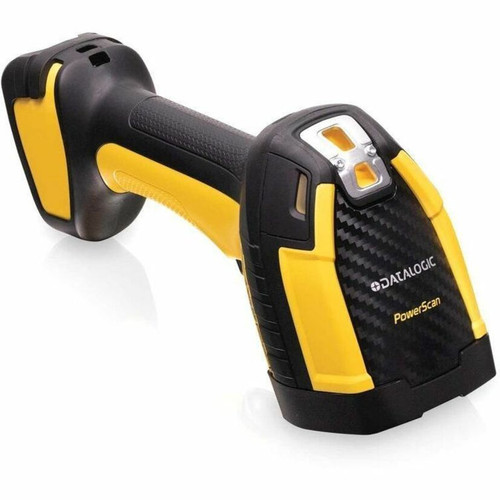

Datalogic PowerScan 9600 PBT9600 Barcode Scanner Kit - Wireless Connectivity - 68.90" (1750.06 mm) Scan Distance - 1D, 2D - LED - - - (BC9620-BT)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Area,Omni-directional
Scanner Range: Standard Range
Scanning Distance: 68.90" (1750.06 mm)
Cable Type Included: USB
Field of View (Horizontal): 38°
Field of View (Vertical): 24°
Reading Angle (Skew): 52°
Reading Angle (Pitch): 52°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 20kV
Features: Vibration,Beep,Notification LED
Bluetooth: Yes
Radio Frequency: Yes
Host Interface: USB,Serial,Keyboard Wedge,Multi-interface
Power Supply Included: Yes
Standby Current: 187 mA
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3350 mAh
Maximum Battery Recharge Time: 3.20 Hour
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Rugged: Yes
Color Family: Dual Color
Product Color: Black,Yellow
Durability: Water Resistant,Dust Resistant
Height: 7.80" (198.12 mm)
Width: 3.10" (78.74 mm)
Length: 5.50" (139.70 mm)
Weight (Approximate): 14.64 oz (415 g)
Ingress Protection (IP) Rating: IP65,IP67
Application/Usage: Industrial,Warehouse,Logistics,Manufacturing,Inventory,Picking,Component Tracking,Sorting,Packing
- Laser-free design provides high-performance scanning without the risk of eye injury
- Increase productivity and performance by excluding the cable
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | BC9620-BT |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PBT9600 |
| Product Name | PowerScan 9600 PBT9600 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area,Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 68.90" (1750.06 mm) |
| Cable Type Included | USB |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Features | Vibration,Beep,Notification LED |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Keyboard Wedge,Multi-interface |
| Power Description | |
| Power Supply Included | Yes |
| Standby Current | 187 mA |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Durability | Water Resistant,Dust Resistant |
| Height | 7.80" (198.12 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 14.64 oz (415 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Industrial,Warehouse,Logistics,Manufacturing,Inventory,Picking,Component Tracking,Sorting,Packing |
[/custom-specifications]
[custom-options]
| Product | Datalogic Handheld Scanner Holder |
| SKU | HLD-P096 |
| Sale Price | $20.95 |
| Product | Datalogic Battery - For Handheld Scanner |
| SKU | RBP-PM96 |
| Sale Price | $62.95 |
| Product | Datalogic Multi-Bay Battery Charger - 2 |
| SKU | MC-P096-E2 |
| Sale Price | $125.95 |
| Product | Datalogic Multi-Bay Battery Charger - 4 - Proprietary Battery Size |
| SKU | MC-P096-M4 |
| Sale Price | $283.95 |
| Product | Datalogic Multi-Bay Battery Charger - 2 - Proprietary Battery Size |
| SKU | MC-P096-M2 |
| Sale Price | $156.95 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
