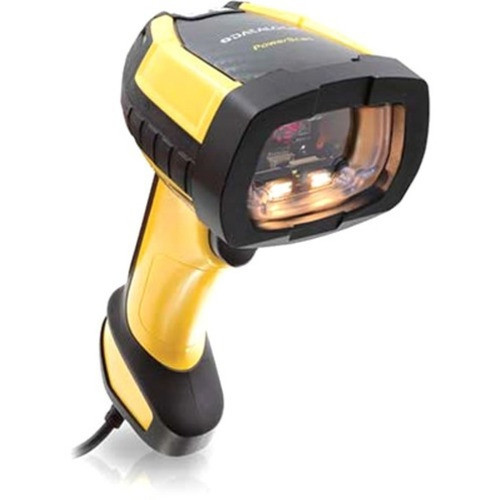

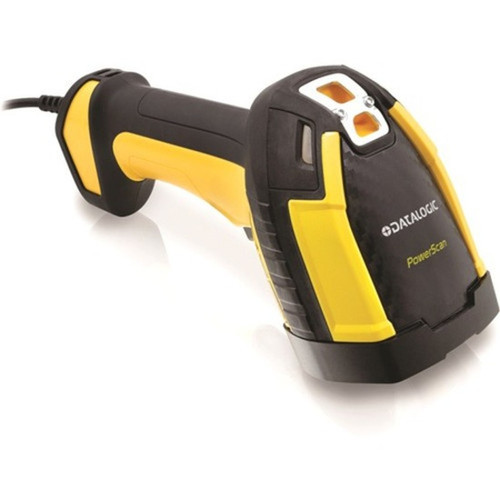

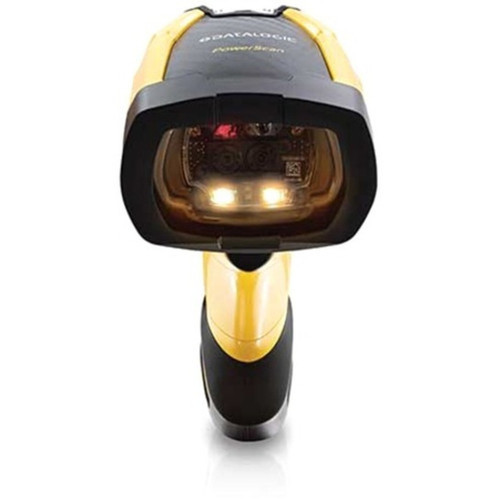

Datalogic PM9600-DHP910RBK10 PowerScan 9600 Wireless Barcode Scanner Kit - 95. 60" Scan Distance - 1D/2D
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- Auto discriminates all standard 1D codes including GS1 DataBar linear codes
- Aztec Code
- China Han Xin Code
- Data Matrix
- MaxiCode
- Micro QR Code
- QR Code
- Dot Code
- Australian Post
- British Post
- China Post
- IMB
- Japanese Post
- KIX Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- Digimarc Barcodes (HP and DC models)
- Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
- Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
- 1 x PowerScan 9600 PM9600 Barcode Scanner Kit
- 1 x Cradle BC9630-910
- 1 x Cable CAB-552
- 1 x Power Supply 8-0935
- 1 x Power Cord 6003-0941
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Postal Codes:
Stacked Codes:
Digital Watermarking:
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional,Area
Scanner Range: Short Range
Scanning Distance: 95.60" (2428.24 mm)
Display Screen: Yes
Number of Keys: 4
Cable Type Included: Serial
Field of View (Horizontal): 38°
Field of View (Vertical): 24°
Reading Angle (Skew): 52°
Reading Angle (Pitch): 52°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 20kV
Features: Beep,Notification LED,Ergonomic Design,Vibration,3GL,LCD Display
Bluetooth: Yes
Radio Frequency: Yes
Host Interface: USB,Serial,Ethernet,Multi-interface
Power Supply Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3350 mAh
Maximum Battery Recharge Time: 3.20 Hour
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Rugged: Yes
Color Family: Dual Color
Product Color: Yellow,Black
Durability: Water Resistant,Dust Resistant
Height: 7.80" (198 mm)
Width: 3.11" (79 mm)
Length: 5.51" (140 mm)
Weight (Approximate): 15.70 oz (445 g)
Package Contents:
Ingress Protection (IP) Rating: IP65,IP67
Application/Usage: Manufacturing,Warehouse,Logistics,Picking,Inventory,Asset Tracking,Sorting,Packing,Assembly Line,Component Tracking,Industrial
Environmentally Friendly: Yes
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- LED aimer is a perfect choice for patient-facing applications
- Increase productivity and performance by excluding the cable
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-DHP910RBK10 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600 |
| Product Name | PowerScan 9600 PM9600 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Postal Codes:
Stacked Codes:
Digital Watermarking:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional,Area |
| Scanner Range | Short Range |
| Scanning Distance | 95.60" (2428.24 mm) |
| Display Screen | Yes |
| Number of Keys | 4 |
| Cable Type Included | Serial |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Features | Beep,Notification LED,Ergonomic Design,Vibration,3GL,LCD Display |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB,Serial,Ethernet,Multi-interface |
| Power Description | |
| Power Supply Included | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Yellow,Black |
| Durability | Water Resistant,Dust Resistant |
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 15.70 oz (445 g) |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Manufacturing,Warehouse,Logistics,Picking,Inventory,Asset Tracking,Sorting,Packing,Assembly Line,Component Tracking,Industrial |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
