Datalogic PM9600-HP910RBK20 PM9600 PowerScan 9600 Barcode Scanner Kit - Wireless - 1D/2D Imager - 95. 6" Scan Distance - IP65/67 Rugged - Yellow/Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner employs a high-resolution 1280 x 800 pixel imager sensor with white LED illumination for consistent reading under ambient light up to 100,000 lux. It automatically discriminates all standard 1D linear codes and captures 2D symbols including QR Code, Data Matrix, PDF417, and postal codes with a minimum element resolution of 10 mil (0.25 mm).
The omni-directional scan pattern and wide reading angles (52° skew/pitch, 360° roll) allow for flexible presentation, while the 38° horizontal by 24° vertical field of view ensures reliable target acquisition. Integrated features include audible beep, notification LED, vibration feedback, and 3GL radio frequency support for real-time communication.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Radio Frequency, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PowerScan 9600 PM9600 combines extended wireless range with industrial-grade durability, making it ideal for applications where reliability and operator freedom are critical. Its cable-free operation increases productivity by eliminating trip hazards and allowing workers to move freely throughout warehouses, manufacturing floors, and distribution centers.
Enhanced Productivity
Wireless connectivity removes cable restrictions, enabling faster scanning workflows and reducing operator fatigue during extended shifts.
- No cable management required
- Uninterrupted movement in large facilities
- Quick battery recharge in 3.2 hours
Industrial Durability
With IP65/IP67 sealing and drop resistance certification, this scanner maintains operation in challenging environments where other devices might fail.
- Withstands 50 drops from 2.5 meters
- Water and dust resistant construction
- Operates in extreme temperatures from -4°F to 122°F
Comprehensive Code Support
Reads virtually all common 1D and 2D barcode symbologies used in industrial, logistics, and retail applications worldwide.
- Auto-discrimination of standard 1D codes
- Support for QR, Data Matrix, PDF417
- Postal code recognition including USPS, Royal Mail
Deployment / Use Cases
The PM9600 scanner kit is specifically designed for industrial and commercial environments where reliable barcode capture under challenging conditions is essential. Its combination of long-range scanning, wireless operation, and rugged construction makes it suitable for applications where mobility and durability are equally important.
In warehouse and logistics settings, operators can use the wireless scanner for inventory management, order picking, and shipment verification without being tethered to fixed workstations. The extended scan distance allows for reading pallet labels and shelf tags from comfortable positions, reducing physical strain and improving accuracy.
Manufacturing & Assembly
Track components through production lines, verify part numbers, and manage work-in-process inventory with reliable scanning that withstands factory floor conditions.
Warehouse Operations
Enable efficient picking, packing, and inventory counting with wireless scanners that provide freedom of movement across large distribution centers.
Physical Profile
The handheld scanner measures 7.80" (198 mm) in height, 3.11" (79 mm) in width, and 5.51" (140 mm) in length, with an ergonomic design that accommodates extended use. Weighing approximately 14.99 oz (425 g), it balances substantial feel with comfortable handling. The dual-color yellow and black finish provides high visibility in industrial settings while the textured grip ensures secure handling even with gloves.
- Width
- 3.11" (79 mm)
- Height
- 7.80" (198 mm)
- Weight
- 14.99 oz (425 g)
- Length
- 5.51" (140 mm)
What's in the Box
This complete kit includes everything needed for immediate deployment of the wireless barcode scanning solution.
Highlights
- Wireless connectivity eliminates cable restrictions for enhanced mobility
- 95.6-inch scanning distance enables long-range barcode capture
- IP65/IP67 rated for water and dust resistance in harsh environments
- Withstands 50 drops from 2.5 meters for exceptional durability
- 1D and 2D imager reads virtually all common barcode symbologies
- 3350 mAh Li-Ion battery with 3.2-hour recharge time
- Operates in extreme temperatures from -4°F to 122°F
- High-visibility yellow and black design for industrial settings
- Includes complete kit with cradle, cables, and power supply
- 3-year limited warranty for long-term reliability assurance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-HP910RBK20 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600 |
| Product Name | PowerScan 9600 PM9600 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes (HP and DC models) |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Scanning Distance | 95.60" (2428.24 mm) |
| Cable Type Included | Serial |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 ° |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Features | Beep,Notification LED,Ergonomic Design,Vibration,3GL |
| Network & Communication | |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | Serial |
| Power Description | |
| Power Supply Included | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Yellow,Black |
| Durability | Water Resistant,Dust Resistant |
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 14.99 oz (425 g) |
| Miscellaneous | |

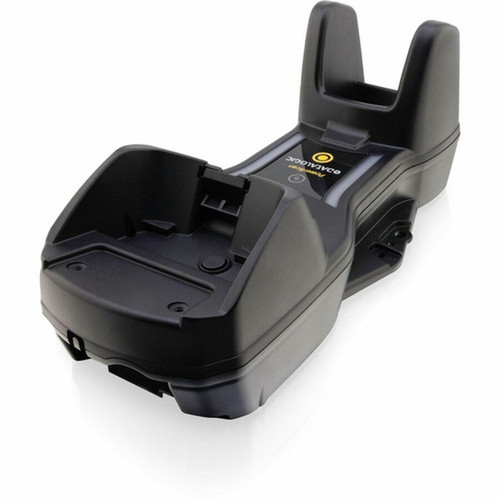

| Package Contents | 1 x PowerScan 9600 PM9600 Barcode Scanner 1 x Cradle BC9630-910 1 x Cable CAB-548 1 x Power Supply 8-0935 1 x Power Cord 6003-0941 |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Manufacturing,Warehouse,Logistics,Picking,Inventory,Sorting,Packing,Assembly Line,Component Tracking,Industrial |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the maximum scanning distance of the Datalogic PM9600 scanner?
The PowerScan 9600 PM9600 has a maximum scanning distance of 95.60 inches (2428.24 mm), allowing operators to read barcodes from significant distances without compromising accuracy. This extended range is particularly useful for scanning pallet labels, overhead signage, or items on high shelves in warehouse and industrial environments.
Does this scanner support both 1D and 2D barcodes?
Yes, the PM9600 supports comprehensive 1D and 2D barcode reading. It automatically discriminates all standard 1D linear codes including GS1 DataBar, and captures 2D symbols such as QR Code, Data Matrix, PDF417, Aztec Code, and various postal codes. This versatility makes it suitable for diverse applications across manufacturing, logistics, and retail sectors.
What environmental protection ratings does this scanner have?
The scanner features IP65 and IP67 ingress protection ratings. IP65 provides protection against dust ingress and low-pressure water jets from any direction, while IP67 adds protection against temporary immersion in water up to 1 meter for 30 minutes. These ratings ensure reliable operation in environments with dust, moisture, or occasional water exposure.
How durable is the PowerScan 9600 PM9600 against drops and impacts?
This scanner is tested to withstand 50 drops from 2.5 meters (8.2 feet) at 20°C (68°F) and 50 drops from 2.0 meters (6.6 feet) at -20°C (-4°F). This rigorous drop specification ensures the device maintains functionality after accidental impacts that commonly occur in busy industrial, warehouse, and logistics environments.
What type of battery does the wireless scanner use and how long does it take to recharge?
The PM9600 is powered by a 3350 mAh Lithium-Ion (Li-Ion) battery that provides extended operating time between charges. The maximum battery recharge time is 3.2 hours when using the included power supply and cradle. This combination of capacity and quick recharge minimizes downtime and supports continuous shift operations.
What connectivity options are available with this barcode scanner kit?
The scanner features wireless connectivity with Serial host interface support. The kit includes a cradle (BC9630-910) and cable (CAB-548) for establishing the serial connection to host systems. This wireless design eliminates cable restrictions while maintaining reliable data transmission for inventory management, order processing, and asset tracking applications.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
