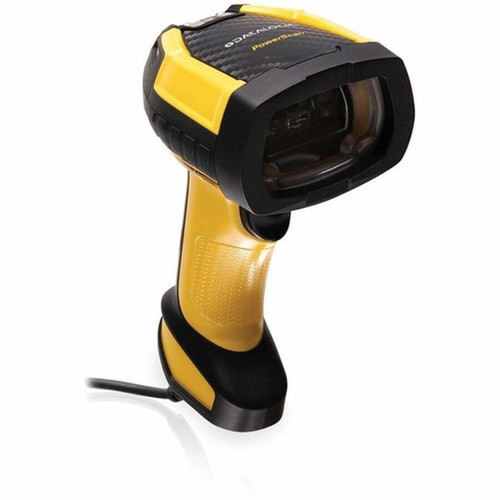

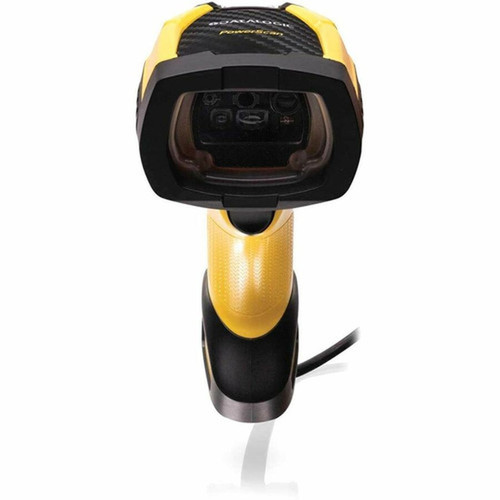

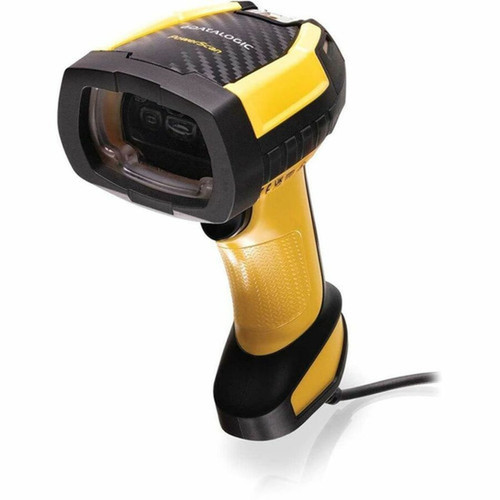

Datalogic PowerScan PBT9600 Barcode Scanner Kit - Cable Connectivity - 1D, 2D - Omni-directional - Bluetooth - Serial, USB - IP65, - (PBT9600-HPRBK20EU)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Scan Pattern: Omni-directional
Scanner Range: High Density
Field of View (Horizontal): 38°
Field of View (Vertical): 24°
Reading Angle (Skew): 52°
Reading Angle (Pitch): 52°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Minimum Print Contrast: 15%
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Maximum Element Resolution (PDF417): 10 mil (0.25 mm)
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Bluetooth: Yes
Host Interface: Serial,USB
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3350 mAh
Maximum Battery Recharge Time: 2.50 Hour
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Handheld
Rugged: Yes
Height: 7.80" (198 mm)
Width: 3.11" (79 mm)
Length: 5.51" (140 mm)
Weight (Approximate): 14.64 oz (415 g)
Ingress Protection (IP) Rating: IP65,IP67
Application/Usage: Manufacturing,Warehouse,Logistics,Picking,Inventory,Asset Tracking
- Wired connectivity makes this scanner ideal for retail and desktop applications
- Bluetooth technology - Allows compatibility with most of your smart devices
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PBT9600-HPRBK20EU |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Model | PBT9600 |
| Product Name | PowerScan PBT9600 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Scan Pattern | Omni-directional |
| Scanner Range | High Density |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Network & Communication | |
| Bluetooth | Yes |
| Interfaces/Ports | |
| Host Interface | Serial,USB |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 2.50 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 14.64 oz (415 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Manufacturing,Warehouse,Logistics,Picking,Inventory,Asset Tracking |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
