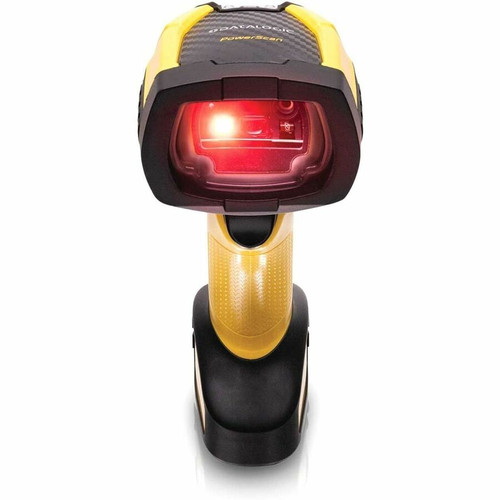

Datalogic PBT9600-SRRBK12US PowerScan SR Barcode Scanner Kit - Wireless 1D/2D Imager - 68. 9" Scan Distance - IP67 Rugged Handheld
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner features an omni-directional area scan pattern with a 38° horizontal and 24° vertical field of view, enabling flexible reading angles including 52° skew and pitch with 360° roll capability. The 1280 x 800 resolution imager captures detailed barcode images even with minimum print contrast of 15% and DataMatrix resolution down to 10 mil (0.25 mm).
Advanced illumination uses white LED technology with maximum ambient light tolerance of 100,000 lux, ensuring reliable performance in various lighting conditions. The scanner includes multiple feedback mechanisms including vibration, audible beep, and notification LED, complemented by an ergonomic design for extended use comfort.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Image Sensor Type, Bluetooth, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PowerScan PBT9600 SR combines extended wireless range with industrial durability, providing a scanning solution that maintains productivity in challenging environments. The IP67 and IP65 ratings offer protection against dust and water immersion, while the rugged construction withstands drops and impacts common in industrial settings.
Extended Wireless Range
With 68.9" scanning distance and Bluetooth connectivity, operators can scan barcodes from greater distances without cable limitations, improving workflow efficiency and reducing physical strain during extended scanning sessions.
- 68.9" maximum scan distance
- Bluetooth data transmission
- Radio frequency support
Industrial Durability
Built to withstand demanding environments with IP67/IP65 protection, 20kV air electrostatic discharge resistance, and operation across extreme temperature ranges from -4°F to 122°F.
- IP67/IP65 rated
- 20kV ESD protection
- -4°F to 122°F operating range
Enhanced Scanning Performance
The high-resolution imager captures 1D and 2D barcodes with precision, supported by wide reading angles and tolerance for low-contrast or damaged labels in various lighting conditions.
- 1D and 2D capability
- 52° reading angles
- 15% minimum print contrast
Deployment / Use Cases
The PowerScan PBT9600 SR is engineered for industrial scanning applications where mobility, durability, and reliable performance are critical. Its wireless design and extended range make it particularly valuable in environments where operators need to move freely while maintaining scanning capability.
In warehouse operations, the scanner supports inventory management, picking, and sorting tasks with its omni-directional scanning and long-range capability. Manufacturing facilities benefit from the rugged construction and environmental protection during component tracking and assembly line processes. Logistics operations utilize the wireless connectivity for parcel sorting and shipment verification without cable restrictions.
Warehouse Inventory Management
Scan pallet labels and shelf barcodes from distance with wireless mobility, supporting efficient inventory counts and location verification throughout large warehouse spaces.
Manufacturing Component Tracking
Withstand industrial environments while scanning components on assembly lines, with ESD protection and durability for continuous operation in manufacturing facilities.
Physical Profile
The handheld scanner measures 7.80" (198 mm) in height, 3.11" (79 mm) in width, and 5.51" (140 mm) in length, with an approximate weight of 14.64 oz (415 g). The dual-color black and yellow design provides high visibility in industrial settings while the ergonomic shape ensures comfortable grip during extended use. The compact form factor allows for easy handling and storage when not in use.
- Width
- 3.11" (79 mm)
- Height
- 7.80" (198 mm)
- Weight
- 14.64 oz (415 g)
- Length
- 5.51" (140 mm)
What's in the Box
This kit includes the complete setup for immediate deployment in wireless scanning applications.
Package contents include USB. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Wireless connectivity with Bluetooth and radio frequency support
- 68.9" (1750.06 mm) maximum scanning distance for extended range operation
- 1D and 2D barcode scanning capability with high-resolution imager
- IP67 and IP65 ratings for dust and water protection in industrial environments
- Rugged handheld design with 20kV air electrostatic discharge protection
- 3350 mAh Lithium Ion battery with 3.2-hour maximum recharge time
- Omni-directional area scan pattern with wide reading angles
- Operating temperature range from -4°F (-20°C) to 122°F (50°C)
- Ergonomic design with vibration, beep, and LED notification feedback
- USB and Serial host interface options for flexible connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PBT9600-SRRBK12US |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PBT9600 |
| Product Name | PowerScan PBT9600 SR Barcode Scanner kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional,Area |
| Scanner Range | Standard Range |
| Scanning Distance | 68.90" (1750.06 mm) |
| Cable Type Included | USB |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Features | Vibration,Beep,3GL,Notification LED,Ergonomic Design |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB,Serial |
| Power Description | |
| Power Supply Included | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 14.64 oz (415 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Manufacturing,Warehouse,Logistics,Component Tracking,Inventory,Sorting,Assembly Line,Picking,Industrial |
FAQ
What types of barcodes can this scanner read?
The Datalogic PowerScan PBT9600 SR reads both 1D linear barcodes and 2D matrix codes including DataMatrix, QR codes, and similar formats. The high-resolution imager captures barcodes with minimum element resolution of 10 mil (0.25 mm) for DataMatrix codes, supporting various barcode types used in industrial and logistics applications.
How does the wireless connectivity work?
This scanner uses both Bluetooth technology and radio frequency for wireless data transmission. After scanning barcodes, the device transmits data wirelessly to the base station, eliminating cable restrictions. The wireless design allows operators to move freely within range while maintaining reliable communication with the host system through USB or Serial interfaces.
What is the maximum scanning distance?
The PowerScan PBT9600 SR has a maximum scanning distance of 68.90 inches (1750.06 mm). This extended range allows operators to scan barcodes from greater distances without needing to approach each item closely, improving efficiency in warehouse, manufacturing, and logistics environments where items may be positioned at various heights or distances.
How durable is this scanner for industrial use?
This scanner is built for industrial durability with IP67 and IP65 ingress protection ratings, making it dust-tight and protected against temporary immersion in water. It features 20kV air electrostatic discharge protection, rugged construction to withstand drops and impacts, and operates across a wide temperature range from -4°F to 122°F, ensuring reliable performance in challenging environments.
What battery life can I expect?
The scanner includes a 3350 mAh Lithium Ion battery that provides extended operation between charges. The maximum recharge time is 3.2 hours, allowing for quick turnaround when power is depleted. The battery chemistry supports the wireless functionality and continuous scanning operations typical in shift-based industrial environments.
What environments is this scanner suitable for?
The PowerScan PBT9600 SR is designed for industrial applications including manufacturing facilities, warehouses, logistics operations, component tracking, inventory management, sorting systems, assembly lines, and picking operations. Its environmental specifications support operation in conditions with 0% to 95% humidity (non-condensing) and storage in temperatures from -40°F to 158°F.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
