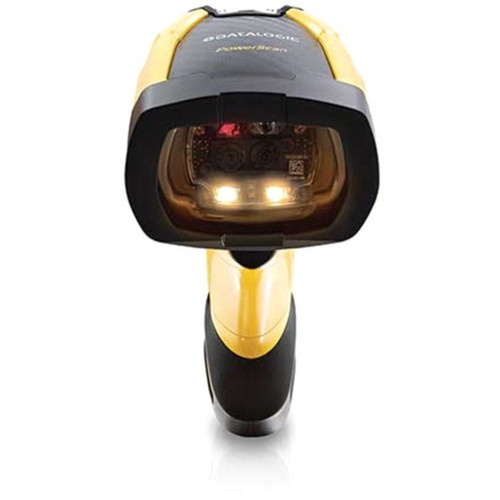

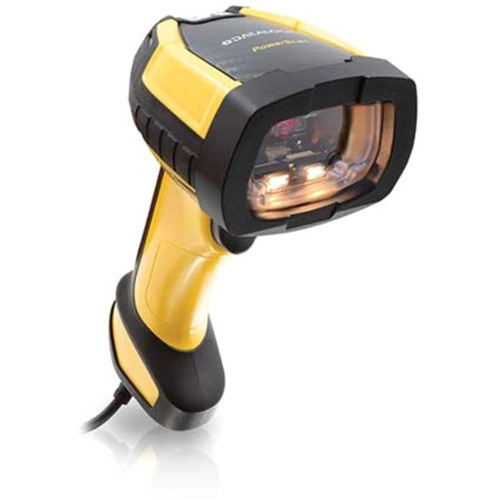

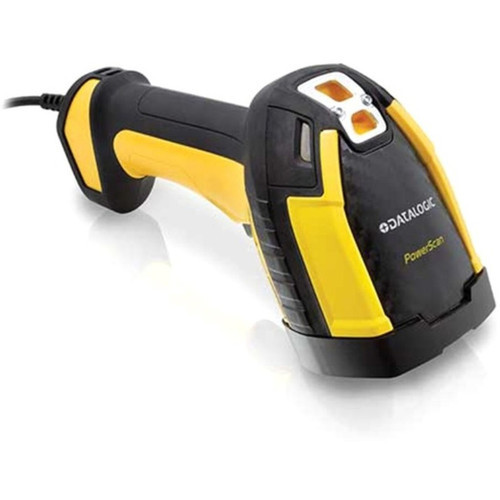

Datalogic PD9630-HP PowerScan Industrial Barcode Scanner - Cable Connectivity - 1D/2D Imager - IP67/IP65 Rugged - Manufacturing - Warehouse - Asset
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PD9630-HP utilizes advanced imager technology to automatically discriminate all standard 1D linear codes including GS1 DataBar, plus a wide array of 2D codes such as Data Matrix, QR Code, Aztec Code, MaxiCode, and postal codes from multiple regions. It also supports Digimarc digital watermarking for enhanced data capture capabilities.
Technical performance includes a 38° horizontal and 24° vertical field of view, with reading angles of 52° skew and pitch, plus full 360° roll capability. The scanner handles minimum print contrast of 15% and resolves DataMatrix codes from 4 mil (0.10 mm) to 10 mil (0.25 mm) element sizes, with similar resolution for PDF417 codes.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Form Factor, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PowerScan PD9630-HP delivers exceptional value through its combination of industrial durability, comprehensive scanning capabilities, and reliable cable connectivity. This scanner is designed to maintain operational integrity in environments where other devices might fail.
Industrial-Grade Protection
IP67 and IP65 ratings ensure protection against dust ingress and water immersion, while the drop specification confirms survival from 2.5-meter falls at room temperature and 2.0-meter drops at -20°C.
- IP67: Dust-tight and protected against immersion
- IP65: Protected against low-pressure water jets
- 50-drop durability testing protocol
Comprehensive Symbology Support
Captures virtually all common 1D and 2D barcode types used in industrial, retail, and logistics applications worldwide, including specialized postal codes and digital watermarking.
- Auto-discrimination of standard 1D codes
- 2D support for Data Matrix, QR, Aztec, MaxiCode
- Regional postal code compatibility
Deployment / Use Cases
The PD9630-HP is purpose-built for industrial and commercial environments where barcode scanning must occur reliably despite challenging physical conditions. Its rugged construction and environmental protections make it ideal for applications where equipment faces regular mechanical stress, dust exposure, or occasional liquid contact.
Primary deployment scenarios include manufacturing assembly lines where components are tracked through production processes, warehouse operations for inventory management and order picking, logistics facilities for package sorting and shipment verification, and asset tracking systems where equipment movement must be monitored across facilities. The scanner's comprehensive symbology support ensures compatibility with diverse labeling standards across these applications.
Manufacturing & Production
Track components through assembly processes, verify work-in-progress, and manage quality control documentation in factory environments.
Warehouse & Logistics
Support inventory management, order picking, receiving operations, and shipment verification in distribution centers and logistics hubs.
Physical Profile
The handheld form factor measures 7.50" (190.50 mm) in height, 3.10" (78.74 mm) in width, and 5.50" (139.70 mm) in length, with an approximate weight of 11.22 oz (318 g). This compact design supports comfortable single-handed operation during extended scanning sessions while maintaining the structural integrity needed for industrial use. The rugged construction ensures the scanner can withstand the physical demands of daily operation in challenging environments.
- Width
- 3.10" (78.74 mm)
- Height
- 7.50" (190.50 mm)
- Weight
- 11.22 oz (318 g)
- Length
- 5.50" (139.70 mm)
Highlights
- Industrial-grade barcode scanner with cable connectivity
- 1D and 2D scanning capability using advanced imager technology
- IP67 and IP65 ingress protection against dust and water
- Withstands 50 drops from 2.5 meters at room temperature
- Comprehensive barcode symbology support including Data Matrix, QR Code, and postal codes
- 38° horizontal and 24° vertical field of view
- 360° reading angle roll capability for flexible scanning positions
- Handheld form factor weighing approximately 11.22 oz (318 g)
- Maximum ambient light tolerance of 100,000 lux
- Designed for manufacturing, warehouse, logistics, and asset tracking applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-HP |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PD9630 |
| Product Name | PowerScan PD9630 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Codee Dot code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Digital Watermarking: Digimarc Barcodes (PD9630-HP and PD9630-DC) |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 4 mil (0.10 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Maximum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Height | 7.50" (190.50 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 11.22 oz (318 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Manufacturing,Asset Tracking,Warehouse,Logistics,Picking,Sorting,Inventory |
User Manual
FAQ
What types of barcodes can the Datalogic PD9630-HP scanner read?
The PD9630-HP reads both 1D and 2D barcodes. For 1D codes, it automatically discriminates all standard linear codes including GS1 DataBar. For 2D codes, it supports Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot code, and various postal codes including Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code, and Swedish Post. It also supports Digimarc digital watermarking barcodes.
How durable is the PD9630-HP scanner for industrial environments?
The PD9630-HP is built for extreme durability with IP67 and IP65 ingress protection ratings, making it dust-tight and protected against water immersion and low-pressure jets. It withstands 50 drops from 2.5 meters (8.2 feet) at 20°C (68°F) and 50 drops from 2.0 meters (6.6 feet) at -20°C (-4°F). The rugged construction ensures reliable operation in manufacturing, warehouse, and logistics environments where equipment faces regular physical stress.
What is the scanning range and field of view for this scanner?
The PD9630-HP features a standard range scanning capability with a 38° horizontal field of view and 24° vertical field of view. It offers flexible reading angles with 52° skew, 52° pitch, and full 360° roll capability, allowing operators to scan from various positions and orientations without compromising read rates.
What connectivity does the PD9630-HP scanner use?
This scanner uses cable connectivity for reliable data transmission and power delivery. The cable connection ensures consistent performance without wireless interference concerns, making it suitable for fixed workstation applications or environments where wireless signals might be problematic.
What are the physical dimensions and weight of the PD9630-HP?
The handheld scanner measures 7.50 inches (190.50 mm) in height, 3.10 inches (78.74 mm) in width, and 5.50 inches (139.70 mm) in length. It weighs approximately 11.22 ounces (318 grams), providing a balanced design that supports comfortable extended use while maintaining the structural integrity needed for industrial applications.
What applications is the PD9630-HP scanner best suited for?
The PD9630-HP is designed for demanding industrial and commercial applications including manufacturing operations for component tracking and quality control, warehouse environments for inventory management and order picking, logistics facilities for package sorting and shipment verification, and asset tracking systems for monitoring equipment movement. Its durability and comprehensive symbology support make it versatile across these use cases.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
