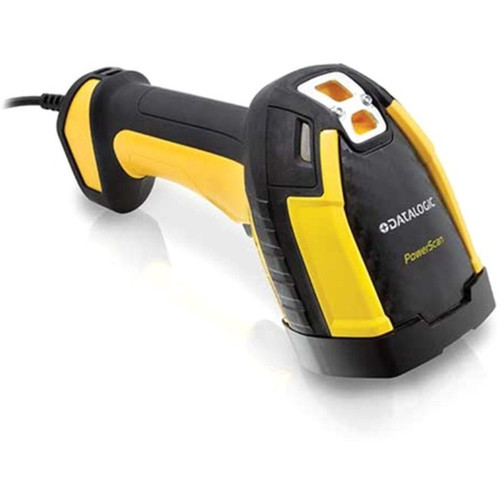

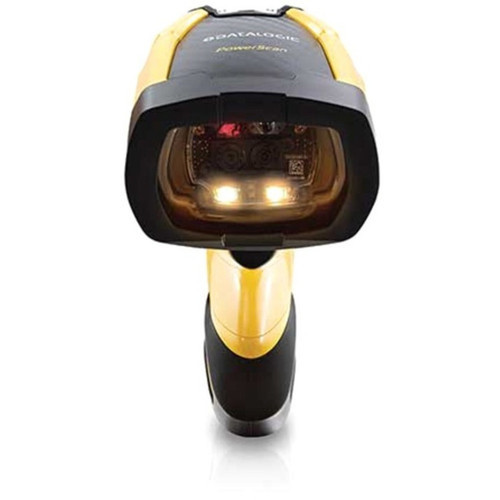

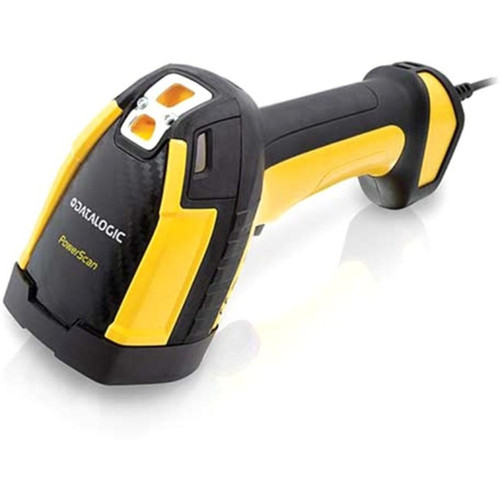

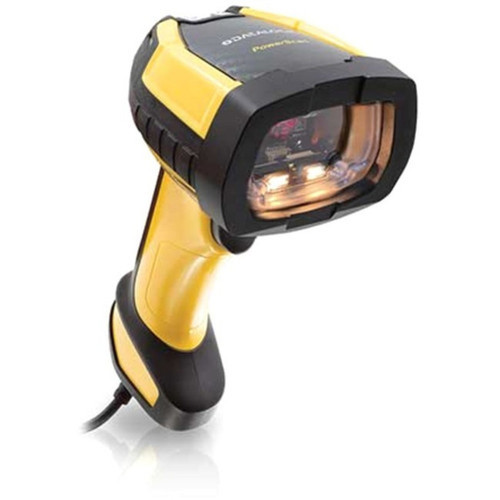

Datalogic PD9630-SR PowerScan Rugged Handheld Barcode Scanner - Cable Connectivity - 1D/2D Imager - Serial/USB - IP67/IP65
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PD9630-SR utilizes an advanced imager sensor for capturing both 1D linear barcodes and 2D matrix codes. It auto-discriminates all standard 1D symbologies including GS1 DataBar linear codes, while supporting comprehensive 2D formats such as Data Matrix, QR Code, Aztec Code, MaxiCode, and various postal codes. For specialized applications, certain models also support Digimarc digital watermarking technology.
The scanner operates with a standard range field of view measuring 38° horizontally and 24° vertically, with generous reading angles of 52° skew, 52° pitch, and full 360° roll capability. This optical design ensures reliable first-pass reads even when barcodes are presented at challenging angles. The device achieves a minimum print contrast of 15% and resolves DataMatrix elements down to 10 mil (0.25 mm), providing precise scanning of high-density or poorly printed codes.
Key Product Advantages
The PowerScan PD9630-SR combines industrial-grade durability with sophisticated scanning technology to deliver unmatched reliability in challenging work environments. Its dual IP67/IP65 certification provides complete protection against dust ingress and temporary water immersion, while the proven drop resistance ensures continued operation after accidental impacts that would disable conventional scanners.
Comprehensive Symbology Support
Reads virtually all common 1D and 2D barcode formats including specialized postal codes and, in select models, Digimarc digital watermarks for enhanced product authentication and information layers.
- Auto-discrimination of standard 1D codes
- Full 2D matrix code support
- Postal code compatibility worldwide
Industrial Environmental Tolerance
Engineered to perform reliably under extreme conditions with high ambient light tolerance up to 100,000 lux and tested drop survivability across temperature ranges from -20°C to 20°C.
- 100,000 lux maximum ambient light
- Temperature-tested drop specification
- Dust and water resistant construction
Deployment / Use Cases
The PD9630-SR is purpose-built for industrial and logistics environments where scanning equipment faces physical abuse and environmental challenges. Its cable connectivity via Serial or USB interfaces provides stable, direct connections to host systems without wireless latency or interference concerns, making it ideal for fixed workstation applications in manufacturing cells, receiving docks, and quality control stations.
In warehouse and distribution center operations, this scanner excels at inventory counting, order picking verification, and sortation system integration. The rugged design withstands repeated drops from conveyor belts or picking carts, while the comprehensive symbology support handles manufacturer barcodes, internal tracking labels, and shipping carrier codes without requiring multiple devices. For asset tracking applications in manufacturing facilities, the scanner reliably reads Direct Part Mark (DPM) codes on metal surfaces and components throughout the production lifecycle.
Manufacturing & Production
Track components through assembly lines, verify work-in-process, and manage tool calibration schedules with a scanner that survives factory floor conditions.
- Work-in-process tracking
- Direct part mark reading
- Tool management systems
Warehouse & Logistics
Execute receiving, put-away, picking, packing, and shipping operations with a durable scanner that maintains accuracy through shifts of continuous use.
- Order fulfillment verification
- Inventory cycle counting
- Cross-docking operations
Physical Profile
The handheld form factor measures 7.50" in height, 3.10" in width, and 5.50" in length (190.50 mm x 78.74 mm x 139.70 mm), creating an ergonomic profile that fits comfortably in hand during extended scanning sessions. At approximately 11.22 ounces (318 grams), the scanner provides substantial feel without excessive weight, reducing operator fatigue. The ruggedized housing incorporates impact-resistant materials and sealed seams that maintain the IP67/IP65 ratings while providing secure grip surfaces in various environmental conditions.
- Width
- 3.10" (78.74 mm)
- Height
- 7.50" (190.50 mm)
- Weight
- 11.22 oz (318 g)
- Length
- 5.50" (139.70 mm)
Highlights
- Rugged handheld barcode scanner with IP67/IP65 dust and water resistance
- 1D and 2D scanning capability using advanced imager technology
- Cable connectivity with Serial and USB host interface options
- Withstands 50 drops from 2.5 meters at room temperature
- Reads standard 1D codes plus Data Matrix, QR Code, and other 2D symbologies
- 38° horizontal and 24° vertical field of view for reliable scanning
- 360° roll reading angle accommodates any scanner orientation
- Tolerates ambient light up to 100,000 lux for outdoor/ bright environment use
- Compact dimensions: 7.50" H x 3.10" W x 5.50" L (190.50 mm x 78.74 mm x 139.70 mm)
- Ideal for manufacturing, asset tracking, warehouse, logistics, and picking applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-SR |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PD9630 |
| Product Name | PowerScan PD9630 |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Codee Dot code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Digital Watermarking: Digimarc Barcodes (PD9630-HP and PD9630-DC) |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F |
| Minimum Print Contrast | 15% |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | Serial,USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Height | 7.50" (190.50 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 11.22 oz (318 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Manufacturing,Asset Tracking,Warehouse,Logistics,Picking,Sorting,Inventory |
User Manual
FAQ
What types of barcodes can the Datalogic PowerScan PD9630-SR read?
The PD9630-SR reads both 1D linear barcodes and 2D matrix codes. It auto-discriminates all standard 1D symbologies including GS1 DataBar linear codes, while supporting comprehensive 2D formats such as Data Matrix, QR Code, Aztec Code, MaxiCode, Micro QR Code, and various international postal codes. Certain models in the PD9630 series also support Digimarc digital watermarking technology for enhanced product authentication.
How durable is this barcode scanner for industrial environments?
The PowerScan PD9630-SR is engineered for extreme durability with IP67 and IP65 ingress protection ratings, making it dust-tight and resistant to temporary water immersion. It withstands 50 drops from 2.5 meters (8.2 feet) at 20°C (68°F) and 50 drops from 2.0 meters (6.6 feet) at -20°C (-4°F). The rugged construction ensures reliable operation in manufacturing, warehouse, and logistics environments where equipment faces physical impacts and harsh conditions.
What connectivity options does this scanner support?
This scanner features cable connectivity technology with both Serial and USB host interfaces. The cable connection provides stable, direct communication with host systems without wireless latency or interference concerns, making it ideal for fixed workstation applications in industrial settings where reliable data transmission is critical.
Can this scanner read barcodes in bright lighting conditions?
Yes, the PD9630-SR tolerates maximum ambient light up to 100,000 lux, allowing it to maintain scanning accuracy in brightly lit warehouse environments, outdoor loading docks, or areas with direct sunlight. This high light tolerance ensures reliable performance across various industrial lighting conditions without requiring shading or special positioning.
What are the physical dimensions and weight of this handheld scanner?
The scanner measures 7.50 inches in height, 3.10 inches in width, and 5.50 inches in length (190.50 mm x 78.74 mm x 139.70 mm). It weighs approximately 11.22 ounces (318 grams), creating an ergonomic profile that fits comfortably in hand during extended use while providing sufficient heft for secure handling in industrial environments.
What applications is the PowerScan PD9630-SR best suited for?
This scanner excels in demanding industrial applications including manufacturing operations for component tracking and quality control, asset management systems for equipment monitoring, warehouse and logistics for inventory management and order fulfillment, picking operations for accuracy verification, sortation systems for package routing, and inventory counting across various industrial and commercial environments where durability and reliability are essential.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
