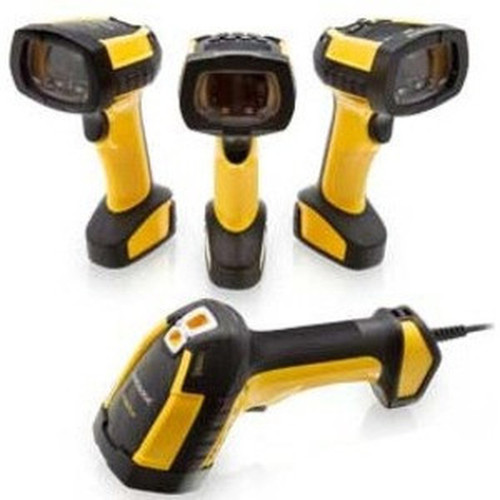

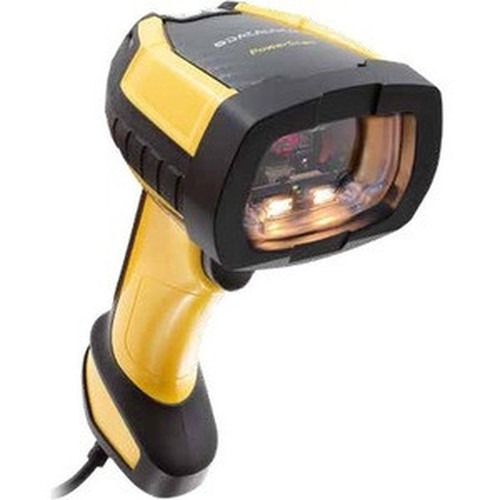

Datalogic PD9630-DC PowerScan Rugged Handheld Barcode Scanner - 1D/2D Cable Connectivity - Serial - USB - IP67/IP65 - Manufacturing - Warehouse
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PD9630-DC scanner features a 50° horizontal and 33° vertical field of view, with generous reading angles of 52° skew and pitch plus 360° roll capability. This optical design allows operators to capture barcodes from multiple orientations without precise alignment, speeding up scanning workflows in fast-paced environments.
Technical resilience is built into every component. The scanner operates in ambient light up to 100,000 lux and maintains reliable scanning with print contrast as low as 15%. Its DataMatrix resolution reaches 10 mil (0.25 mm), enabling accurate reading of high-density 2D codes commonly used in electronics manufacturing and pharmaceutical tracking.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PowerScan PD9630-DC delivers operational advantages through its combination of rugged construction, versatile scanning capabilities, and reliable connectivity. Its industrial-grade design ensures continuous performance where other scanners might fail.
Industrial Durability
Withstands repeated 2.5-meter drops at room temperature and 2.0-meter drops at -20°C, plus IP67/IP65 ratings for dust and water resistance.
- 50-drop durability testing
- Temperature-tolerant construction
- Sealed against particulates and liquids
Comprehensive Symbology Support
Reads all standard 1D codes including GS1 DataBar plus 2D codes like Data Matrix, QR Code, Aztec Code, and various postal codes.
- Auto-discrimination of 1D codes
- Broad 2D code compatibility
- Postal code recognition
Flexible Host Connectivity
Cable connectivity with both Serial and USB interfaces provides compatibility with legacy and modern host systems.
- Serial interface for industrial systems
- USB for contemporary POS and PC systems
- Direct cable connection eliminates wireless complexity
Deployment / Use Cases
The PD9630-DC scanner is optimized for environments where reliability and durability are non-negotiable. Its combination of rugged construction, comprehensive code support, and flexible connectivity makes it suitable for numerous industrial and commercial applications.
In manufacturing facilities, the scanner tracks components through production lines, captures serial numbers on finished goods, and manages work-in-progress inventory. The IP67/IP65 rating protects against dust, moisture, and occasional splashes common in factory environments. For warehouse operations, the scanner accelerates receiving, picking, and shipping processes while withstanding the physical demands of material handling. The 360° roll reading angle allows operators to scan packages from any orientation without repositioning items.
Manufacturing and Assembly
Track components, capture serial numbers, and manage production inventory on factory floors with drop-resistant construction that survives accidental impacts.
Warehouse Logistics
Accelerate receiving, picking, packing, and shipping operations with reliable scanning that works in various lighting conditions and package orientations.
Physical Profile
The handheld form factor measures 7.50 inches in height, 3.10 inches in width, and 5.50 inches in length, with a weight of approximately 11.22 ounces. This compact, balanced design fits comfortably in hand for extended scanning sessions while providing sufficient surface area for secure grip. The scanner's proportions accommodate internal components for durability testing and ingress protection without becoming bulky or unwieldy.
- Width
- 3.10" (78.74 mm)
- Height
- 7.50" (190.50 mm)
- Weight
- 11.22 oz (318 g)
- Length
- 5.50" (139.70 mm)
Highlights
- Rugged handheld barcode scanner with IP67/IP65 ingress protection
- 1D and 2D scanning capability with comprehensive symbology support
- Cable connectivity with both Serial and USB host interfaces
- Withstands 50 drops from 2.5 meters at room temperature
- Operates in ambient light up to 100,000 lux
- Standard range scanning with 50° horizontal field of view
- 360° roll reading angle for flexible scanning orientation
- 10 mil (0.25 mm) DataMatrix resolution for high-density codes
- Designed for manufacturing, asset tracking, and warehouse applications
- Compact form factor: 7.50" H x 3.10" W x 5.50" L
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-DC |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PD9630 |
| Product Name | PowerScan PD9630 |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Codee Dot code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Digital Watermarking: Digimarc Barcodes (PD9630-HP and PD9630-DC) |
| Scanner Range | Standard Range |
| Field of View (Horizontal) | 50° |
| Field of View (Vertical) | 33° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F |
| Minimum Print Contrast | 15% |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | Serial,USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Height | 7.50" (190.50 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 11.22 oz (318 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Manufacturing,Asset Tracking,Warehouse,Logistics,Picking,Sorting,Inventory |
User Manual
FAQ
What types of barcodes can the Datalogic PD9630-DC scanner read?
The PD9630-DC scanner reads both 1D and 2D barcodes. For 1D codes, it auto-discriminates all standard linear codes including GS1 DataBar. For 2D codes, it supports Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot code, and various postal codes including Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC), and Swedish Post. Certain models also support Digimarc Barcodes digital watermarking.
How durable is the PD9630-DC scanner for industrial environments?
The PD9630-DC is built for extreme durability with IP67 and IP65 ingress protection ratings, meaning it's dust-tight and protected against temporary immersion and water jets. It withstands 50 drops from 2.5 meters (8.2 feet) at 20°C (68°F) and 50 drops from 2.0 meters (6.6 feet) at -20°C (-4°F). This drop specification ensures reliable operation in manufacturing, warehouse, and logistics environments where accidental impacts are common.
What connectivity options does this scanner offer?
The PD9630-DC features cable connectivity with both Serial and USB host interfaces. The Serial interface provides compatibility with legacy industrial systems and point-of-sale equipment, while the USB interface works with modern computers and retail systems. This dual-interface approach ensures the scanner can integrate with various host environments without requiring additional adapters or configuration modules.
What are the scanning performance specifications?
The scanner offers standard range scanning with a 50° horizontal field of view and 33° vertical field of view. It has reading angles of 52° skew, 52° pitch, and 360° roll, allowing barcode capture from multiple orientations. The maximum element resolution for DataMatrix codes is 10 mil (0.25 mm), and it requires minimum print contrast of 15%. The scanner operates in ambient light up to 100,000 lux, making it suitable for both indoor and outdoor applications.
What applications is this scanner designed for?
The PD9630-DC is optimized for manufacturing, asset tracking, warehouse operations, logistics, picking, sorting, and inventory management. Its rugged construction handles factory floor conditions, while its comprehensive code support works with various labeling systems. The scanner accelerates material tracking through production lines, improves accuracy in warehouse operations, and provides reliable data capture in demanding commercial environments.
What are the physical dimensions and weight of the scanner?
The handheld scanner measures 7.50 inches (190.50 mm) in height, 3.10 inches (78.74 mm) in width, and 5.50 inches (139.70 mm) in length. It weighs approximately 11.22 ounces (318 grams). This compact, balanced design provides comfortable handling for extended use while incorporating the durability features needed for industrial applications.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
