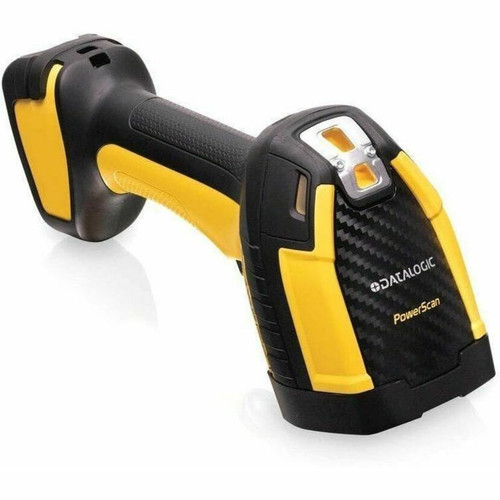

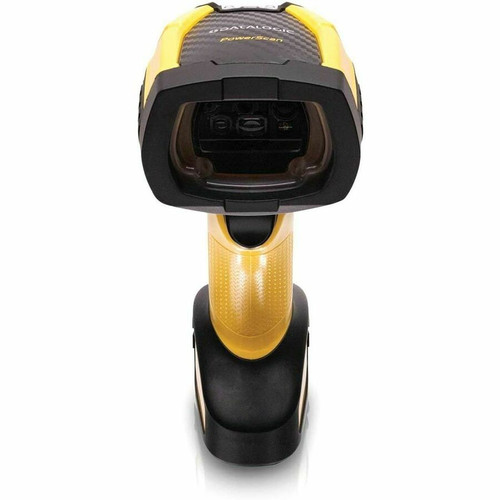

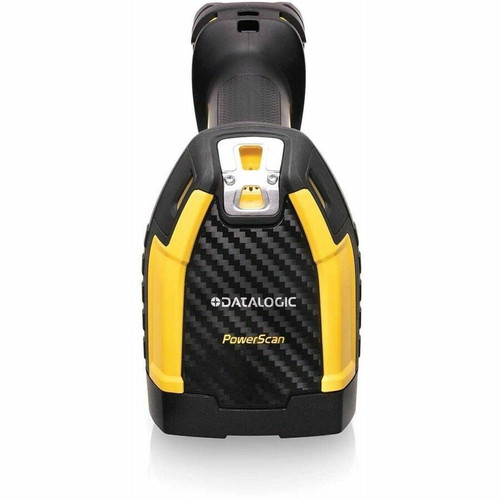

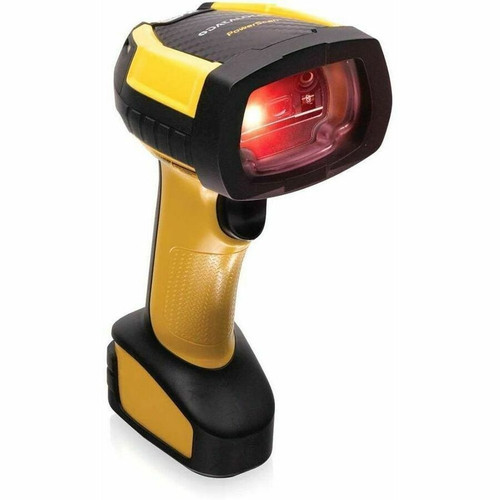

Datalogic POWERSCAN PD9630 Handheld Bar Code Scanner - Wireless Connectivity - 1D, 2D - LED - Imager - Omni-directional - Bluetooth, - (PD9630-DPXK1)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Connectivity Technology: Wireless
Scanning Capability: 1D,2D
Light Source: LED
Image Sensor Type: Imager
Scan Mode: Trigger
Scan Pattern: Omni-directional
Display Screen: Yes
Reading Angle (Skew): 52°
Reading Angle (Pitch): 52°
Reading Angle (Roll): 360°
Maximum Ambient Light: 100000 lux
Minimum Print Contrast: 15%
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Direct Part Marking (DPM) Decoding: Yes
Image Sensor Resolution: 1280 x 800
Illumination Type: LED
Illumination Color: White
Air Electrostatic Discharge (+/-): 20kV
Features: Beep,Notification LED,3GL,Vibration
Bluetooth: Yes
Radio Frequency: Yes
Host Interface: Ethernet,USB,Serial
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 3350 mAh
Maximum Battery Recharge Time: 3.20 Hour
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 0% to 95%
Form Factor: Handheld
Rugged: Yes
Color Family: Dual Color
Product Color: Black,Yellow
Height: 7.80" (198 mm)
Width: 3.11" (79 mm)
Length: 5.51" (140 mm)
Weight (Approximate): 11.15 oz (316.20 g)
Ingress Protection (IP) Rating: IP65,IP67
Application/Usage: Industrial,Inventory,Component Tracking,Retail
- Laser-free design provides high-performance scanning without the risk of eye injury
- Increase productivity and performance by excluding the cable
- With Bluetooth technology, you can scan barcodes and then transmit data from the base
[custom-specifications]
| Specifications | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-DPXK1 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PD9630-DPX |
| Product Name | POWERSCAN PD9630 Handheld Bar Code Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Display Screen | Yes |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Direct Part Marking (DPM) Decoding | Yes |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Features | Beep,Notification LED,3GL,Vibration |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | Ethernet,USB,Serial |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Height | 7.80" (198 mm) |
| Width | 3.11" (79 mm) |
| Length | 5.51" (140 mm) |
| Weight (Approximate) | 11.15 oz (316.20 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Industrial,Inventory,Component Tracking,Retail |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
