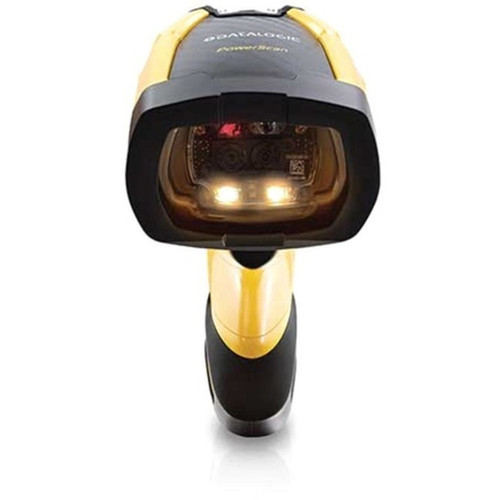

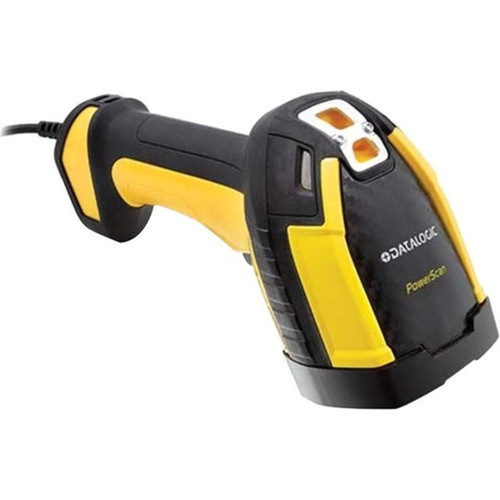

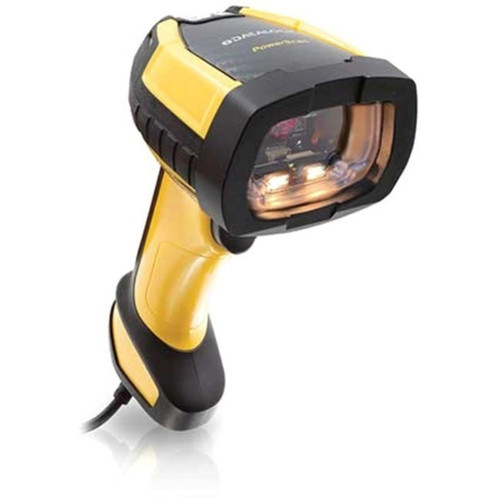

Datalogic PD9630-SRK1 PowerScan PD9630-SR Barcode Scanner Kit - 1D/2D Omni-Directional Imager - USB Cable - Yellow/Black - IP67/IP65 Rugged
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner employs advanced imaging technology with an LED light source and imager sensor that achieves a maximum element resolution of 10 mil (0.25 mm) for DataMatrix codes. The scanning system operates effectively with minimum print contrast of just 15% and handles ambient light levels up to 100,000 lux, ensuring reliable performance in brightly lit environments.
The field of view measures 38° horizontally and 24° vertically, with reading angles of 52° skew, 52° pitch, and full 360° roll capability. This comprehensive angular coverage allows operators to scan codes from virtually any orientation without repositioning the scanner or target items.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PD9630-SR combines robust construction with sophisticated scanning technology to deliver reliable performance in challenging industrial settings. Its comprehensive barcode symbology support includes all standard 1D codes plus extensive 2D formats from Aztec and DataMatrix to various postal codes and digital watermarking capabilities.
Industrial Durability
Engineered to withstand 50 drops from 2.5 meters at room temperature and 2.0 meters at freezing temperatures, this scanner maintains operational integrity through accidental impacts common in warehouse and manufacturing environments.
- IP67/IP65 rated for dust and water resistance
- Ruggedized construction for heavy use
- Tested to military-grade drop standards
Comprehensive Code Support
Automatically discriminates between numerous 1D and 2D barcode types without manual configuration changes, streamlining operations across diverse scanning requirements.
- Supports GS1 DataBar linear codes
- Reads Aztec, DataMatrix, QR, and Micro QR codes
- Processes multiple international postal codes
Deployment / Use Cases
The wired USB connectivity makes this scanner ideal for fixed workstation applications where reliable, continuous operation is essential. Retail point-of-sale counters, manufacturing quality control stations, and warehouse receiving docks benefit from the consistent performance of cable-connected scanning without battery concerns or wireless interference.
Industrial environments including manufacturing floors, logistics centers, and inventory management systems utilize the PD9630-SR for asset tracking, picking and sorting operations, and inventory control. The high-visibility yellow housing helps prevent loss in busy work areas while the rugged construction ensures longevity despite frequent handling and potential impacts.
Warehouse & Logistics
Optimized for high-volume scanning in distribution centers where rapid, accurate barcode reading drives operational efficiency and inventory accuracy.
Manufacturing & Asset Tracking
Provides reliable scanning on production lines and in maintenance operations where equipment tracking and quality control documentation require consistent barcode capture.
Physical Profile
The handheld form factor measures 7.50" (190.50 mm) in height, 3.10" (78.74 mm) in width, and 5.50" (139.70 mm) in length, providing a comfortable grip for extended use. The dual-color yellow and black design offers both high visibility and professional appearance, while the 11.22 oz (318 g) weight balances substantial feel with operator comfort during shift-long scanning sessions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.50" (190.50 mm), 3.10" (78.74 mm), 11.22 oz (318 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.10" (78.74 mm)
- Height
- 7.50" (190.50 mm)
- Weight
- 11.22 oz (318 g)
- Length
- 5.50" (139.70 mm)
Highlights
- Omni-directional imager scans 1D and 2D barcodes from multiple angles
- USB cable connectivity ensures reliable, continuous operation
- IP67/IP65 rated for dust and water resistance in harsh environments
- Survives 50 drops from 2.5 meters at room temperature
- Bright yellow/black housing for high visibility in busy areas
- Handheld form factor with comfortable grip for extended use
- Supports extensive barcode symbologies including postal codes
- Operates in ambient light up to 100,000 lux
- 10 mil maximum resolution for precise DataMatrix reading
- Standard range scanning suitable for most industrial applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PD9630-SRK1 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PD9630 |
| Product Name | PowerScan PD9630-SR Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Codee Dot code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Digital Watermarking: Digimarc Barcodes (PD9630-HP and PD9630-DC) |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F |
| Minimum Print Contrast | 15% |
| Maximum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Yellow,Black |
| Height | 7.50" (190.50 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 11.22 oz (318 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP67,IP65 |
| Application/Usage | Manufacturing,Asset Tracking,Warehouse,Logistics,Picking,Sorting,Inventory,Industrial |
User Manual
FAQ
What types of barcodes can this scanner read?
The Datalogic PD9630-SR reads both 1D and 2D barcodes, including all standard 1D linear codes with GS1 DataBar support, plus 2D formats like Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, and various international postal codes. It also supports digital watermarking through Digimarc Barcodes for specialized applications.
How durable is this barcode scanner for industrial use?
This scanner is built for industrial environments with IP67/IP65 ingress protection against dust and water, and it withstands 50 drops from 2.5 meters at room temperature or 2.0 meters at freezing temperatures. The rugged construction ensures reliable operation in manufacturing, warehouse, and logistics settings where equipment faces frequent handling and potential impacts.
What connectivity options does this scanner offer?
The PD9630-SR features cable connectivity with a USB host interface, providing stable, continuous power and data transmission without battery concerns or wireless interference. This wired configuration makes it ideal for fixed workstation applications in retail, manufacturing, and warehouse environments where reliable scanning is critical.
What are the scanning range and field of view specifications?
This standard range scanner offers a 38° horizontal field of view and 24° vertical field of view, with reading angles of 52° skew, 52° pitch, and 360° roll. The omni-directional scan pattern captures barcodes from multiple orientations without precise alignment, while the system operates effectively with minimum print contrast of 15% and handles ambient light up to 100,000 lux.
What applications is this scanner best suited for?
The PD9630-SR excels in manufacturing, asset tracking, warehouse operations, logistics, picking, sorting, inventory management, and industrial environments. Its rugged design and reliable performance make it suitable for point-of-sale counters, quality control stations, receiving docks, and production lines where accurate barcode scanning drives operational efficiency.
What are the physical dimensions and weight of this scanner?
The handheld scanner measures 7.50 inches (190.50 mm) in height, 3.10 inches (78.74 mm) in width, and 5.50 inches (139.70 mm) in length, with an approximate weight of 11.22 ounces (318 grams). The dual-color yellow and black housing provides high visibility in busy work areas while maintaining a professional appearance for commercial and industrial settings.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
