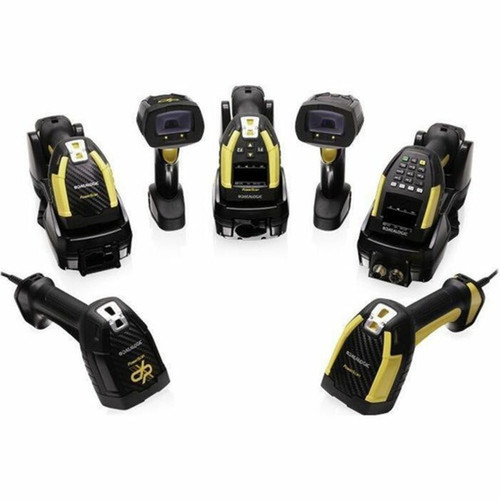

Datalogic PM9600-DKHP910RK20 PowerScan PM9600-HP Wireless Barcode Scanner Kit - 1D/2D Imager - 95. 6" Scan Distance - IP65/IP67 Rugged Handheld
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PowerScan PM9600-HP utilizes a high-resolution 1280 x 800 pixel imager sensor with LED illumination for reliable barcode capture in various lighting conditions. The scanner supports an extensive range of barcode symbologies including standard 1D codes, GS1 DataBar, QR Code, Data Matrix, PDF417, and Digimarc digital watermarks.
Advanced scanning features include omni-directional and area scan patterns with a 38° horizontal and 24° vertical field of view. The device maintains accurate reading at angles up to 52° skew and pitch, with full 360° roll capability for flexible positioning during scanning operations.
The scanner's performance specifications include 10 mil minimum element resolution for DataMatrix and PDF417 codes, 15% minimum print contrast, and operation in ambient light up to 100,000 lux. These technical capabilities ensure reliable scanning of challenging barcodes in diverse industrial settings.
Key Product Advantages
The PM9600-HP combines long-range scanning capability with wireless freedom and industrial durability. The 95.6-inch scanning distance allows operators to scan barcodes from a safe distance in warehouse racking or manufacturing environments, reducing physical strain and improving safety.
Wireless Mobility
Bluetooth and RF wireless connectivity enable cord-free operation with reliable data transmission to host systems. The included cradle provides convenient charging and data synchronization without cable connections.
- Bluetooth technology
- Radio frequency support
- Serial host interface
- Cradle charging system
Industrial Durability
IP65/IP67 rating ensures protection against water jets and dust ingress, while the drop-tested design withstands 50 drops from 2.5 meters. The rugged construction maintains reliable operation in challenging environments.
- IP65/IP67 certified
- 50-drop tested
- Water resistant
- Dust resistant
Comprehensive Kit
The complete kit includes scanner, charging cradle, power supply, and cables for immediate deployment. The serial interface cable supports direct connection to legacy systems when wireless operation isn't required.
- Scanner with battery

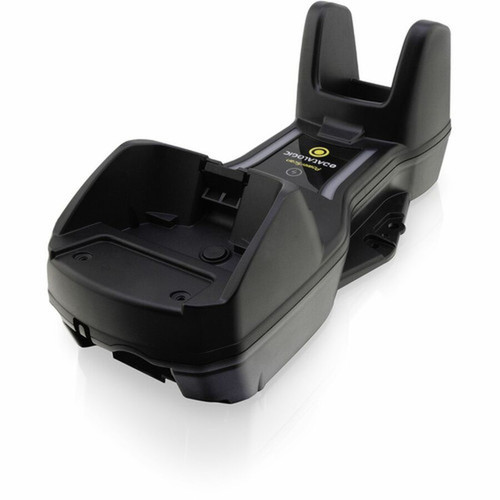

- BC9630-910 cradle
- Power supply
- Serial cable
Deployment / Use Cases
The PowerScan PM9600-HP is engineered for industrial and commercial applications where reliable barcode scanning drives operational efficiency. The wireless design and long scanning range make it ideal for warehouse inventory management, manufacturing component tracking, and retail stock control.
In warehouse environments, the scanner enables accurate picking and sorting operations with its omni-directional scanning capability. The rugged construction withstands drops from loading docks and exposure to dust in storage facilities, ensuring continuous operation in demanding conditions.
Warehouse & Logistics
Supports inventory management, order picking, and shipment verification with wireless mobility and long-range scanning. The ergonomic design reduces operator fatigue during extended scanning sessions.
- Inventory management
- Order picking
- Shipment verification
- Pallet tracking
Manufacturing & Assembly
Enables component tracking, work-in-process monitoring, and quality control with precise barcode capture. The scanner reads challenging barcodes on metal surfaces and in low-light assembly areas.
- Component tracking
- Work-in-process
- Quality control
- Serial number capture
Physical Profile
The handheld scanner measures 7.80" × 3.10" × 5.50" (198.12 × 78.74 × 139.70 mm) with a weight of 14.99 ounces (425 grams). The dual-color black and yellow design provides high visibility in industrial settings while the ergonomic shape ensures comfortable grip during extended use.
The device features 16 programmable keys for custom function assignment and an integrated display screen for status feedback. The notification LED and vibration alerts provide multi-modal feedback to operators in noisy environments where audible beeps may be insufficient.
- Width
- 3.10" (78.74 mm)
- Height
- 7.80" (198.12 mm)
- Weight
- 14.99 oz (425 g)
- Length
- 5.50" (139.70 mm)
What's in the Box
The PowerScan PM9600-HP Barcode Scanner Kit includes all components necessary for immediate deployment. Each kit contains the complete solution for wireless barcode scanning operations.
Highlights
- Wireless barcode scanner with 95.6" scanning distance for long-range operation
- 1D and 2D imager captures QR codes, Data Matrix, PDF417, and standard barcodes
- IP65/IP67-rated rugged design resists water, dust, and repeated drops
- Bluetooth and RF wireless connectivity for cord-free mobility
- 3350 mAh Lithium Ion battery with 3.2-hour recharge time
- Ergonomic handheld design with 16 programmable keys and display screen
- Omni-directional scanning with 38° horizontal field of view
- Operating temperature range from -4°F to 122°F for harsh environments
- Complete kit includes scanner, cradle, power supply, and cables
- 3-year limited warranty with industrial-grade reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-DKHP910RK20 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600-HP |
| Product Name | PowerScan PM9600-HP Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites Digital Watermarking: Digimarc Barcodes (HP and DC models) |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area,Omni-directional |
| Scanner Range | Short Range |
| Scanning Distance | 95.60" (2428.24 mm) |
| Display Screen | Yes |
| Number of Keys | 16 |
| Cable Type Included | Serial |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 ° |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 10 mil (0.25 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Features | Beep,3GL,Vibration,Notification LED,Ergonomic Design |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | Serial |
| Power Description | |
| Power Supply Included | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Black,Yellow |
| Durability | Water Resistant,Dust Resistant |
| Height | 7.80" (198.12 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Weight (Approximate) | 14.99 oz (425 g) |
| Miscellaneous | |
| Package Contents | 1 x PowerScan PM9600-HP Barcode Scanner 1 x Cradle BC9630-910 1 x Cable CAB-548 1 x Power Supply 8-0935 1 x Power Cord 6003-0941 |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Industrial,Warehouse,Manufacturing,Logistics,Retail,Inventory,Assembly Line,Component Tracking,Picking,Sorting |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),China Restriction of Hazardous Substances (China RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the maximum scanning distance of the PM9600-HP barcode scanner?
The Datalogic PowerScan PM9600-HP achieves a maximum scanning distance of 95.60 inches (2428.24 mm). This long-range capability allows operators to scan barcodes from a safe distance in warehouse racking, manufacturing lines, or retail environments without needing to approach closely to each item.
What types of barcodes can this scanner read?
The scanner reads both 1D and 2D barcode symbologies including standard linear codes, GS1 DataBar, QR Code, Data Matrix, Aztec Code, PDF417, MaxiCode, and Digimarc digital watermarks. It automatically discriminates between supported symbologies for efficient scanning of mixed barcode types in industrial applications.
Is the PM9600-HP scanner suitable for outdoor or harsh environments?
Yes, the scanner features IP65 and IP67 ingress protection ratings, making it resistant to water jets and dust ingress. It withstands 50 drops from 2.5 meters and operates in temperatures from -4°F to 122°F. These durability features ensure reliable performance in warehouse, manufacturing, and outdoor logistics environments.
What wireless connectivity options does this scanner support?
The PM9600-HP supports both Bluetooth and radio frequency wireless connectivity for cord-free operation. The included charging cradle maintains connection to host systems while providing convenient battery charging. The scanner also includes a serial interface cable for direct wired connection when wireless operation isn't required.
How long does the battery last and what is the recharge time?
The scanner includes a 3350 mAh Lithium Ion battery that provides extended operation between charges. The maximum battery recharge time is 3.2 hours when using the included power supply and charging cradle. The cradle design allows continuous operation by charging the scanner between uses.
What is included in the PM9600-HP scanner kit?
The complete kit includes the PowerScan PM9600-HP barcode scanner, BC9630-910 charging cradle, CAB-548 serial cable, 8-0935 power supply, and 6003-0941 power cord. This comprehensive package provides everything needed for immediate deployment without requiring additional accessories or components.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
