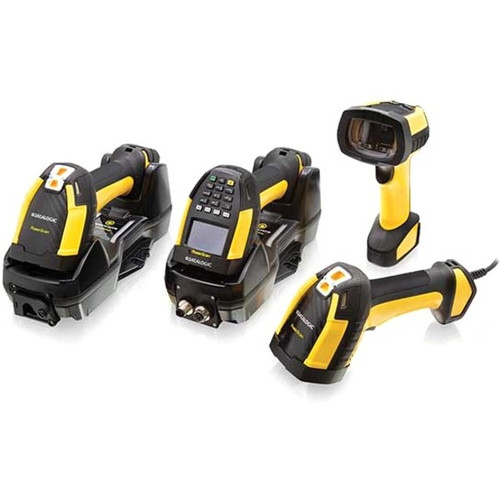

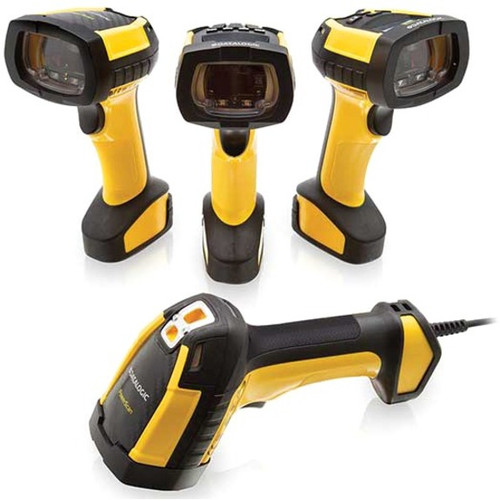

Datalogic PM9600-SR433RBK10 PowerScan PM9600-SR Wireless Barcode Scanner - 1D/2D Imager - USB - IP65/IP67 - Black/Yellow
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The PM9600-SR utilizes advanced imager technology to automatically discriminate between standard 1D linear codes including GS1 DataBar™ linear codes and comprehensive 2D symbologies. The scanner supports Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot code, multiple postal codes, and stacked codes including EAN/JAN Composites, GS1 DataBar Composites, PDF417, and UPC A/E Composites.
The scanner operates effectively in challenging lighting conditions with maximum ambient light tolerance of 100,000 lux and minimum print contrast requirement of just 15%. Flexible reading angles include 52° skew, 52° pitch, and 360° roll capabilities for versatile scanning orientations.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Radio Frequency, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PowerScan PM9600-SR delivers enterprise-level scanning performance with industrial-grade construction designed to withstand rigorous daily use in challenging environments.
Rugged Durability
Withstands 50 drops from 2.5 meters at room temperature and 50 drops from 2.0 meters at -20°C, ensuring reliable operation in warehouse and industrial settings.
- IP65/IP67 rated
- Extensive drop testing
- Temperature resilient
Comprehensive Code Support
Captures virtually all modern barcode symbologies including specialized postal codes and stacked composite codes for maximum compatibility across global applications.
- 1D/2D scanning
- Postal code support
- Composite code reading
Flexible Connectivity
Wireless operation with USB host interface provides deployment flexibility for mobile and fixed scanning applications across retail, logistics, and inventory environments.
- Wireless technology
- USB interface
- RF capability
Deployment / Use Cases
The PM9600-SR is engineered for professional scanning applications where reliability, durability, and comprehensive code support are essential. Its rugged construction and versatile scanning capabilities make it suitable for demanding operational environments.
In warehouse and logistics settings, the scanner handles inventory management, shipping verification, and receiving operations with its robust drop specifications and comprehensive code support. Retail environments benefit from its flexible reading angles and wireless connectivity for point-of-sale and inventory counting applications. Manufacturing facilities utilize the device for work-in-progress tracking, quality control verification, and parts identification with its industrial-grade durability and environmental protection ratings.
This section brings together practical product details such as Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Radio Frequency, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The handheld form factor measures 7.80" (198.12 mm) in height, 3.10" (78.74 mm) in width, and 5.50" (139.70 mm) in length, providing an ergonomic design suitable for extended use. The distinctive black and yellow color scheme offers high visibility in industrial environments while the IP65/IP67 ratings ensure protection against dust ingress and water immersion for reliable operation in challenging conditions.
- Width
- 3.10" (78.74 mm)
- Height
- 7.80" (198.12 mm)
- Length
- 5.50" (139.70 mm)
Highlights
- Wireless 1D/2D barcode scanner with imager technology
- Comprehensive code support including postal and stacked codes
- IP65/IP67 ingress protection for dust and water resistance
- Rugged construction withstands 50 drops from 2.5 meters
- USB host interface with radio frequency capability
- Flexible reading angles: 52° skew, 52° pitch, 360° roll
- High ambient light tolerance up to 100,000 lux
- Handheld form factor with black and yellow color scheme
- Display screen for operational feedback
- Industrial, warehouse, retail, and logistics applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-SR433RBK10 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600-SR |
| Product Name | PowerScan PM9600-SR Barcode Scanner |
| Product Type | Barcode Scanner Kit |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code Postal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Display Screen | Yes |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification | Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °F |
| Minimum Print Contrast | 15% |
| Network & Communication | |
| Radio Frequency | Yes |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Black,Yellow |
| Height | 7.80" (198.12 mm) |
| Width | 3.10" (78.74 mm) |
| Length | 5.50" (139.70 mm) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65,IP67 |
| Application/Usage | Industrial,Warehouse,Manufacturing,Logistics,Retail,Inventory |
FAQ
What types of barcodes can the Datalogic PM9600-SR scanner read?
The PM9600-SR reads both 1D and 2D barcode symbologies. It automatically discriminates all standard 1D linear codes including GS1 DataBar™ linear codes, and supports comprehensive 2D codes including Aztec Code, Data Matrix, MaxiCode, QR Code, and specialized postal codes from multiple countries. The scanner also handles stacked codes like PDF417, MicroPDF417, and various composite codes for complete scanning versatility across different applications and regions.
How durable is this barcode scanner for industrial environments?
The PM9600-SR is engineered for industrial durability with IP65/IP67 ingress protection ratings that protect against dust ingress and temporary water immersion. It withstands 50 drops from 2.5 meters at room temperature and 50 drops from 2.0 meters at -20°C, making it suitable for demanding warehouse, manufacturing, and logistics environments where equipment is subject to frequent handling and potential impacts during daily operations.
What connectivity options does this wireless scanner offer?
The scanner features wireless connectivity technology with radio frequency capability and a USB host interface. This combination allows for flexible deployment in both mobile and fixed scanning applications. The wireless operation enables freedom of movement in warehouse and retail environments, while the USB interface provides reliable data transfer and power options when used in stationary configurations or during charging cycles.
What are the scanning performance specifications for challenging conditions?
The PM9600-SR performs effectively in challenging lighting conditions with maximum ambient light tolerance of 100,000 lux and minimum print contrast requirement of just 15%. The scanner offers flexible reading angles with 52° skew, 52° pitch, and 360° roll capabilities, allowing operators to scan codes from various orientations without requiring perfect alignment. These specifications ensure reliable scanning performance in warehouses with mixed lighting and on labels with varying print quality.
What applications is this barcode scanner designed for?
The PM9600-SR is designed for industrial, warehouse, manufacturing, logistics, retail, and inventory management applications. Its rugged construction makes it suitable for inventory counting, shipping verification, receiving operations, point-of-sale transactions, work-in-progress tracking, quality control verification, and parts identification. The comprehensive code support and environmental protection ratings ensure compatibility with diverse operational requirements across these different business environments.
What are the physical dimensions and color options of this scanner?
The handheld scanner measures 7.80 inches (198.12 mm) in height, 3.10 inches (78.74 mm) in width, and 5.50 inches (139.70 mm) in length, providing an ergonomic design for extended use. The device features a distinctive black and yellow color scheme that offers high visibility in industrial settings while maintaining a professional appearance. The compact dimensions and ergonomic form factor support comfortable operation during extended scanning sessions in various work environments.
What duplex or duty-cycle detail is listed?
the specifications are intended to help buyers confirm fit, compatibility, and expected day-to-day operation. In practical terms, the best reading of this product comes from how its hardware, connectivity, and deployment details work together.
What connectivity options are listed?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
