Dell 1WRXW OptiPlex 7020 Micro Desktop - Intel Core i5-14500T - 16GB DDR5 RAM - 256GB NVMe SSD - Windows 11 Pro - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the OptiPlex 7020 is the Intel Core i5-14500T processor, featuring 14 cores and 20 threads with a base clock of 1.70 GHz and maximum turbo frequency of 4.80 GHz. This 14th Gen CPU includes Intel vPro technology for enhanced manageability and security in business environments. The system utilizes DDR5 SDRAM technology with a single 16GB module installed, providing efficient data throughput for demanding applications.
Storage is handled by a 256GB M.2 PCI Express NVMe 4.0 solid-state drive, delivering rapid data access and system responsiveness. The motherboard includes two M.2 SSD slots, with one supporting Gen 4 speeds for future storage expansion. Integrated Intel graphics with shared DDR5 memory handles display output through native HDMI and DisplayPort connections.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The OptiPlex 7020 Micro Desktop combines enterprise features with space-saving design, offering distinct advantages for business deployments. Its ultra-compact Micro PC form factor enables flexible placement options while maintaining full desktop functionality and connectivity.
Space-Efficient Design

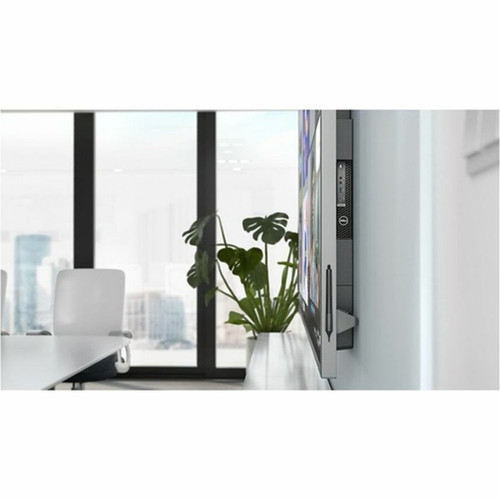

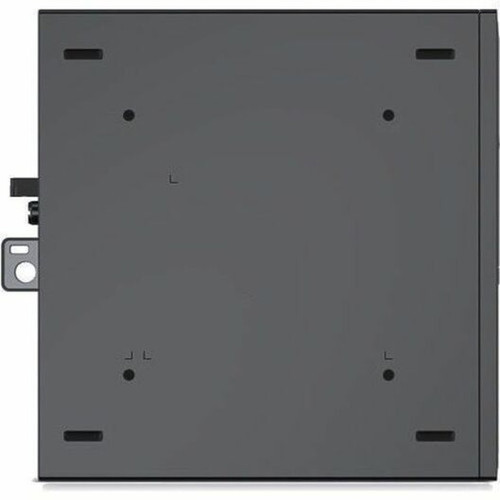

The Micro Form Factor chassis occupies minimal desk space and supports multiple mounting solutions, including behind-monitor VESA mounts and Dell's dedicated Micro All-in-One Stand for integrated display setups.
- 7.17" x 1.42" x 7.01" footprint
- Versatile mounting options
- Clutter-free workspace design
Modern Connectivity Suite

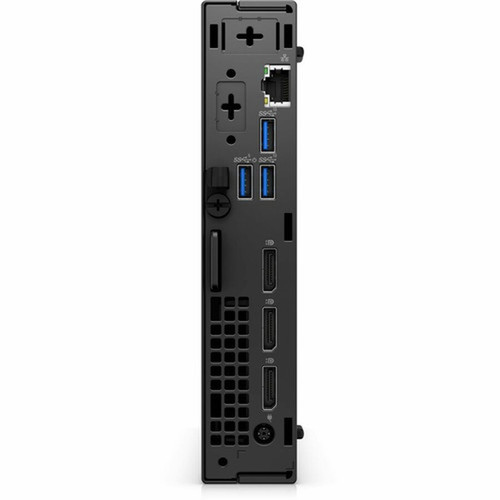

Comprehensive I/O includes six USB ports (with front USB 3.2 Gen 2 Type-C), dual display outputs, Wi-Fi 6, Bluetooth, and Gigabit Ethernet, supporting contemporary peripherals and network environments.
- USB 3.2 Gen 2 Type-C front port
- HDMI + DisplayPort outputs
- Wi-Fi 6 (802.11ax) wireless
Business Management Features
Intel vPro technology enables remote management capabilities, while Windows 11 Pro provides enterprise security features and management tools for IT administration.
- Intel vPro platform
- Windows 11 Pro OS
- Security slot for physical protection
Deployment / Use Cases
The OptiPlex 7020 Micro Desktop is ideally suited for space-constrained office environments where traditional desktop towers are impractical but full computing capabilities are required. Its compact design and versatile mounting options make it particularly valuable for reception areas, call centers, healthcare settings, and financial institutions where desk space is at a premium.
With its 14-core processor, 16GB RAM, and fast NVMe storage, this system handles general office productivity applications, CRM software, accounting platforms, and multi-tab web browsing with ease. The inclusion of vPro technology makes it suitable for managed corporate environments where IT departments require remote management and security capabilities. The Micro Form Factor also works well in digital signage applications, kiosk deployments, and thin client replacement scenarios where reliable, always-on computing is needed in minimal physical footprints.
Localization and Operating System
This Dell OptiPlex 7020 Micro Desktop ships with Windows 11 Pro pre-installed, providing a modern operating system with enterprise-grade security and management features essential for business environments. Windows 11 Pro includes BitLocker encryption for data protection, Windows Defender Antivirus for threat prevention, remote desktop functionality for IT support, and group policy management for centralized administration. The operating system delivers a familiar interface optimized for productivity, with enhanced multitasking capabilities and built-in Microsoft 365 integration for seamless workflow connectivity.
The system supports multiple language interfaces including English, Spanish, French, and Brazilian Portuguese, accommodating diverse user preferences in multinational organizations or multilingual workplaces. This multilingual capability allows IT departments to deploy consistent hardware across regions while providing localized user experiences. Keyboard localization is configured for English (US) layout with standard QWERTY key arrangement, though regional keyboard variants can be added through software configuration or hardware replacement as needed for specific localization requirements.
For enterprise deployment, Windows 11 Pro offers compatibility with Active Directory domain services, Microsoft Intune for cloud-based device management, and Windows Autopilot for streamlined device provisioning. The operating system's security features include hardware-based isolation with virtualization-based security (VBS), Microsoft Pluton security processor compatibility, and Windows Hello for business with biometric authentication options. These enterprise management capabilities make the OptiPlex 7020 suitable for organizations requiring centralized control, security compliance, and standardized computing environments across their infrastructure.
Physical Profile
The Micro PC form factor measures 7.17 inches in height, 1.42 inches in width, and 7.01 inches in depth (182.12 x 36.07 x 178.05 mm), with an approximate weight of 1.34 kg. The compact black chassis features a professional aesthetic suitable for business environments. The design supports multiple orientation and mounting options, including vertical placement with optional stands or horizontal mounting behind displays using VESA-compatible brackets.
- Width
- 1.42" (36.07 mm)
- Depth
- 7.01" (178.05 mm)
- Height
- 7.17" (182.12 mm)
- Weight
- 1.34 kg
What's in the Box
The system includes all essential components for immediate deployment in office environments.
Highlights
- Intel Core i5-14500T 14th Gen processor with 14 cores and vPro technology
- 16GB DDR5 memory for smooth multitasking and application performance
- 256GB PCIe NVMe 4.0 SSD for fast boot times and responsive system operation
- Windows 11 Pro operating system with enterprise security and management features
- Ultra-compact Micro PC form factor (7.17" x 1.42" x 7.01") with versatile mounting options
- Comprehensive connectivity: HDMI, DisplayPort, USB 3.2 Gen 2 Type-C, Wi-Fi 6, Bluetooth
- Energy Star certified and EPEAT Gold environmental rating
- 3-year basic onsite service warranty with remote diagnosis support
Specifications
| General | |
|---|---|
| Manufacturer | Dell Technologies |
| Manufacturer Part Number | 1WRXW |
| Brand Name | Dell |
| Product Line | OptiPlex |
| Product Series | 7000 |
| Product Model | 7020 |
| Product Name | OptiPlex 7020 Desktop Computer |
| Product Type | Desktop Computer |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 14th Gen |
| Processor Model | i5-14500T |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Speed | 1.70 GHz |
| Maximum Turbo Speed | 4.80 GHz |
| vPro Technology | Yes |
| Processor Threads | 20 |
| Chipset Manufacturer | Intel |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Configuration | 1 x 16GB |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| SSD Form Factor | M.2 |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Ethernet Technology | Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Keyboard Localization | English (US) |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 USB 3.2 Gen 2 (10 Gbps) Type-C® port |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English/Spanish/French/Brazilian Portuguese |
| Maximum Power Supply Wattage | 90 W |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Micro PC |
| Height | 7.17" (182.12 mm) |
| Width | 1.42" (36.07 mm) |
| Depth | 7.01" (178.05 mm) |
| Weight (Approximate) | 1.34 kg |
| Package Contents | OptiPlex 7020 Desktop Computer Power Cord Keyboard Mouse AC Adapter Safety/Environment and Regulatory Guide (English/French Multi-language) |
| Features | Security Slot |
| Energy Star | Yes |
| Country of Origin | Mexico |
| TAA Compliant | No |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold) |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS |
User Manual
FAQ
What processor does this product use?
This product uses the Intel processor for everyday performance and multitasking.
How much memory is installed?
It includes 16 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 256 GB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of Intel, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
