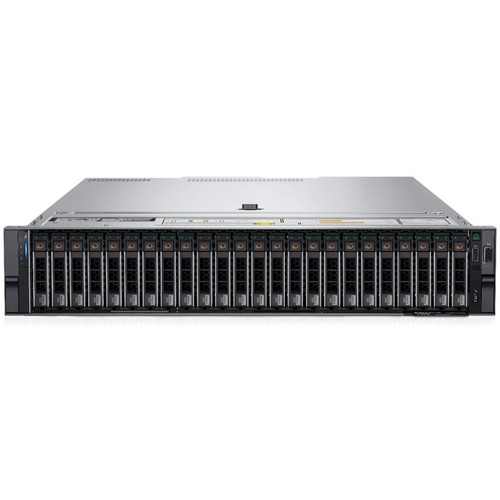

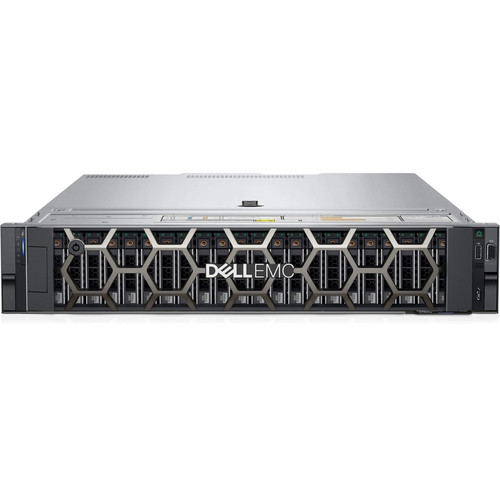

Dell PY6Y4 PowerEdge R750xs 2U Rack Server - 2x Xeon Silver 4310 12-Core 2. 1GHz - 32GB RAM - 480GB SSD - 16 x 2. 5" Hot-Swap Bays - PERC H755 RAID
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This server is built on dual 3rd Gen Intel Xeon Silver 4310 processors, each featuring 12 cores running at 2.10 GHz with 18 MB of cache. The platform supports up to 128 GB of DDR4-3200 ECC Registered memory across 16 DIMM slots, with 32 GB pre-installed.
Storage is handled by a single 480 GB SATA SSD, with expansion capacity for up to 16 2.5" small form factor drives. The PERC H755 controller supports both SAS and SATA interfaces with hardware RAID capabilities. Network connectivity includes two Gigabit Ethernet ports, and expansion is provided through six PCIe slots configured via a riser card.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The R750xs delivers enterprise-grade reliability and manageability in a dense 2U form factor. Its combination of dual-socket processing, abundant memory expansion, and high storage density makes it a versatile platform for evolving IT demands.
Advanced Remote Management
iDRAC9 Datacenter with OpenManage Enterprise Advanced enables full out-of-band server management, including firmware updates, health monitoring, and troubleshooting without operating system dependency.
- Out-of-band management
- Firmware inventory
- Automated deployment
Storage Flexibility and Protection
Sixteen hot-swappable 2.5" bays and a PERC H755 RAID controller allow for scalable storage configurations with data redundancy, supporting both performance and capacity drives.
- Hot-swap drive replacement
- Hardware RAID acceleration
- Mixed SAS/SATA support
High Availability Power
Dual, hot-swappable 1100-watt power supplies with redundancy ensure continuous operation, while wide input voltage compatibility (120-230V AC) simplifies deployment in varied electrical environments.
- N+1 power redundancy
- Hot-swap PSU replacement
- Wide voltage input
Deployment / Use Cases
The PowerEdge R750xs is well-suited for virtualized infrastructure, mid-size virtualization hosts, and software-defined storage nodes. Its balance of compute, memory, and storage density makes it effective for consolidating workloads or serving as a dedicated application server.
Common deployments include virtual desktop infrastructure (VDI) for medium user densities, branch office servers, and storage servers for backup or archival systems. The server's support for major hypervisors and Linux distributions provides flexibility in heterogeneous environments.
Virtualization Host
With 24 processor cores and support for up to 128 GB of memory, the R750xs can host multiple virtual machines, making it ideal for server consolidation or private cloud infrastructure.
Software-Defined Storage Node
Sixteen drive bays and hardware RAID support enable this server to act as a high-capacity storage node in scale-out architectures, suitable for backup targets or distributed storage pools.
Localization and Operating System
This server ships without a pre-installed operating system, providing the flexibility to deploy a preferred OS. It is certified for Ubuntu Server, Windows Server, Citrix XenServer, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server.
The included power cords are North American NEMA 5-15P to C13 type, rated for 125V and 15A. The server is manufactured in Mexico and includes comprehensive security features such as TPM 2.0, Secure Boot, and cryptographically signed firmware.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The R750xs occupies 2U of rack space with dimensions of 3.42 inches in height, 18.98 inches in width, and 27.87 inches in depth. Its standard rack-mountable design includes ReadyRails sliding rails for tool-less installation into 19-inch racks.
The compact 2U height maximizes rack density while providing ample internal space for 16 drive bays and six expansion slots. The server's front-accessible hot-swap drive bays and power supplies simplify maintenance without requiring chassis removal.
- Width
- 18.98" (482 mm)
- Depth
- 27.87" (707.78 mm)
- Height
- 2U
What's in the Box
The server is shipped with all necessary components for immediate rack mounting and power connection.
Highlights
- Dual Intel Xeon Silver 4310 12-core processors (2.10 GHz)
- 32 GB DDR4-3200 ECC Registered memory (expandable to 128 GB)
- 480 GB SATA SSD boot drive
- 16 hot-swappable 2.5" drive bays for storage expansion
- PERC H755 RAID controller with SAS/SATA support
- iDRAC9 Datacenter remote management with OpenManage Enterprise Advanced
- Dual, redundant, hot-swappable 1100W power supplies
- 2U rack-mountable form factor with included sliding rails
- Supports major hypervisors and Linux distributions
- 3-year basic hardware warranty with next business day onsite service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Dell Technologies |
| Manufacturer Part Number | PY6Y4 |
| Brand Name | Dell |
| Product Line | PowerEdge |
| Product Model | R750xs |
| Product Name | PowerEdge R750xs Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Silver |
| Processor Generation | 3rd Gen |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.10 GHz |
| Cache | 18 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 16 |
| Number of Occupied Memory Slots | 2 |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Number of Solid State Drives | 1 |
| Total Solid State Drive Capacity | 480 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA/600,Serial Attached SCSI (SAS) |
| Controller Model | PERC H755 |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 16 |
| Number of Internal 2.5" Bays | 16 |
| Number of SFF Bays | 16 |
| Hot Swappable Bays | Yes |
| Total Number of Expansion Slots | 6 |
| Riser Card | Riser Config 1, Half Length, Low Profile, 4x16 + 1x8 + 1x4 slots w/SNAPI on 1 slot |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Number of USB 2.0 Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced |
| Operating System | |
| Operating System Supported | Ubuntu Server,Windows Server,Citrix XenServer,Red Hat Enterprise Linux,SuSE Linux Enterprise Server |
| Operating System | No |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | NEMA 5-15P to C13 |
| Maximum Power Supply Wattage | 1.10 kW |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | PowerEdge R750xs Server 2 x NEMA 5-15P to C13 Wall Plug, 125 Volt, 15 AMP, 10 Feet (3m), Power Cord, North America ReadyRails Sliding Rails Without Cable Management Arm |
| Security Features | Cryptographically signed firmware Secure Boot Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Country of Origin | Mexico |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.42" (86.80 mm) |
| Width | 18.98" (482 mm) |
| Depth | 27.87" (707.78 mm) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years Basic Hardware Warranty Repair 5x10 HW-Only 5x10 Next Business Day Onsite-Disti SNS |
User Manual
FAQ
What processors are installed in this Dell PowerEdge R750xs server?
This server includes two Intel Xeon Silver 4310 processors. Each processor is a 3rd Generation Xeon Silver with 12 cores, running at a base frequency of 2.10 GHz and featuring 18 MB of cache. The dual-socket configuration provides a total of 24 processor cores for handling multi-threaded workloads.
How much memory does this server support and what type is installed?
The server supports up to 128 GB of DDR4 memory across 16 DIMM slots. It comes pre-configured with 32 GB of DDR4-3200 ECC Registered memory installed in two slots. This memory type provides error correction and registered buffering for improved reliability in enterprise environments.
What storage configuration and expansion options are available?
The server includes one 480 GB SATA SSD as the primary storage device. It features 16 hot-swappable 2.5" small form factor drive bays for expansion, allowing you to add additional SSDs or hard drives. Storage is managed by a PERC H755 RAID controller that supports both SAS and SATA interfaces with hardware RAID capabilities.
What remote management features are included?
The server includes iDRAC9 Datacenter 15G with OpenManage Enterprise Advanced. This provides comprehensive out-of-band management capabilities, allowing administrators to monitor server health, update firmware, deploy operating systems, and troubleshoot issues remotely without requiring operating system access.
What power supply configuration does this server use?
The server is equipped with two 1100-watt power supplies that are both hot-swappable and redundant. This N+1 configuration ensures continuous operation if one power supply fails. The power supplies support input voltages of 120V or 230V AC and include North American NEMA 5-15P power cords.
What operating systems are supported and is one pre-installed?
The server supports Ubuntu Server, Windows Server, Citrix XenServer, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server. No operating system is pre-installed, giving you the flexibility to deploy your preferred OS. The server includes TPM 2.0 and Secure Boot for enhanced security during OS installation and operation.
What processor or CPU is listed for this server or storage platform?
This product uses the 2 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.10 GHz processor for everyday performance and multitasking.
