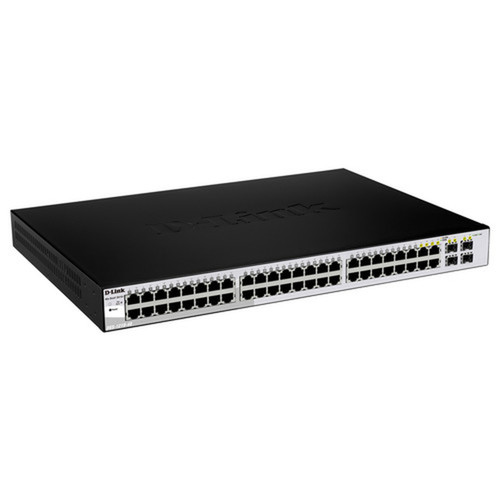

DGS-1210-52 D-Link Websmart Gigabit Switch - 48 Ports + 4 SFP - Layer 2 Managed - Rack-Mountable 1U
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This switch supports Gigabit Ethernet across all ports, with network technology covering 10/100/1000Base-T for copper connections and 1000Base-X for fiber uplinks. The 48 copper ports handle data transfer up to 100 meters over cost-effective twisted pair cables, while the 4 SFP slots enable fiber optic connections for longer distances or higher bandwidth needs.
Layer 2 switching capabilities include VLAN support, QoS for traffic prioritization, and basic security features like port-based access control. The manageable interface allows network administrators to configure settings via a web-based interface, simplifying setup and ongoing maintenance. The switch does not support Power over Ethernet (PoE) on its RJ-45 ports, making it ideal for data-only deployments where powered devices are handled separately.
Relevant factors for this section include Total Number of Network Ports, Modular, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DGS-1210-52 excels in providing a balanced mix of port density, management features, and deployment flexibility. Its 48-port design accommodates high device counts without requiring multiple switches, reducing clutter and simplifying cable management. The inclusion of SFP slots future-proofs the network by allowing fiber uplinks for backbone connections or long-distance links.
High Port Density
With 48 Gigabit Ethernet ports, this switch supports extensive wired networks for offices, classrooms, or retail environments, minimizing the need for additional hardware.
- Reduces switch sprawl
- Simplifies network topology
- Lowers total cost of ownership
Fiber Ready
The 4 SFP slots enable fiber optic connections, offering options for high-speed uplinks, extended distance coverage, or integration with existing fiber infrastructure.
- Supports 1000Base-X
- Enables long-distance links
- Provides backbone connectivity
Deployment / Use Cases
This switch is well-suited for small to medium-sized businesses that need a reliable, managed switching solution for wired network expansion. Its 48-port count makes it ideal for connecting workstations, printers, IP cameras, and other Ethernet devices in office environments, educational institutions, or retail settings.
The rack-mountable design allows for clean installation in server rooms or network closets, while the desktop form factor supports standalone use in smaller spaces. Use cases include backbone switching for department networks, aggregation for access layer devices, or as a core switch for branch offices requiring basic Layer 2 features without PoE capabilities.
Office Network Core
Deploy as the central switch for an office floor, connecting dozens of devices with managed features for traffic control and security.
- Handles high device density
- Supports VLAN segmentation
- Web-based management
Data Center Access Layer
Use in server racks to connect servers, storage, and management interfaces, with SFP uplinks to core switches for scalable performance.
- 1U rack profile
- Fiber uplink readiness
- Gigabit throughput
Physical Profile
The switch measures 1.73" in height, 17.32" in width, and 9.84" in depth, with a weight of approximately 9.04 pounds. Its compact 1U rack-mountable design fits standard 19-inch server cabinets, while the desktop form factor includes rubber feet for stable placement on shelves or desks. The steel chassis ensures durability in rack environments, and the front-panel port layout provides easy access for cable connections.
- Width
- 17.32" (439.93 mm)
- Depth
- 9.84" (249.94 mm)
- Height
- 1.73" (43.94 mm)
- Weight
- 9.04 lb (4100 g)
Highlights
- 48 Gigabit Ethernet ports for high-density wired connectivity
- 4 SFP slots for fiber optic uplinks or long-distance connections
- Layer 2 managed with websmart interface for VLANs and QoS
- Supports 10/100/1000Base-T copper and 1000Base-X fiber
- Rack-mountable 1U form factor for server cabinet installation
- Desktop-ready design with optional standalone placement
- Non-PoE ports ideal for data-only network segments
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | D-Link Systems, Inc |
| Manufacturer Part Number | DGS-1210-52 |
| Brand Name | D-Link |
| Product Series | DGS-1210 |
| Product Model | DGS-1210-52 |
| Product Name | DGS-1210-52 Websmart Gigabit Switch with 48 1000Base-T and 4 SFP Ports |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 48 |
| Modular | No |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network,4 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,1000Base-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable,Desktop |
| Height | 1.73" (43.94 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 9.84" (249.94 mm) |
| Weight (Approximate) | 9.04 lb (4100 g) |
| Warranty | |
| Limited Warranty | Lifetime |
FAQ
How many ports does the D-Link DGS-1210-52 switch have?
The DGS-1210-52 includes 48 Gigabit Ethernet ports for copper connections and 4 SFP slots for fiber optic uplinks. This totals 52 ports, with the SFP slots serving as expansion slots for flexible network design.
Is this switch manageable, and what Layer does it support?
Yes, the DGS-1210-52 is a manageable switch with a websmart interface. It supports Layer 2 switching, which includes features like VLANs, Quality of Service (QoS), and basic security protocols for network segmentation and traffic management.
Does this switch support Power over Ethernet (PoE)?
No, the DGS-1210-52 does not support PoE on its RJ-45 ports. It is designed for data-only applications, making it suitable for connecting non-powered devices like computers, printers, and servers where power is supplied separately.
What are the SFP slots used for on this switch?
The 4 SFP slots allow for fiber optic connections using SFP transceivers. They enable uplinks to other switches over fiber for longer distances, higher bandwidth, or integration into existing fiber networks, supporting 1000Base-X technology.
Can this switch be rack-mounted, and what is its form factor?
Yes, the switch is rack-mountable in a standard 19-inch server cabinet, occupying 1U of rack space. It also supports desktop placement with a form factor that includes rubber feet for stability, offering deployment flexibility for different environments.
What warranty comes with the D-Link DGS-1210-52 switch?
The DGS-1210-52 includes a lifetime limited warranty from D-Link. This warranty covers defects in materials and workmanship for the product's lifetime, providing long-term assurance for business network investments.
