Digital Watchdog DWC-MB44LPRC1T MEGApix CaaS 4MP LPR Bullet IP Camera - Varifocal Lens - 60 ft IR Night Vision - IP66 - PoE/DC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This network camera employs advanced imaging technology with a maximum aperture of f/1.6 for superior low-light performance. The CMOS sensor supports both MJPEG and H.264 video compression formats, optimizing bandwidth usage while maintaining image quality. Exposure control ranges from 1/32000 second for bright conditions to 1/15 second for low-light environments, with automatic white balance and gain control ensuring consistent color reproduction.
The camera features comprehensive video analytics including motion detection, alarm detection, and PTZ functionality through digital pan-tilt-zoom. A built-in web server enables direct browser access for configuration and live viewing without additional software. Digital noise reduction technology cleans up video signals in challenging lighting conditions.
Relevant factors for this section include HD Recording, Night Vision, Night Vision Distance, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The DWC-MB44LPRC1T stands out with its specialized LPR capabilities combined with robust construction for outdoor deployment. The camera's weatherproof IP66 rating ensures reliable operation in rain, dust, and extreme temperatures from -40°F to 122°F.
License Plate Recognition Ready
Optimized optics and processing deliver clear images of license plates at distance, with the varifocal lens allowing precise framing of traffic lanes or parking entries.
- 6-50mm focal range
- 8.3x optical zoom
- 2560x1440 resolution
All-Weather Durability
IP66 certification protects against dust ingress and powerful water jets, while the operating temperature range handles harsh winter cold and summer heat.
- Weather resistant
- Dust resistant
- Water proof
Dual Power Flexibility
Power over Ethernet simplifies installation by combining data and power in one cable, while 12V DC input provides alternative power options where PoE isn't available.
- PoE compliant
- 12V DC input
- Wired connectivity
Deployment / Use Cases
This camera excels in perimeter security applications where long-range identification is essential. The combination of high resolution, optical zoom, and infrared illumination makes it particularly effective for monitoring gates, driveways, and property boundaries after dark.
Commercial parking facilities benefit from the LPR capabilities for automated entry/exit systems and parking management. The camera can capture license plates clearly even at distance, reducing the need for multiple cameras covering the same area. Traffic monitoring applications include intersection surveillance, toll collection verification, and highway monitoring where vehicle identification is required.
Perimeter Security
Monitor property boundaries with clear identification of vehicles and individuals, using the 60-foot night vision to maintain security after sunset.
- 60 ft IR illumination
- Varifocal zoom
- Motion detection
Parking Management
Automate vehicle tracking with license plate recognition for gated communities, corporate campuses, and paid parking facilities.
- LPR optimized
- 2560x1440 resolution
- Remote management

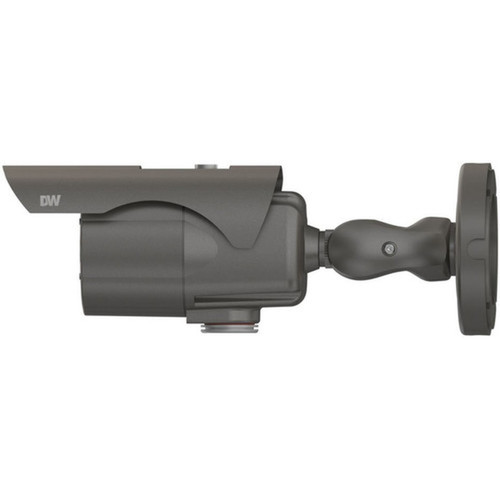

Physical Profile
The bullet form factor provides a visible deterrent while housing the sophisticated imaging components. The black finish blends with most architectural environments, and the compact design measures approximately 1.98 pounds for straightforward mounting on walls, poles, or ceilings. The included varifocal lens features manual adjustment for precise field-of-view configuration during installation.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.98 lb (898.11 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.98 lb (898.11 g)
- Length
- 6 mm (0.24")
Highlights
- 4-megapixel resolution delivers 2560x1440 video at 30 fps
- Varifocal lens with 6-50mm focal range and 8.3x optical zoom
- 60-foot infrared night vision for 24/7 surveillance
- IP66 weatherproof rating for outdoor installation
- Power over Ethernet and 12V DC power options
- License plate recognition optimized for traffic monitoring
- Wide 90° to narrow 7.3° field of view adjustment
- 5-year limited warranty for long-term reliability
- Built-in web server for direct browser access
- Supports MJPEG and H.264 video compression
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-MB44LPRC1T |
| Brand Name | Digital Watchdog |
| Product Line | MEGApix CaaS |
| Product Model | DWC-MB44LPRC1T |
| Product Name | MEGApix CaaS 4MP LPR bullet IP camera with a long range vari-focal lens, and IR |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 60 ft (18.29 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 90° - 7.3° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | MJPEG,H.264 |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS,HD-TVI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 6 mm (0.24") |
| Maximum Focal Length | 50 mm (1.97") |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 8.3x |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/15 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Bullet |
| Durability | Weather Resistant,Dust Resistant,Water Resistant,Water Proof |
| Weight (Approximate) | 1.98 lb (898.11 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Digital Noise Reduction,Day/Night,Motion Detection,Mirror,Auto Flip,Auto Gain Control,Automatic White Balance,PTZ,Alarm Detection,Built-in Web Server |
| Ingress Protection Rating | IP66 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum resolution of this Digital Watchdog camera?
The DWC-MB44LPRC1T captures 4-megapixel video at 2560x1440 resolution, which provides significantly more detail than standard 1080p cameras. This higher resolution allows for clearer identification of subjects at distance and supports digital zoom without excessive pixelation. The camera maintains this resolution at 30 frames per second for smooth motion capture.
How far does the night vision reach on this bullet camera?
Infrared illumination extends to 60 feet (18.29 meters), providing clear monochrome imaging in complete darkness. The camera automatically switches between color daytime mode and infrared-enhanced night mode based on ambient light conditions. This range makes it suitable for monitoring driveways, parking areas, and perimeter boundaries after dark.
Can this camera be used for license plate recognition?
Yes, this model is specifically designed as an LPR (License Plate Recognition) camera with optics optimized for capturing clear images of license plates at distance. The varifocal lens allows precise framing of traffic lanes, while the 4MP resolution provides the detail needed for plate reading algorithms. It's ideal for parking access control, toll collection, and traffic monitoring applications.
What power options are available for this network camera?
The camera supports both Power over Ethernet (PoE) and 12V DC power input. PoE simplifies installation by delivering both data and power through a single Ethernet cable, while the 12V DC option provides flexibility for locations where PoE switches aren't available. The input voltage requirement is 12V DC, and the camera includes appropriate power regulation for stable operation.
Is this camera suitable for outdoor installation?
Yes, with an IP66 ingress protection rating, the camera is fully weatherproof and can withstand dust, rain, and direct water jets. It operates in temperatures from -40°F to 122°F (-40°C to 50°C) and handles up to 90% humidity. The durable bullet housing protects the internal components from environmental factors for reliable year-round outdoor surveillance.
What type of lens does this camera have and can it be adjusted?
The camera features a varifocal lens with manual adjustment capability, offering focal lengths from 6mm to 50mm for an 8.3x optical zoom range. This allows the field of view to be adjusted from a wide 90° angle down to a narrow 7.3° angle for distant subjects. The lens is included with the camera and has a maximum aperture of f/1.6 for excellent low-light performance.
