Digital Watchdog DWC-MB44WIAWC5 MEGApix CaaS 4MP 2K Network Camera - White Bullet with 120 ft IR Night Vision
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera features a motorized 2.8-12mm varifocal lens with auto-focus capability, allowing precise adjustment of the field of view from 87° to 32°. The f/1.4 maximum aperture ensures optimal light gathering in low-light conditions, while the 4.2x optical zoom provides detailed inspection of distant subjects.
Advanced imaging technologies include True Wide Dynamic Range (WDR) for balanced exposure in high-contrast scenes, 3D Digital Noise Reduction (DNR) for cleaner video in low light, and a mechanical IR cut filter for true day/night operation. The camera supports motion detection, programmable privacy zones, and automatic white balance for consistent color accuracy.
Relevant factors for this section include HD Recording, Recording Formats, Night Vision, Image Sensor Type. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The MEGApix CaaS platform integrates camera and recording functionality into a single edge device, eliminating the need for separate servers in many deployment scenarios. With pre-loaded DW Spectrum® IPVMS software, the camera offers out-of-the-box operation and automatic licensing upon first power-on.
Edge Storage Capability
Built-in 512GB or 1TB storage options enable up to 30 days of retained video locally, providing redundancy and reducing network bandwidth requirements.
- Local video retention
- Reduced network load
- Dual recording to NAS
Intelligent Infrared System
Smart IR™ technology automatically adjusts infrared intensity based on subject distance, preventing overexposure of close objects while maintaining illumination for distant areas.
- Distance-based adjustment
- Prevents overexposure
- Consistent night coverage
Deployment / Use Cases
This camera is ideal for perimeter security, parking lots, building entrances, and other outdoor areas requiring detailed identification and evidence-grade video. The IP66 rating ensures reliable operation in rain, snow, dust, and extreme temperatures from -40°F to 122°F.
The PoE (Power over Ethernet) capability simplifies installation by delivering both power and data through a single cable, reducing wiring complexity and costs. For locations without PoE infrastructure, the camera also accepts standard 12V DC power input. The system can connect up to 30 MEGApix CaaS cameras in a unified surveillance network.
Commercial Perimeter Security
The 120-foot infrared range and varifocal lens make this camera suitable for monitoring large outdoor areas such as parking facilities, loading docks, and property boundaries.
- Long-range night vision
- Adjustable field of view
- Weather-resistant construction
Retail & Business Surveillance
4MP resolution provides clear identification of individuals and license plates, while WDR handles challenging lighting conditions like store entrances with bright exterior and dim interior lighting.
- Evidence-grade detail
- High-contrast handling
- Motion detection zones

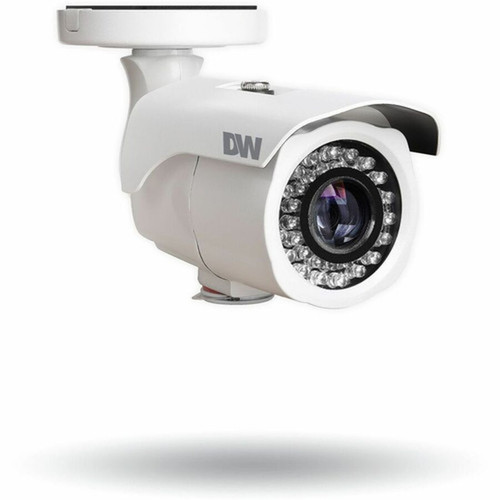

Physical Profile
The white bullet form factor provides a discreet yet visible deterrent presence. The housing is dust-resistant, water-resistant, waterproof, and weather-resistant with IP66 certification, protecting internal components from environmental elements. Waterproof cabling connections further enhance reliability in wet conditions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.98 lb (898.11 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 1.98 lb (898.11 g)
- Length
- 2.8 mm (0.11")
Highlights
- 4MP 1/3" CMOS sensor delivers 2560 x 1440 resolution at 30 fps
- 2.8-12mm varifocal lens with motorized zoom and auto-focus
- 120-foot infrared night vision with Smart IR technology
- IP66 rated for dust-tight and water-resistant operation
- PoE (Power over Ethernet) and 12V DC power options
- Built-in edge storage options (512GB/1TB) for local recording
- Pre-loaded DW Spectrum® IPVMS for out-of-the-box operation
- True Wide Dynamic Range (WDR) for high-contrast scenes
- ONVIF conformant (Profile S) for interoperability
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-MB44WIAWC5 |
| Brand Name | Digital Watchdog |
| Product Line | MEGApix CaaS |
| Product Model | DWC-MB44WIAWC5 |
| Product Name | MEGApix CaaS 4MP bullet IP camera with a vari-focal lens and IR |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 120 ft (36.58 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | 87° ~ 32° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 2.8 mm (0.11") |
| Maximum Focal Length | 12 mm (0.47") |
| Lens Included | Yes |
| Maximum Aperture | f/1.4 |
| Optical Zoom | 4.2x |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/15 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Ethernet |
| Protocols | ZeroConf,ONVIF,TCP/IP,UDP,RTP,TCP,RTSP,NTP,HTTP,HTTPS,SSL,DNS,DDNS,DHCP,FTP,SMTP,ICMP,SNMPv1/v2c/v3 (MIB2) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | PoE,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Bullet |
| Durability | Dust Resistant,Water Resistant,Water Proof,Weather Resistant |
| Weight (Approximate) | 1.98 lb (898.11 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Audio Compression,Auto Gain Control,Day/Night,3D Digital Noise Reduction,Wide Dynamic Range,Motion Detection,Automatic White Balance,Smart IR,Video Management System,White Balance,Gain Control |
| Ingress Protection Rating | IP66 |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does this camera record at?
The Digital Watchdog DWC-MB44WIAWC5 records at 4 megapixel resolution, specifically 2560 x 1440 pixels, which is commonly referred to as 2K. This provides significantly more detail than standard 1080p cameras, allowing for clearer identification of subjects and better digital zoom capability during playback.
How far does the night vision reach?
This camera features infrared night vision with a maximum range of 120 feet (36.58 meters). The Smart IR technology automatically adjusts the infrared intensity based on subject distance to prevent overexposure of close objects while maintaining adequate illumination for distant areas, ensuring consistent image quality throughout the coverage area.
What type of lens does this camera have?
It includes a varifocal lens with a focal length range of 2.8mm to 12mm, providing a field of view from 87° to 32°. This motorized lens features auto-focus capability and offers 4.2x optical zoom, allowing you to adjust the viewing angle remotely without physically accessing the camera during installation or operation.
Is this camera suitable for outdoor use?
Yes, this camera is designed for outdoor deployment with an IP66 ingress protection rating, making it dust-tight and resistant to powerful water jets from any direction. It operates in temperatures from -40°F to 122°F (-40°C to 50°C) and withstands up to 90% humidity, ensuring reliable performance in harsh environmental conditions.
What power options are available for this camera?
The camera supports both Power over Ethernet (PoE) Class 3 and standard 12V DC power input. PoE simplifies installation by delivering both power and data through a single Ethernet cable, while the DC option provides flexibility for locations without PoE infrastructure. The input voltage requirement is 12V DC.
Does this camera include local storage capability?
Yes, the MEGApix CaaS platform includes built-in edge storage options of 512GB or 1TB, which can retain up to 30 days of video locally depending on recording settings and activity levels. This local storage provides redundancy, reduces network bandwidth requirements, and enables operation without continuous connection to a central recorder.
