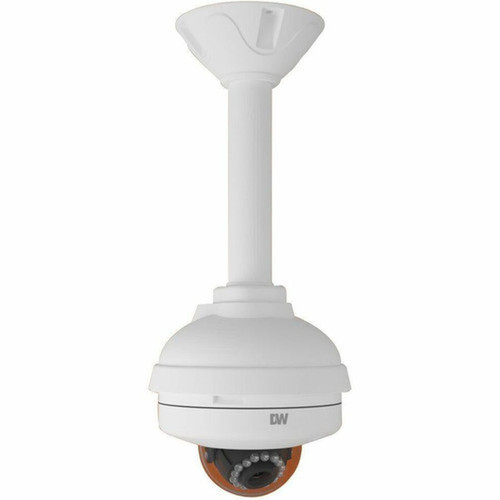

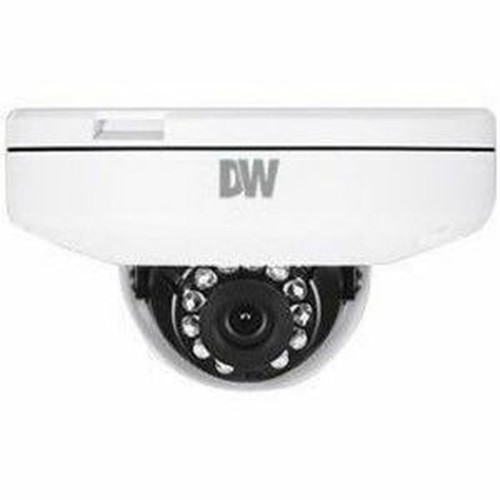

Digital Watchdog DWC-MF4WI6WC1T MEGApix CaaS 4MP 2K Dome Network Camera - White - Indoor/Outdoor - 50 ft IR - IP66 IK10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera captures 4-megapixel video at a maximum resolution of 2560 x 1440, utilizing H.264 and MJPEG codecs for efficient compression and dual-stream capability. The 1/3" CMOS sensor paired with a fixed 6 mm lens offers a 51° field of view, balanced for general monitoring applications. Advanced imaging features include True Wide Dynamic Range (WDR) for challenging lighting, 3D Digital Noise Reduction (DNR) to minimize grain in low light, and a mechanical IR cut filter for true day/night operation.
Network connectivity is handled via Fast Ethernet with support for ONVIF Profile S, TCP/IP, RTSP, and SNMP protocols, ensuring compatibility with most VMS platforms. The camera includes comprehensive video management features such as motion detection, privacy masking, alarm triggering, and programmable privacy zones. Environmental resilience is confirmed with an operating temperature range of -4°F to 122°F (-20°C to 50°C) and up to 90% humidity tolerance.
Key Product Advantages
The MEGApix CaaS edge camera eliminates server dependencies by functioning as a standalone recording unit with optional built-in storage, supporting up to 60 days of retained video. Its Smart IR™ technology synchronizes infrared illumination with the camera's sync to prevent overexposure, maintaining consistent image quality up to 50 feet in total darkness. The vandal-resistant dome design deters tampering while the IP66 rating guarantees reliable performance in wet or dusty environments.
Out-of-the-Box Operation
Pre-installed DW Spectrum® IPVMS enables immediate use without complex configuration, reducing setup time and technical overhead.
- Automatic licensing activation
- Remote management via web interface
- Supports up to 30 edge cameras
Enhanced Image Processing
True WDR and 3D DNR optimize video clarity in high-contrast and low-light scenarios, delivering usable footage around the clock.
- Mechanical IR cut filter for accurate color reproduction
- Auto gain control and white balance
- Dual codec support for flexible streaming
Deployment / Use Cases
This camera is suited for perimeter security, entryway monitoring, and indoor retail or office surveillance where a discreet, durable dome form factor is preferred. The indoor/outdoor rating and wide operating temperature range make it effective for parking lots, building exteriors, warehouses, and lobbies. PoE support allows installation using a single cable for both power and data, simplifying deployments in ceilings or walls where AC outlets are unavailable.
For larger systems, the camera can integrate with Blackjack® NAS appliances for dual recording redundancy, enhancing data reliability. Its compliance with ONVIF Profile S and NDAA regulations ensures it meets standards for government and commercial installations, providing a future-proof solution that aligns with industry security mandates.
Small Business Security
Ideal for shops, offices, or small facilities needing a few cameras without investing in a full NVR system, thanks to its edge storage capabilities.
Harsh Environment Monitoring
The IP66 and IK10 ratings protect against weather, dust, and vandalism, making it reliable for industrial sites or outdoor public areas.
Physical Profile
The dome housing measures 2.90" in height and 4.90" in diameter (73.66 mm x 124.46 mm), presenting a low-profile appearance that blends into architectural elements. Its white color suits most interior and exterior finishes, while the waterproof cabling design maintains ingress protection at connection points. The compact, impact-resistant build facilitates ceiling or wall mounting in confined spaces without sacrificing durability.
- Height
- 2.90" (73.66 mm)
- Weight
- 1.54 lb (698.53 g)
- Length
- 6 mm (0.24")
Highlights
- 4-megapixel 2K resolution at 30 fps for detailed surveillance footage
- 50 ft infrared night vision with Smart IR™ synchronization
- IP66 dust-tight and water-resistant, IK10 impact-resistant dome housing
- Power over Ethernet (PoE) or 12V DC power options for flexible installation
- Pre-loaded DW Spectrum® IPVMS for automatic out-of-the-box operation
- True Wide Dynamic Range and 3D Digital Noise Reduction for image clarity
- ONVIF Profile S conformant and NDAA compliant for broad compatibility
- 5-year limited warranty backed by Digital Watchdog
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-MF4WI6WC1T |
| Brand Name | Digital Watchdog |
| Product Line | MEGApix CaaS |
| Product Model | DWC-MF4WI6WC1T |
| Product Name | 4MP ultra low-profile vandal dome edge IP camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 50 ft (15.24 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/3" |
| Color Supported | Color |
| Field of View | 51° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.264,MJPEG |
| Maximum Video Resolution | 2560 x 1440 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 6 mm (0.24") |
| Lens Included | Yes |
| Maximum Aperture | f/2.0 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/30 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | AutoIP,ONVIF,TCP/IP,UDP,RTP/UDP,RTP/TCP,RTSP,NTP,HTTP,HTTPS,SSL,DNS,DDNS,DHCP,FTP,SMTP,ICMP,SNMPv1/v2c/v3 (MIB2) |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 7.40 W |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Form Factor | Dome |
| Durability | Impact Resistant,Dust Resistant,Water Resistant |
| Height | 2.90" (73.66 mm) |
| Diameter | 4.90" (124.46 mm) |
| Weight (Approximate) | 1.54 lb (698.53 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Day/Night,Auto Gain Control,Automatic White Balance,Motion Detection,Video Management System,Privacy Masking,3D Digital Noise Reduction,Multi-view Stream,Alarm Triggering,Built-in IR LED |
| Indoor/Outdoor | Indoor/Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the maximum video resolution of this camera?
The camera records at up to 4 megapixels, which equates to a 2560 x 1440 resolution. This 2K resolution provides clear, detailed imagery suitable for identifying faces, license plates, or other critical details in surveillance footage.
How far does the night vision reach?
Built-in infrared LEDs illuminate up to 50 feet (15.24 meters) in total darkness. The Smart IR™ feature intelligently adjusts illumination to prevent overexposure, ensuring consistent image quality throughout the night vision range.
Is this camera suitable for outdoor use?
Yes, it is rated IP66 for dust and water resistance and IK10 for impact protection, making it durable enough for outdoor installations. It operates in temperatures from -4°F to 122°F (-20°C to 50°C) and handles up to 90% humidity.
What power options are available?
The camera supports both 12V DC power and Power over Ethernet (PoE) Class 3. PoE allows a single Ethernet cable to deliver power and data, simplifying installation in locations without readily available electrical outlets.
Does it require a separate network video recorder (NVR)?
No, it is an all-in-one edge camera with optional built-in storage, eliminating the need for a dedicated NVR. It comes pre-loaded with DW Spectrum® IPVMS software, enabling standalone operation and remote access to live and recorded video.
What video management features are included?
Features include motion detection, privacy masking, alarm triggering, programmable privacy zones, auto gain control, and automatic white balance. These tools help customize monitoring, reduce false alerts, and ensure optimal video quality in varying conditions.
What display size or resolution is listed?
It features a display specification of 4 Megapixel, giving you clear visuals for work and media use.
