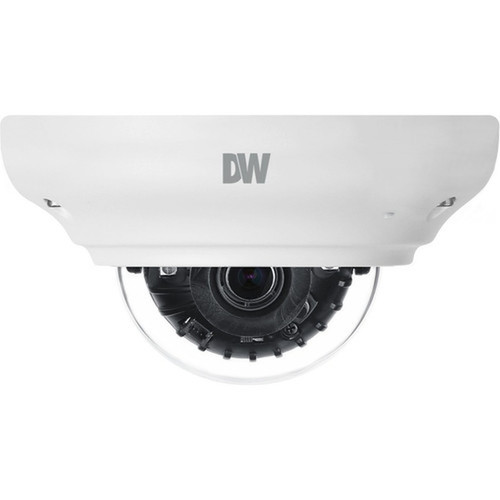

Digital Watchdog DWC-MV72WI4ATW MEGAPIX 2. 1MP Outdoor Dome IP Camera - 80 ft Night Vision - H. 265/H. 264 - Vandal-Resistant - IP67 - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered for high-performance surveillance, the DWC-MV72WI4ATW leverages a fixed 4 mm lens with an f/2.6 aperture and an 86° field of view to cover wide areas effectively. The CMOS sensor provides 2.1-megapixel resolution with 3D digital noise reduction, auto gain control, and day/night functionality for consistent image clarity. Video output is configurable in H.265, H.264, or MJPEG formats, with a maximum resolution of 1945 x 1109 at 30 frames per second.
Network connectivity is wired via RJ-45, supporting remote management and integration into existing IP surveillance systems. Power is supplied through 12 V DC input, compatible with standard surveillance power supplies. The camera includes a built-in microphone for audio capture and supports SD card local storage for backup recording, adding flexibility in deployment scenarios.
Key Product Advantages
This camera combines high-resolution imaging with rugged construction to deliver dependable outdoor surveillance. Its vandal-resistant dome and IP67 rating protect against physical damage and environmental elements, ensuring longevity in exposed installations. The 80 ft infrared night vision and wide 86° field of view provide comprehensive coverage, reducing blind spots and enhancing security effectiveness.
Enhanced Durability
Built to withstand impacts and harsh conditions with IK10 impact protection and IP67 dust/water resistance, ideal for high-traffic or outdoor areas prone to tampering or weather exposure.
- Vandal-resistant dome housing
- Impact-resistant IK10 rating
- Waterproof IP67 certification
Advanced Video Features
Supports H.265 and H.264 compression for efficient bandwidth use, along with motion detection, privacy masking, and HTTPS encryption for secure, customizable monitoring.
- H.265/H.264 video compression
- Motion detection alerts
- HTTPS encrypted streams
Deployment / Use Cases
The DWC-MV72WI4ATW is versatile for various surveillance applications, particularly where durability and clear imaging are critical. Its outdoor-rated design and wide temperature range make it suitable for perimeter security, entry points, and outdoor commercial spaces, providing reliable monitoring in challenging environments.
Common use cases include retail storefronts, school campuses, industrial facilities, and government buildings, where TAA compliance may be required. The camera's multiple mount options—wall, ceiling, junction box, or bracket—allow flexible installation to optimize viewing angles and coverage. Integration with network video recorders (NVRs) and video management software (VMS) enables scalable system expansion and centralized control.
Outdoor Perimeter Security
Deploy along fences, gates, or building exteriors to monitor for intrusions, with night vision covering up to 80 ft and weatherproofing ensuring year-round operation.
Commercial & Institutional Sites
Install in parking lots, loading docks, or public areas to enhance safety and asset protection, leveraging TAA compliance for government or educational projects.
Physical Profile
The dome form factor provides a discreet, low-profile appearance that blends into architectural settings while offering robust protection. Weighing 12.64 oz (358.34 g), the camera is lightweight yet sturdy, facilitating installation on various surfaces. Mounting flexibility includes wall, ceiling, junction box, and bracket options, allowing adjustability to achieve optimal viewing angles. The compact design minimizes visual intrusion while maintaining high performance in surveillance networks.
- Weight
- 12.64 oz (358.34 g)
- Length
- 4 mm (0.16")
Highlights
- 2.1-megapixel CMOS sensor for clear 1945 x 1109 HD video
- 80 ft (24.38 m) infrared night vision for 24/7 monitoring
- Vandal-resistant dome with IK10 impact and IP67 weatherproof ratings
- Supports H.265, H.264, and MJPEG video compression formats
- Wide 86° field of view with fixed 4 mm f/2.6 lens
- Built-in microphone and SD card slot for audio and local storage
- TAA compliant for government and institutional procurement
- Operates in temperatures from -4°F to 122°F (-20°C to 50°C)
- Includes motion detection, privacy masking, and HTTPS encryption
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-MV72WI4ATW |
| Brand Name | Digital Watchdog |
| Product Line | MEGAPIX |
| Product Model | DWC-MV72WI4ATW |
| Product Name | 2.1MP/1080p Ultra Low-Profile Vandal Dome IP Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 80 ft (24.38 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 86° |
| Effective Camera Resolution | 2.1 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1945 x 1109 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Lens Included | Yes |
| Maximum Aperture | f/2.6 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/15 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Ceiling Mount,Junction Box Mount,Bracket Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant,Dust Resistant,Water Proof |
| Weight (Approximate) | 12.64 oz (358.34 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Built-in Microphone,3D Digital Noise Reduction,Day/Night,Auto Gain Control,Motion Detection,SD Card Local Storage,Audio Compression,Privacy Masking,HTTPS Encryption |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution and video quality of this camera?
The camera features a 2.1-megapixel CMOS sensor that delivers a maximum video resolution of 1945 x 1109 at 30 frames per second. It supports H.265 and H.264 compression for efficient bandwidth use while maintaining high image clarity, making it suitable for detailed surveillance in both daylight and low-light conditions.
How far does the night vision reach, and is it effective in complete darkness?
The infrared night vision extends up to 80 ft (24.38 m), providing clear monochrome imaging in total darkness. This range ensures reliable monitoring during nighttime hours, covering typical outdoor areas like driveways, yards, or perimeter zones without additional lighting.
Is this camera suitable for outdoor use in harsh weather?
Yes, the camera is designed for outdoor deployment with an IP67 rating for dust and water resistance, along with an IK10 impact protection rating. It operates in temperatures from -4°F to 122°F (-20°C to 50°C) and handles humidity up to 90%, making it durable for year-round use in rain, snow, or extreme conditions.
What mounting options are available for installation?
The camera supports multiple mount types including wall, ceiling, junction box, and bracket mounts. This flexibility allows installers to position the dome for optimal coverage and adjust viewing angles to suit specific surveillance needs, whether on flat surfaces or corners.
Does this camera include audio recording capabilities?
Yes, it has a built-in microphone for audio capture, supporting audio compression for synchronized sound with video. This feature enhances monitoring by allowing audio detection alongside visual surveillance, useful for incidents where sound provides additional context.
What does TAA compliance mean for this product?
TAA (Trade Agreements Act) compliance indicates that the camera meets U.S. government procurement requirements, ensuring it is manufactured or substantially transformed in designated countries. This makes it eligible for use in federal, state, and institutional projects where compliance is mandated, adding value for public-sector deployments.
What display size or resolution is listed?
It features a display specification of 2.1 Megapixel, giving you clear visuals for work and media use.
