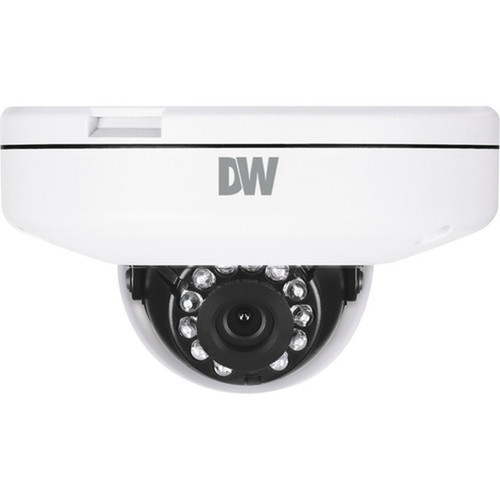

Digital Watchdog DWC-MF2WI28TW MEGApix IVA 2. 1MP Outdoor Dome Camera - 50ft Night Vision - H. 265 - IP66 - IK10 - 5-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The DWC-MF2WI28TW incorporates advanced imaging technology with a 2.1-megapixel CMOS sensor that captures color video in various lighting conditions. It features 3D digital noise reduction, auto gain control, and day/night functionality to enhance image clarity and reduce grain in challenging environments. The camera supports local storage via an SD card slot, providing a backup recording option alongside network video recorder (NVR) integration.
Video output is flexible with support for H.265, H.264, and MJPEG formats, allowing compatibility with a wide range of surveillance systems and bandwidth constraints. The maximum frame rate of 30 fps ensures smooth motion capture, while features like cross-line detection and privacy masking offer additional security customization. The camera also includes HTTPS encryption for secure remote access and management.
This section brings together practical product details such as HD Recording, Recording Formats, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This camera stands out with its robust construction and comprehensive feature set tailored for outdoor surveillance. The IP66 rating guarantees protection against dust and water jets, while the IK10 impact resistance ensures durability against physical vandalism. These ratings make it a reliable choice for high-risk areas where equipment longevity is critical.
Enhanced Low-Light Performance
With a night vision range of 50 feet and a fast f/2 aperture, the camera maintains visibility in low-light conditions. The day/night functionality automatically switches between color and monochrome modes to optimize image quality around the clock.
- 50 ft infrared illumination
- Auto day/night switching
- Wide dynamic range support
Advanced Video Analytics
Built-in analytics like cross-line detection and privacy masking allow for intelligent monitoring without requiring external software. These tools help reduce false alarms and protect privacy in sensitive areas.
- Motion detection zones
- Privacy masking for obscured areas
- Real-time alert triggers
Deployment / Use Cases
The DWC-MF2WI28TW is ideal for commercial and industrial surveillance applications where environmental resilience and high image quality are paramount. Its dome design and multiple mounting options—including wall, ceiling, junction box, and bracket mounts—provide installation flexibility for various architectural settings.
Common use cases include perimeter security for warehouses, monitoring of retail storefronts, oversight of school campuses, and surveillance in transportation hubs. The camera's TAA compliance ensures it meets U.S. government procurement standards, making it suitable for public sector projects. Its ability to operate in temperatures from -4°F to 122°F and up to 90% humidity ensures reliability in diverse climatic conditions.
Outdoor Perimeter Security
Deploy this camera along fences, gates, or building exteriors to deter trespassing and document incidents. The wide field of view and night vision capabilities provide continuous coverage day and night.
Retail Loss Prevention
Install above entrances, parking lots, or stockrooms to monitor customer and employee activity. The vandal-resistant dome deters tampering, while high-resolution video aids in identifying individuals and events.
Physical Profile
The camera features a compact dome form factor that blends discreetly into outdoor environments. Its lightweight design at 14.82 ounces simplifies installation on various surfaces without requiring heavy-duty supports. The included fixed lens is pre-configured for optimal focus, reducing setup time and ensuring consistent image quality across deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 14.82 oz (420 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Weight
- 14.82 oz (420 g)
- Length
- 2.8 mm (0.11")
Highlights
- 2.1-megapixel resolution for detailed HD video surveillance
- 50-foot night vision range with infrared illumination
- IP66 and IK10 ratings for dust, water, and impact resistance
- H.265, H.264, and MJPEG video compression support
- Wide 115° horizontal field of view for expansive coverage
- SD card slot for local backup storage
- TAA compliant for government and institutional procurement
- 5-year limited warranty for long-term reliability
- Operates in temperatures from -4°F to 122°F
- Includes cross-line detection and privacy masking features
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-MF2WI28TW |
| Brand Name | Digital Watchdog |
| Product Line | MEGApix IVA |
| Product Model | DWC-MF2WI28TW |
| Product Name | MEGApix IVA DWC-MF2WI28TW Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 50 ft (15.24 m) |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | 115° / 65° |
| Effective Camera Resolution | 2.1 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1945 x 1109 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Included | Yes |
| Maximum Aperture | f/2 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/15 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Wall Mount,Junction Box Mount,Ceiling Mount,Bracket Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant,Impact Resistant,Dust Resistant |
| Weight (Approximate) | 14.82 oz (420 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction,Day/Night,Auto Gain Control,SD Card Local Storage,Audio Compression,Cross Line Detection,Privacy Masking,HTTPS Encryption |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the resolution of this Digital Watchdog camera?
The DWC-MF2WI28TW offers a 2.1-megapixel resolution with a maximum video resolution of 1945 x 1109. This HD resolution provides clear, detailed imagery suitable for identifying faces, license plates, and other critical details in surveillance footage, ensuring reliable evidence collection and monitoring.
How far does the night vision reach on this outdoor camera?
This camera features a night vision distance of 50 feet (15.24 meters). It uses infrared illumination to capture monochrome video in low-light or complete darkness, allowing for continuous surveillance around the clock without requiring external lighting in outdoor environments.
Is this camera suitable for outdoor use in harsh weather?
Yes, the camera is built for outdoor use with an IP66 rating for protection against dust and water jets, and an IK10 rating for impact resistance. It operates reliably in temperatures from -4°F to 122°F and up to 90% humidity, making it durable for extreme weather conditions and vandal-prone areas.
What video formats does the camera support?
It supports H.265, H.264, and MJPEG video formats. H.265 and H.264 provide efficient compression to save bandwidth and storage space, while MJPEG offers compatibility with legacy systems. This flexibility ensures seamless integration with most network video recorders and surveillance software.
Can this camera be mounted in different locations?
Yes, the camera supports multiple mounting types including wall, ceiling, junction box, and bracket mounts. This versatility allows installation in various settings such as under eaves, on poles, or inside protective housings, adapting to different architectural requirements and surveillance angles.
What warranty comes with this Digital Watchdog camera?
The DWC-MF2WI28TW includes a 5-year limited warranty from Digital Watchdog. This extended coverage reflects the product's durability and reliability, providing peace of mind for long-term deployments in commercial, industrial, or institutional surveillance systems.
What display size or resolution is listed?
It features a display specification of 2.1 Megapixel, giving you clear visuals for work and media use.
