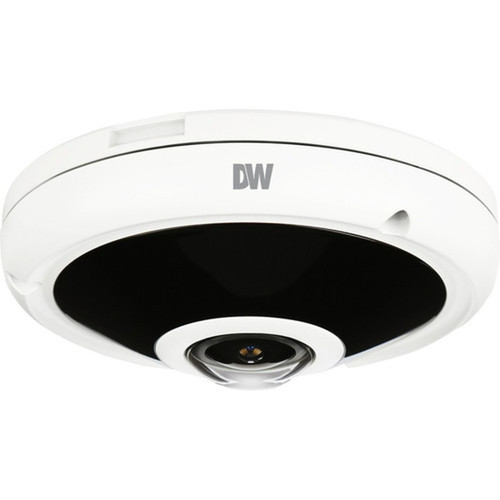

Digital Watchdog DWC-PVF5DI1TW MEGApix PANO 5MP Outdoor Fisheye Network Camera - 185° FOV - 80ft IR - IP66 IK09 - White
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This camera utilizes a 1/1.8" CMOS image sensor that produces 5-megapixel video at a maximum frame rate of 30 fps. It supports multiple video codecs including H.264, H.265, and MJPEG with simultaneous dual-stream capability for flexible recording and live viewing applications. The fixed 1.6mm fisheye lens provides consistent wide-angle coverage without requiring manual adjustment.
Advanced imaging features include Star-Light Plus technology for color reproduction in near-total darkness, Smart DNR 3D digital noise reduction for cleaner images in low-light conditions, and a mechanical IR cut filter for true day/night operation. The camera's Smart IR system provides 360-degree infrared illumination up to 80 feet with intelligent synchronization to prevent overexposure.
This section brings together practical product details such as HD Recording, Night Vision, Night Vision Distance, Image Sensor Type, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This fisheye camera offers several distinct advantages for surveillance professionals seeking comprehensive coverage with minimal camera count. The 185-degree field of view combined with support for 360-degree hemispheric, 360-degree panoramic, 180-degree, and 90-degree viewing modes provides exceptional flexibility in monitoring large areas.
Comprehensive Environmental Protection
With IP66 rating against dust and water ingress plus IK09 impact resistance, this camera withstands harsh outdoor conditions and deliberate vandalism attempts while maintaining reliable operation.
- Water and dust resistant
- Vandal proof construction
- Wide temperature tolerance
Advanced Imaging Technology
Star-Light Plus technology enables color imaging in extremely low-light conditions, while Smart DNR 3D reduces digital noise for clearer footage in challenging lighting environments.
- Near-darkness color capability
- 3D noise reduction
- Mechanical IR cut filter
Flexible Deployment Options
Multiple mounting types including pole, wall, corner, ceiling, gang box, and junction box installations allow for optimal positioning in diverse surveillance scenarios.
- Six mounting types
- PoE or DC power
- Remote management capable
Deployment / Use Cases
The DWC-PVF5DI1TW excels in applications requiring wide-area monitoring with minimal camera infrastructure. Its fisheye lens and multiple viewing modes make it ideal for covering large open spaces where traditional cameras would require multiple units to achieve similar coverage.
Common deployment scenarios include retail store interiors, warehouse facilities, parking lots, school campuses, and public transportation hubs. The camera's outdoor rating and vandal-resistant design make it suitable for perimeter security, entry points, and other exposed locations where weather protection and tamper resistance are essential.
Retail & Commercial Security
Monitor entire store floors, checkout areas, and stock rooms with a single camera, reducing installation costs while maintaining comprehensive surveillance coverage.
- 185° field of view
- Color in low light
- Vandal resistant
Outdoor Perimeter Protection
Secure building exteriors, parking areas, and property boundaries with weatherproof construction that withstands environmental challenges while providing clear identification footage.
- IP66 rated
- 80ft night vision
- -4°F to 122°F operation
Physical Profile
This low-profile vandal dome camera measures 6.30" in height and 2.83" in width, presenting a discreet footprint suitable for both conspicuous and unobtrusive installations. The white finish blends with most architectural environments while the fisheye form factor optimizes wide-angle performance within a compact housing.
Weighing approximately 1.10 pounds, the camera maintains a substantial feel that contributes to its vandal-resistant characteristics while remaining manageable for installation technicians. The comprehensive mounting system supports secure attachment to various surfaces without requiring specialized hardware.
- Width
- 2.83" (71.90 mm)
- Height
- 6.30" (159.90 mm)
- Weight
- 1.10 lb (498.95 g)
- Length
- 1.6 mm (0.06")
Highlights
- 5-megapixel resolution at 2592 x 1944 for detailed identification
- 185-degree field of view with fisheye lens for wide-area coverage
- 80-foot infrared night vision with Smart IR technology
- IP66 and IK09 ratings for outdoor and vandal-resistant deployment
- Power over Ethernet (PoE) and DC 12V power options
- H.264, H.265, and MJPEG codecs with dual-stream support
- Star-Light Plus technology for color in near-total darkness
- Six mounting types for flexible installation scenarios
- SD card local storage with motion detection capability
- 5-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-PVF5DI1TW |
| Brand Name | Digital Watchdog |
| Product Line | MEGApix PANO |
| Product Model | DWC-PVF5DI1TW |
| Product Name | 5MP Fisheye Low-Profile Vandal Dome IP Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 80 ft (24.38 m) |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome,Color |
| Field of View | 185° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | MJPEG,H.264,H.265 |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.6 mm (0.06") |
| Lens Included | Yes |
| Maximum Aperture | f/2.5 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/15 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Pole Mount,Wall Mount,Corner Mount,Ceiling Mount,Gang Box Mount,Junction Box Mount |
| Form Factor | Fisheye |
| Durability | Impact Resistant,Dust Proof,Water Resistant,Vandal Proof |
| Height | 6.30" (159.90 mm) |
| Width | 2.83" (71.90 mm) |
| Weight (Approximate) | 1.10 lb (498.95 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | SD Card Local Storage,Motion Detection,Back Light Compensation (BLC),Auto Gain Control,Automatic White Balance,Day/Night,Dual Stream,3D Noise Reduction |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK09 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What resolution does this Digital Watchdog camera provide?
The DWC-PVF5DI1TW delivers 5-megapixel resolution at 2592 x 1944 pixels, providing high-definition video quality suitable for identification purposes in surveillance applications. This resolution captures fine details across the camera's wide 185-degree field of view, ensuring clear imagery even when digitally zooming into specific areas of interest within the expansive coverage area.
How far does the night vision reach on this outdoor camera?
This camera features infrared night vision that extends up to 80 feet (24.38 meters) with 360-degree Smart IR illumination. The intelligent IR synchronization prevents overexposure of nearby objects while maintaining consistent lighting across the entire coverage area, ensuring reliable nighttime surveillance in complete darkness without requiring ambient light sources.
What environmental protections does this camera offer?
The camera carries both IP66 and IK09 ratings, providing comprehensive protection against environmental factors and physical impacts. The IP66 rating ensures complete protection against dust ingress and powerful water jets from any direction, while the IK09 rating indicates resistance to impacts of up to 5 joules, equivalent to a 1.7 kg mass dropped from 300 mm height, making it suitable for vandal-prone locations.
Can this camera be powered using Power over Ethernet?
Yes, the DWC-PVF5DI1TW supports both standard 12V DC power and IEEE 802.3af Power over Ethernet (PoE). This dual power capability provides installation flexibility, allowing the camera to receive both data connectivity and electrical power through a single Ethernet cable when connected to a PoE switch or injector, simplifying deployment in locations where AC power access is limited or inconvenient.
What mounting options are available for this fisheye camera?
This camera supports six different mounting configurations: pole mount, wall mount, corner mount, ceiling mount, gang box mount, and junction box mount. This versatility allows installers to position the camera optimally for specific surveillance needs while maintaining the 185-degree field of view regardless of mounting orientation, ensuring comprehensive coverage in diverse installation scenarios.
What video compression formats does this camera support?
The camera supports multiple video codecs including H.264, H.265, and MJPEG with simultaneous dual-stream capability. This allows different compression formats and resolutions to be streamed simultaneously to different destinations, such as high-quality H.265 recording to an NVR while providing lower-bandwidth H.264 streams for remote viewing on mobile devices, optimizing both storage efficiency and network performance.
What storage is included?
The system includes Memory Card of storage for applications, files, and everyday business data.
