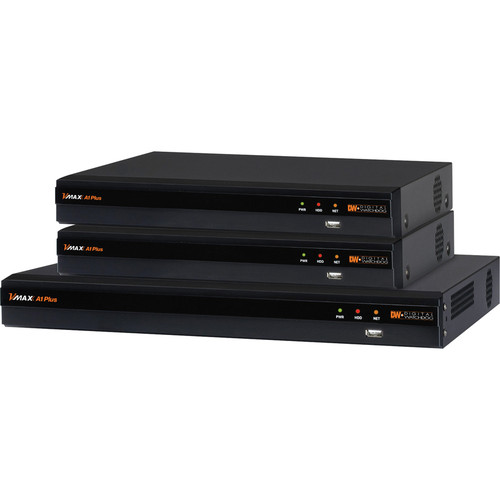

Digital Watchdog DW-VA1P1616T Universal HD Over Coax 16-Channel DVR - 16 TB HDD - 2560 x 1944 Resolution - 480 fps - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DVR features a wired connectivity design, providing reliable and stable connections for surveillance networks. It includes Ethernet support for network integration, enabling remote management and monitoring over the internet. The system supports Full HD recording formats, ensuring compatibility with modern HD-over-coax cameras.
For video output, the recorder offers both HDMI and VGA ports, allowing flexible display options on monitors or screens. It includes one composite video input, one audio input, and one audio output port for integrated audio-video setups. A USB port facilitates easy connectivity for peripheral devices or data transfer.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The DW-VA1P1616T combines high channel capacity with advanced video processing to deliver a robust surveillance solution. Its 16-channel support makes it suitable for expanding security systems, while the 480 fps frame rate ensures smooth playback and real-time monitoring without lag.
Efficient Storage Management
With 16 TB of installed storage and H.264 compression, this DVR maximizes recording duration while maintaining video clarity, reducing the need for frequent archiving or upgrades.
- 16 TB capacity for extended recording
- H.264 reduces file sizes by up to 50% compared to older codecs
Reliable Connectivity
Wired Ethernet ensures stable network performance for remote access, while multiple video outputs provide display flexibility in control rooms or on-site setups.
- Ethernet for remote management
- HDMI and VGA outputs for multi-monitor support
Deployment / Use Cases
This DVR is ideal for commercial and institutional environments requiring scalable surveillance, such as retail stores, office buildings, schools, or small industrial sites. Its 16-channel capacity handles multiple camera feeds efficiently, supporting comprehensive area coverage.
The TAA compliance makes it suitable for government or public-sector projects requiring adherence to trade agreements. The remote management capability allows security personnel to monitor feeds from off-site locations, enhancing operational flexibility and response times.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Small Business Security
Deploy in retail outlets or offices to monitor entrances, aisles, and parking areas with high-definition clarity and reliable recording.
Educational Campus Monitoring
Use in schools or campuses to oversee hallways, common areas, and perimeters, leveraging the 16 TB storage for continuous recording during terms.
Physical Profile
The DVR has a compact form factor with dimensions of 15.15" wide, 12.40" deep, and 1.88" high, making it suitable for rack mounting or desktop placement in control rooms. Its approximate weight of 1.20 kg ensures easy installation and minimal space requirements.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.88" (47.75 mm), 15.15" (384.81 mm), 12.40" (314.96 mm), 1.20 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 15.15" (384.81 mm)
- Depth
- 12.40" (314.96 mm)
- Height
- 1.88" (47.75 mm)
- Weight
- 1.20 kg
Highlights
- 16-channel capacity for small-to-mid-range surveillance needs
- 16 TB hard drive provides extensive recording storage
- Maximum resolution of 2560 x 1944 for detailed video capture
- Up to 480 fps frame rate ensures smooth playback
- H.264 compression reduces file sizes while maintaining quality
- Ethernet connectivity enables reliable remote management
- HDMI and VGA outputs for flexible display options
- TAA compliant for government and public-sector use
- 5-year limited warranty for long-term reliability
- WEEE and RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DW-VA1P1616T |
| Brand Name | Digital Watchdog |
| Product Line | VMAX A1 Plus |
| Product Model | DW-VA1P1616T |
| Product Name | Universal HD Over Coax 16-Channel Digital Video Recorder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Digital Video Recorder |
| Storage | |
| Hard Drive Capacity | 16 TB |
| Video | |
| Video Formats | H.264 |
| Maximum Resolution | 2560 x 1944 |
| Maximum Frame Rate | 480 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 1.88" (47.75 mm) |
| Width | 15.15" (384.81 mm) |
| Depth | 12.40" (314.96 mm) |
| Weight (Approximate) | 1.20 kg |
| Miscellaneous | |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many cameras can this DVR support?
The Digital Watchdog DW-VA1P1616T supports up to 16 channels, meaning it can connect and record from 16 HD-over-coax cameras simultaneously. This makes it suitable for small-to-mid-range surveillance setups in environments like retail stores or office buildings.
What is the maximum video resolution this recorder can handle?
This DVR records at a maximum resolution of 2560 x 1944, which provides high-definition clarity for detailed monitoring. Combined with a frame rate of up to 480 fps, it ensures smooth video playback and effective capture of fast-moving events.
How much storage capacity does this DVR have installed?
It comes with a 16 TB hard drive pre-installed, offering substantial storage for extended recording periods. The H.264 video compression helps optimize this capacity by reducing file sizes without compromising on video quality.
Can this DVR be managed remotely?
Yes, the DW-VA1P1616T includes Ethernet connectivity and remote management capabilities. Once connected to a network, you can access and monitor the surveillance feeds over the internet, allowing for off-site security oversight.
What video outputs are available on this recorder?
This DVR provides both HDMI and VGA outputs, giving you flexibility to connect to modern monitors or legacy displays. It also includes one composite video input, one audio input, and one audio output for integrated audio-video setups.
Is this DVR compliant with government procurement standards?
Yes, the DW-VA1P1616T is TAA compliant, meeting the Trade Agreements Act requirements. This makes it suitable for use in government, educational, and public-sector projects where adherence to these standards is necessary.
What storage is included?
The system includes 16 TB of storage for applications, files, and everyday business data.
