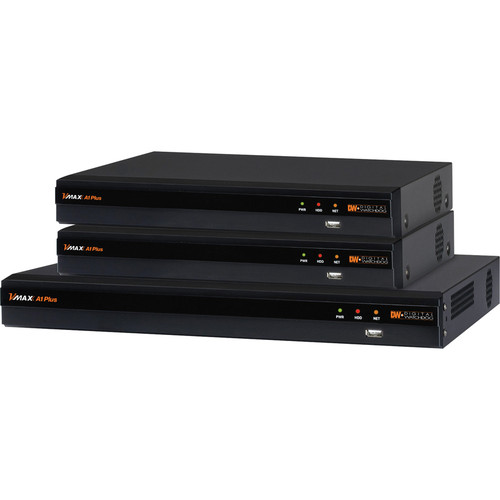

Digital Watchdog DW-VA1P162T Universal HD Over Coax 16-Channel DVR - 2 TB HDD - 2560 x 1944 Resolution - 480 fps - HDMI - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This DVR handles up to 16 analog HD-over-coax camera inputs, recording in Full HD with a maximum resolution of 2560x1944. The 480 fps total frame rate allows for smooth video playback across all connected channels, essential for monitoring dynamic scenes. Video is encoded using the efficient H.264 format, balancing quality with storage demands.
Network connectivity is provided through Ethernet, enabling remote management and live viewing from any internet-connected device. The unit includes HDMI and VGA outputs for local monitoring, plus composite video input for legacy camera integration. Audio support includes one input and one output port, adding flexibility for audio-enabled surveillance setups. USB ports facilitate easy data transfer and peripheral connectivity.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Recording, Ready-to-Deploy Storage, Robust Connectivity & Management.
High-Density Recording
Supports 16 channels at high resolution and frame rates, capturing detailed footage for comprehensive surveillance coverage.
- 2560x1944 maximum resolution
- 480 fps total frame rate
- H.264 compression for efficiency
Ready-to-Deploy Storage
Includes a 2 TB hard drive pre-installed, reducing initial setup time and providing immediate recording capacity.
- 2 TB onboard storage
- Optimized for extended recording
- No additional drive purchase required initially
Robust Connectivity & Management
Offers Ethernet for reliable network access, HDMI/VGA for local displays, and remote management capabilities for flexible oversight.
- Ethernet for network connectivity
- HDMI and VGA outputs
- Remote management enabled
Deployment / Use Cases
This DVR is ideal for small-to-medium businesses, retail stores, offices, and educational facilities requiring a reliable surveillance system with up to 16 cameras. Its HD-over-coax compatibility makes it suitable for upgrading existing analog camera systems without replacing all cabling, offering a cost-effective path to higher video quality.
Use cases include perimeter security, indoor monitoring, cash handling areas, and entry points where detailed video evidence is necessary. The remote management feature allows security personnel to view live feeds and playback recordings from off-site locations, enhancing response times and operational flexibility. The TAA compliance also makes it a viable option for government contracts and projects requiring adherence to trade agreements.
Physical Profile
The DVR has a compact form factor measuring 15.15 inches wide, 12.40 inches deep, and 1.88 inches high, with a weight of approximately 1.20 kg. This slim design allows for easy placement on shelves, racks, or desks, fitting into standard IT environments without excessive space demands. The build supports stable operation in typical office conditions, with a focus on durability for continuous surveillance use.
- Width
- 15.15" (384.81 mm)
- Depth
- 12.40" (314.96 mm)
- Height
- 1.88" (47.75 mm)
- Weight
- 1.20 kg
Highlights
- 16-channel HD-over-coax DVR for small-to-mid-range surveillance
- Pre-installed 2 TB hard drive for immediate recording capacity
- Records at up to 2560x1944 resolution and 480 fps total frame rate
- Uses H.264 video compression for efficient storage and bandwidth
- Ethernet connectivity enables remote management and viewing
- HDMI and VGA outputs for local monitoring flexibility
- TAA compliant, meeting government procurement requirements
- 5-year limited warranty for long-term reliability assurance
- Environmentally friendly with WEEE and RoHS compliance
- Includes USB ports for easy data transfer and peripheral connectivity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DW-VA1P162T |
| Brand Name | Digital Watchdog |
| Product Line | VMAX A1 Plus |
| Product Model | DW-VA1P162T |
| Product Name | Universal HD Over Coax 16-Channel Digital Video Recorder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Digital Video Recorder |
| Storage | |
| Hard Drive Capacity | 2 TB |
| Video | |
| Video Formats | H.264 |
| Maximum Resolution | 2560 x 1944 |
| Maximum Frame Rate | 480 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Physical Characteristics | |
| Height | 1.88" (47.75 mm) |
| Width | 15.15" (384.81 mm) |
| Depth | 12.40" (314.96 mm) |
| Weight (Approximate) | 1.20 kg |
| Miscellaneous | |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many cameras can this DVR support?
This Digital Watchdog DVR supports up to 16 cameras using HD-over-coax technology. It is designed for small-to-mid-range surveillance setups, providing comprehensive coverage for businesses, retail spaces, or offices without requiring a full network overhaul.
What is the maximum video resolution and frame rate?
The DVR records at a maximum resolution of 2560x1944 and a total frame rate of 480 frames per second across all channels. This high resolution ensures detailed video capture, while the frame rate supports smooth playback for monitoring dynamic areas.
Does it come with a hard drive installed?
Yes, this unit includes a pre-installed 2 TB hard drive. This provides substantial onboard storage for extended recording periods, reducing initial setup time and offering immediate capacity for surveillance footage without needing an additional drive purchase.
What video compression format does it use?
It uses H.264 video compression, which balances high-quality recording with efficient file sizes. This format helps optimize storage space and reduces network bandwidth usage during remote viewing, making it suitable for environments with limited resources.
Can I access the DVR remotely?
Yes, the DVR features Ethernet connectivity and remote management capabilities. You can view live feeds, playback recordings, and manage settings from any internet-connected device, allowing for flexible oversight and quick response to security events.
Is this DVR TAA compliant?
Yes, this DVR is TAA compliant, meaning it meets the Trade Agreements Act requirements for government procurement in the United States. It also complies with environmental standards like WEEE and RoHS, making it suitable for commercial and government projects.
What storage is included?
The system includes 2 TB of storage for applications, files, and everyday business data.
