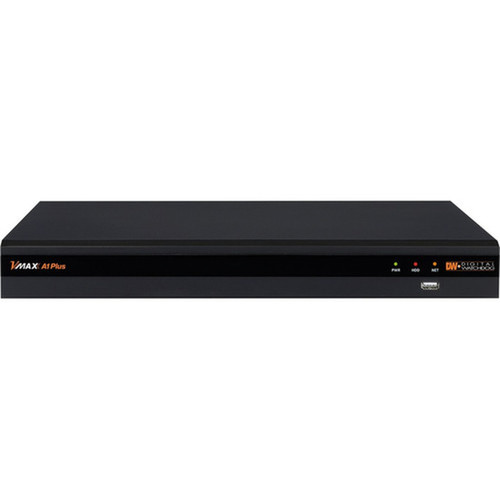

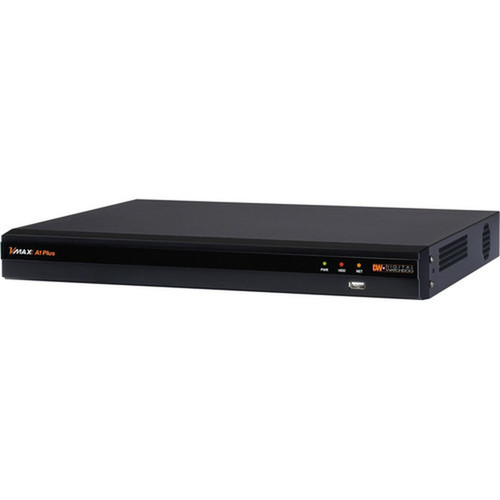

Digital Watchdog DW-VA1P16 Universal HD Over Coax 16-Channel DVR - 2560 x 1944 Resolution - 480 fps - HDMI - TAA Compliant
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This 16-channel DVR delivers professional surveillance recording with wired connectivity technology and Full HD recording capabilities. The system supports a maximum resolution of 2560 x 1944 pixels, providing clear image detail for identification purposes. With a maximum frame rate of 480 fps across all channels, the recorder ensures smooth video playback even during high-activity monitoring scenarios.
The H.264 video compression format optimizes storage efficiency while maintaining video quality. Network connectivity is provided through Ethernet with remote management capabilities, allowing administrators to monitor and configure the system from any internet-connected location. Multiple output options include HDMI, VGA, and composite video outputs for flexible display configurations.
This section brings together practical product details such as Total Number of Channels, Connectivity Technology, Recording Formats, Hard Drive Capacity, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DW-VA1P16 combines channel density with high-resolution recording in a compact DVR platform. The 16-channel capacity addresses growing surveillance needs while the 2560x1944 maximum resolution ensures image details remain clear and identifiable. TAA compliance makes this recorder suitable for government and institutional deployments where sourcing requirements must be met.
High-Density Recording
Supports 16 camera channels with 480 fps total recording capacity, providing comprehensive coverage for small to medium surveillance installations.
- 16-channel capacity
- 480 fps total frame rate
- H.264 compression
Remote Management Capabilities
Ethernet connectivity enables remote access for live viewing, playback, and system configuration from any internet-connected device.
- Network accessible
- Remote configuration
- Off-site monitoring
Deployment / Use Cases
This universal HD over coax DVR is ideal for upgrading existing analog surveillance systems to higher resolution recording while maintaining existing coaxial cable infrastructure. The 16-channel capacity makes it suitable for small retail stores, office buildings, educational facilities, and municipal properties requiring comprehensive camera coverage.
The TAA compliance ensures eligibility for government contracts and institutional projects where sourcing regulations apply. The compact form factor allows for installation in server racks, network closets, or under-desk locations where space is limited. Remote management capabilities support multi-site monitoring from a central security operations center.
Analog System Upgrades
Extend the life of existing coaxial camera installations by adding high-definition recording capabilities without rewiring infrastructure.
Small to Medium Business Security
Provide comprehensive surveillance coverage for retail spaces, offices, and facilities with 16-camera capacity and remote monitoring options.
Physical Profile
The DW-VA1P16 features a compact chassis measuring 15.15" wide × 12.40" deep × 1.88" high (384.81 × 314.96 × 47.75 mm) with an approximate weight of 1.20 kg. This slim profile supports desktop placement or rack mounting in standard equipment enclosures. The design incorporates efficient cooling for continuous operation in surveillance environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.88" (47.75 mm), 15.15" (384.81 mm), 12.40" (314.96 mm), 1.20 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 15.15" (384.81 mm)
- Depth
- 12.40" (314.96 mm)
- Height
- 1.88" (47.75 mm)
- Weight
- 1.20 kg
Highlights
- 16-channel capacity for small to mid-range surveillance deployments
- Maximum 2560x1944 resolution recording for clear image detail
- 480 fps total frame rate across all channels
- H.264 video compression for efficient storage utilization
- HDMI, VGA, and composite video output options
- Ethernet connectivity with remote management capabilities
- TAA compliant for government and institutional deployments
- 5-year limited warranty for long-term reliability
- Environmentally compliant with WEEE and RoHS standards
- Compact design for flexible installation options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DW-VA1P16 |
| Brand Name | Digital Watchdog |
| Product Line | VMAX A1 Plus |
| Product Model | DW-VA1P1610T |
| Product Name | Universal HD Over Coax 16-Channel Digital Video Recorder |
| Product Type | Video Surveillance Station |
| Technical Information | |
| Total Number of Channels | 16 |
| Connectivity Technology | Wired |
| Recording Formats | Full HD |
| HD Recording | Yes |
| System Components | Digital Video Recorder |
| Storage | |
| Hard Drive Capacity | No |
| Video | |
| Video Formats | H.264 |
| Maximum Resolution | 2560 x 1944 |
| Maximum Frame Rate | 480 fps |
| Network & Communication | |
| Ethernet | Yes |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Composite Video In | Yes |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Number of VGA Out | 1 |
| HDMI | Yes |
| Power Description | |
| Power Consumption | 60 W |
| Physical Characteristics | |
| Height | 1.88" (47.75 mm) |
| Width | 15.15" (384.81 mm) |
| Depth | 12.40" (314.96 mm) |
| Weight (Approximate) | 1.20 kg |
| Miscellaneous | |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
How many cameras can the DW-VA1P16 DVR support?
The Digital Watchdog DW-VA1P16 supports up to 16 cameras through its universal HD over coax inputs. This channel capacity makes it suitable for small to medium surveillance installations requiring comprehensive coverage of entrances, exits, and interior spaces.
What is the maximum recording resolution of this DVR?
This DVR records at a maximum resolution of 2560 x 1944 pixels, providing high-definition video capture that preserves important image details for identification purposes. The system supports Full HD recording formats across all connected cameras.
Does this DVR include a hard drive for storage?
No, the DW-VA1P16 does not include an installed hard drive. Users must add their own compatible surveillance-grade hard drives to provide storage for recorded video. The system supports standard 3.5" SATA hard drives for recording capacity.
Can I monitor this DVR remotely?
Yes, the DW-VA1P16 includes Ethernet connectivity and remote management capabilities. Once connected to a network, you can access the system from any internet-connected device to view live feeds, playback recorded footage, and configure system settings remotely.
What video outputs does this DVR provide?
The DVR includes multiple video output options: HDMI for high-definition display connections, VGA for analog monitor connections, and composite video output for legacy display devices. This flexibility allows integration with various monitoring setups and display technologies.
Is this DVR TAA compliant?
Yes, the Digital Watchdog DW-VA1P16 is TAA (Trade Agreements Act) compliant, making it suitable for government contracts, educational institutions, and other projects that require compliance with federal sourcing regulations for surveillance equipment.
What storage is included?
The system includes No of storage for applications, files, and everyday business data.
