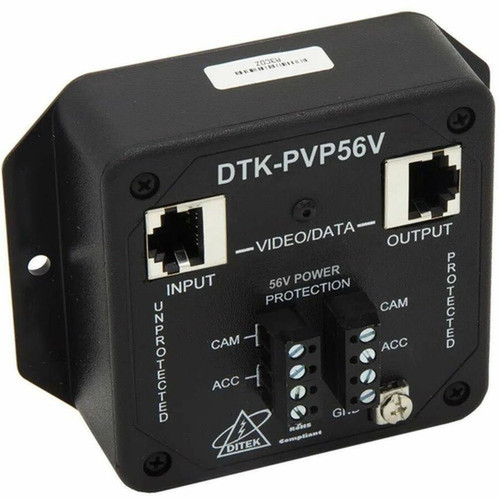

DITEK DTK-PVP56V PoE Data & 56V Power Surge Protector - RJ-45 Input 64V/56V DC - UL497B Listed
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This surge protector features two pairs of power protection, each rated at 6 Amps per pair, specifically engineered to protect 48V-56V DC power circuits. The input voltage range accommodates 64 V DC and 56 V DC, making it suitable for various PoE implementations. Data line protection covers PoE, video/data, network, and Ethernet lines, ensuring comprehensive coverage for mixed-signal environments.
The RJ-45 receptacles provide standard connectivity, while the external grounding screw enhances safety by diverting surge currents to ground. Built with ABS plastic, the unit measures 1.85 inches in height, 3.36 inches in width, and 4.20 inches in depth, weighing approximately 4.97 ounces. This design balances robust protection with a lightweight, space-efficient form factor.
This section brings together practical product details such as Receptacles, Dataline Protection, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The DTK-PVP56V stands out with its dual focus on high-speed data integrity and power circuit protection, offering a specialized solution for modern networked environments. Its ability to handle up to 10GbE data speeds without signal degradation ensures that performance remains uncompromised even under surge conditions.
Certified Protection
UL497B listing and IEEE PoE compliance provide industry-recognized assurance of safety and effectiveness, reducing risk in critical installations.
- UL497B Listed
- IEEE PoE Compliant
- 10-Year Warranty
Robust Power Handling
Two pairs of 6 Amp power protection circuits safeguard 48V-56V DC power lines, offering reliable defense against surges in PoE applications.
- 6A per Pair
- 48V-56V DC Range
- External Grounding Screw
Deployment / Use Cases
This surge protector is ideal for environments where PoE devices and high-speed data lines coexist, such as IP camera systems, VoIP phone networks, and industrial Ethernet installations. It protects both power and data pathways, preventing damage from electrical surges that could disrupt operations or cause equipment failure.
Common applications include securing network switches, routers, and access points in offices, schools, and healthcare facilities. It also suits video surveillance setups where PoE cameras transmit data over Ethernet, ensuring uninterrupted video feeds and power delivery. The compact size allows for easy mounting in network cabinets or alongside equipment, making it a versatile addition to any surge protection strategy.
IP Surveillance Systems
Protect PoE-powered cameras and NVRs from surges, maintaining continuous video monitoring and power supply in security applications.
Enterprise Networking
Safeguard switches and routers in data centers or office networks, ensuring uptime for critical business communications and connectivity.
Physical Profile
Encased in durable ABS plastic, the DTK-PVP56V features a compact design with dimensions of 1.85 inches high, 3.36 inches wide, and 4.20 inches deep. Weighing just under 5 ounces, it is lightweight yet sturdy, suitable for mounting in tight spaces such as network racks or equipment panels. The external grounding screw provides a secure connection point for grounding wires, enhancing safety and compliance with electrical standards. Its small footprint minimizes space usage while delivering robust protection.
- Width
- 3.36" (85.34 mm)
- Depth
- 4.20" (106.68 mm)
- Height
- 1.85" (46.99 mm)
- Weight
- 4.97 oz (141 g)
Highlights
- Protects PoE, video/data, network, and Ethernet lines up to 10GbE speeds
- Two pairs of power protection rated at 6 Amps per pair for 48V-56V DC circuits
- RJ-45 female connections with external grounding screw for secure installation
- Complies with all IEEE Power over Ethernet standards for certified performance
- UL497B listed ensuring safety and reliability in surge protection
- Input voltage supports 64 V DC and 56 V DC for versatile PoE applications
- Compact ABS plastic housing measuring 1.85" H x 3.36" W x 4.20" D
- 10-year limited warranty for long-term peace of mind
- Made in the United States with quality manufacturing standards
- Lightweight design at approximately 4.97 ounces for easy handling
Specifications
| Specifications | |
|---|---|
| Manufacturer | DITEK Corporation |
| Manufacturer Part Number | DTK-PVP56V |
| Brand Name | DITEK |
| Product Model | DTK-PVP56V |
| Product Name | PoE Data and 56V Power Surge Protector |
| Product Type | PoE Surge Protector |
| Technical Information | |
| Receptacles | RJ-45 |
| Dataline Protection | PoE,Video/Data,Network,Ethernet |
| Power Description | |
| Input Voltage | 64 V DC,56 V DC |
| Physical Characteristics | |
| Product Material | ABS Plastic |
| Height | 1.85" (46.99 mm) |
| Width | 3.36" (85.34 mm) |
| Depth | 4.20" (106.68 mm) |
| Weight (Approximate) | 4.97 oz (141 g) |
| Miscellaneous | |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 10 Year |
User Manual
FAQ
What types of lines does the DTK-PVP56V protect?
The DTK-PVP56V protects Power over Ethernet (PoE), video/data, network, and Ethernet lines. It is designed to safeguard both data and power pathways in mixed-signal environments, supporting applications like IP cameras, VoIP systems, and high-speed networking equipment up to 10GbE speeds without signal degradation.
What input voltage range does this surge protector support?
This surge protector supports input voltages of 64 V DC and 56 V DC. It is specifically engineered for 48V-56V DC power circuits commonly used in PoE applications, providing protection against surges that could damage sensitive networking devices and ensure stable power delivery.
Is the DTK-PVP56V certified for safety and compliance?
Yes, the DTK-PVP56V is UL497B listed and complies with all IEEE Power over Ethernet standards. These certifications ensure that the protector meets industry safety and performance requirements, offering reliable surge protection for PoE and data lines in commercial and institutional settings.
What is the power protection rating of this unit?
The unit features two pairs of power protection, each rated at 6 Amps per pair. This configuration provides robust defense for 48V-56V DC power circuits, effectively diverting surge currents away from connected equipment to prevent damage and maintain operational integrity in PoE deployments.
How is the DTK-PVP56V installed and grounded?
Installation involves connecting RJ-45 cables to the female receptacles. The unit includes an external grounding screw for secure grounding, which is essential for diverting surge currents to ground. This setup enhances safety and ensures effective surge protection in network racks or equipment enclosures.
What warranty does DITEK offer for this surge protector?
DITEK provides a 10-year limited warranty for the DTK-PVP56V. This warranty covers defects in materials and workmanship, offering long-term assurance of quality and reliability for users deploying this protector in critical networking and power applications.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 64 V DC,56 V DC, which helps position the unit for the right load level and installation role.
