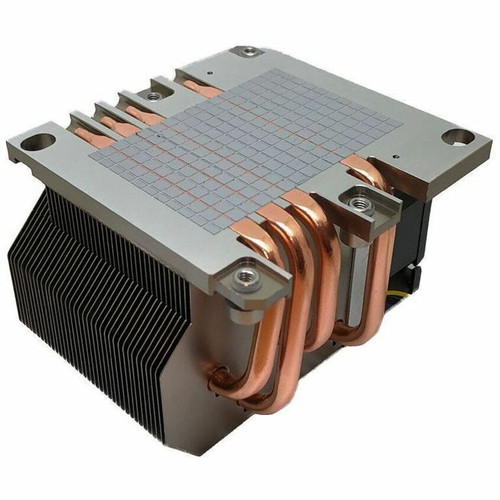

Dynatron 60 Mm High Airflow Cooling Fan And Heatsink 40.60 CFM 7000 Rpm Compact Cooler Fan/Heatsink Diameter Maximum S X B13
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Number of Fans: 1
Fan Bearing Type: Dual Ball Bearing
Fan Speed (Max): 7000 rpm
Maximum Airflow: 40.60 CFM (68.98m³/h)
Noise Levels (A-Weighted): 50 dB(A)
Fan Life: 8.0 Year
Maximum Air Pressure: 14.58mmH2O
Cooler Type: Air
Compatible Intel Socket: P LGA-3647
Connectors: Pin1- (-),Pin2- (+),Pin3- (Techometer/Signal output),Pin4- (PWM)
Heatsink Material: Aluminum
Maximum Fan Diameter: 2.36" (60 mm)
Fan Height: 2.36" (60 mm)
Fan Width: 2.36" (60 mm)
Fan Depth: 0.98" (25 mm)
Height: 3.54" (90 mm)
Width: 3.54" (90 mm)
Depth: 2.60" (66 mm)
Weight (Approximate): 15.17 oz (430 g)
Application/Usage: Server,Processor,CPU
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Flawlessly absorbs the unwanted heat
- Features dual ball bearing for higher heat endurance and reduced noise emissions
- Helps the compatible processors by maintaining a great balance of performance and efficiency
[custom-specifications]
| Specifications | |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | B13 |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Brand Name | Dynatron |
| Product Model | B13 |

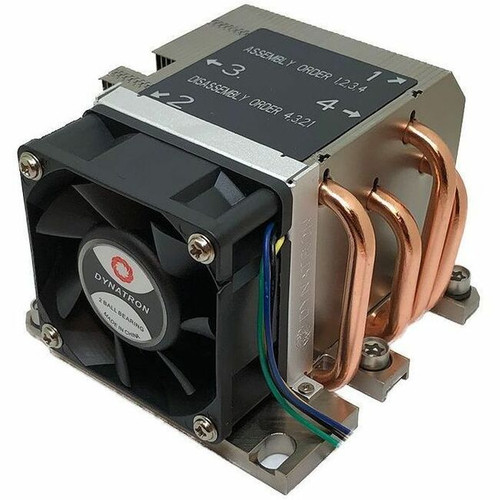

| Product Name | B13 Cooling Fan/Heatsink |
| Product Type | Cooling Fan/Heatsink |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Max) | 7000 rpm |
| Maximum Airflow | 40.60 CFM (68.98m³/h) |
| Noise Levels (A-Weighted) | 50 dB(A) |
| Fan Life | 8.0 Year |
| Maximum Air Pressure | 14.58mmH2O |
| Heatsink Information | |
| Cooler Type | Air |
| Compatible Intel Socket | P LGA-3647 |
| Interfaces/Ports | |
| Connectors | Pin1- (-),Pin2- (+),Pin3- (Techometer/Signal output),Pin4- (PWM) |
| Physical Characteristics | |
| Heatsink Material | Aluminum |
| Maximum Fan Diameter | 2.36" (60 mm) |
| Fan Height | 2.36" (60 mm) |
| Fan Width | 2.36" (60 mm) |
| Fan Depth | 0.98" (25 mm) |
| Height | 3.54" (90 mm) |
| Width | 3.54" (90 mm) |
| Depth | 2.60" (66 mm) |
| Weight (Approximate) | 15.17 oz (430 g) |
| Miscellaneous | |
| Application/Usage | Server,Processor,CPU |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
