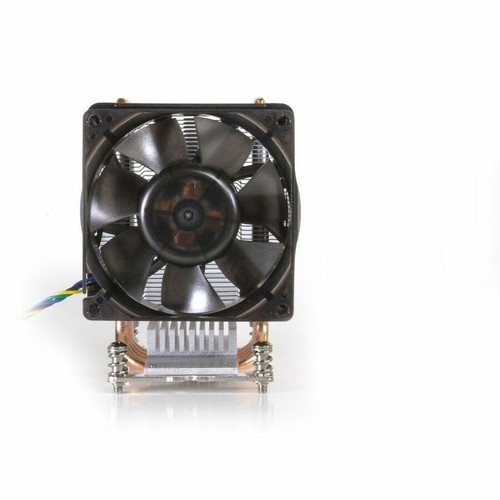

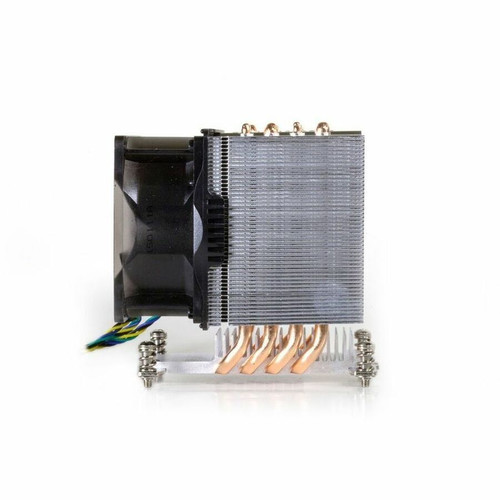

Dynatron Cooling Fan And Heatsink 80 Mm High Airflow Compact Solution Fan/Heatsink Diameter Maximum CFM S X A19
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Number of Fans: 1
Fan Bearing Type: Dual Ball Bearing
Fan Speed (Max): 3800 rpm
Maximum Airflow: 65.40 CFM (111.12m³/h)
Noise Levels (A-Weighted): 43.4 dB(A)
Fan Life: 8.0 Year
Maximum Air Pressure: 9.75mmH2O
Compatible AMD Socket: AM4,AM5
Connectors: Pin1- (-),Pin2- (+),Pin3- (Techometer/Signal output),Pin4- (PWM)
Maximum Fan Diameter: 3.15" (80 mm)
Fan Height: 3.15" (80 mm)
Fan Width: 3.15" (80 mm)
Fan Depth: 1.50" (38 mm)
Height: 4.23" (107.50 mm)
Width: 3.07" (78 mm)
Depth: 4.33" (110 mm)
Weight (Approximate): 1.32 lb (600 g)
Features: Dissipates the Heat
Application/Usage: Server,Processor,CPU,Workstation
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- The fan and heatsink combo lets you experience efficient cooling and wintry air pleasure
- Features dual ball bearing for higher heat endurance and reduced noise emissions
- Pin1- (-) connector enables quick and stable connection with servers
[custom-specifications]
| Specifications | |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | A19 |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Brand Name | Dynatron |
| Product Model | A19 |
| Product Name | A19 Cooling Fan/Heatsink |
| Product Type | Cooling Fan/Heatsink |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Max) | 3800 rpm |
| Maximum Airflow | 65.40 CFM (111.12m³/h) |
| Noise Levels (A-Weighted) | 43.4 dB(A) |
| Fan Life | 8.0 Year |
| Maximum Air Pressure | 9.75mmH2O |
| Heatsink Information | |
| Compatible AMD Socket | AM4,AM5 |
| Interfaces/Ports | |
| Connectors | Pin1- (-),Pin2- (+),Pin3- (Techometer/Signal output),Pin4- (PWM) |
| Physical Characteristics | |
| Maximum Fan Diameter | 3.15" (80 mm) |
| Fan Height | 3.15" (80 mm) |
| Fan Width | 3.15" (80 mm) |
| Fan Depth | 1.50" (38 mm) |
| Height | 4.23" (107.50 mm) |
| Width | 3.07" (78 mm) |
| Depth | 4.33" (110 mm) |
| Weight (Approximate) | 1.32 lb (600 g) |
| Miscellaneous | |
| Features | Dissipates the Heat |
| Application/Usage | Server,Processor,CPU,Workstation |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
