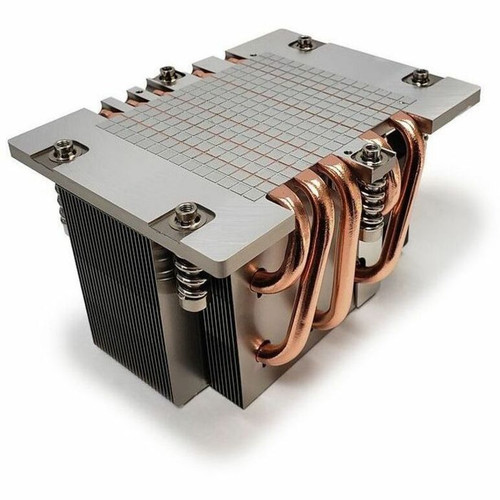

Dynatron Cooling Fan And Heatsink With 60 Mm Diameter Integrated Five Heat Pipe Design For Increased Transfer Fan/Heatsink Maximum CFM S X J10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Number of Fans: 1
Fan Bearing Type: Dual Ball Bearing
Fan Speed (Max): 11000 rpm
Maximum Airflow: 58.31 CFM (99.07m³/h)
Noise Levels (A-Weighted): 59.8 dB(A)
Maximum Air Pressure: 28.8mmH2O
Cooler Type: Air
Number of Heat Pipes: 5
Compatible AMD Socket: SP5
Connectors: Pin#1-Black(-),Pin#2- Yellow(+),Pin#3- Green(Tachometer/ Signal Output),Pin#4- Blue (PWM)
Product Material: Aluminum
Maximum Fan Diameter: 2.36" (60 mm)
Fan Height: 2.36" (60 mm)
Fan Width: 2.36" (60 mm)
Fan Depth: 0.98" (25 mm)
Height: 4.65" (118 mm)
Width: 3.64" (92.40 mm)
Depth: 2.56" (65 mm)
Weight (Approximate): 1.12 lb (510 g)
Application/Usage: Processor,Server,CPU
- Delivers a high airflow while keeping its noise minimal
- Features dual ball bearing for higher heat endurance and reduced noise emissions
- Pin#1-Black(-) connector enables quick and stable connection with processors
[custom-specifications]
| Specifications | |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | J10 |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Brand Name | Dynatron |
| Product Model | J10 |
| Product Name | J10 Cooling Fan/Heatsink |
| Product Type | Cooling Fan/Heatsink |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Max) | 11000 rpm |
| Maximum Airflow | 58.31 CFM (99.07m³/h) |
| Noise Levels (A-Weighted) | 59.8 dB(A) |
| Maximum Air Pressure | 28.8mmH2O |
| Heatsink Information | |
| Cooler Type | Air |
| Number of Heat Pipes | 5 |
| Compatible AMD Socket | SP5 |
| Interfaces/Ports | |
| Connectors | Pin#1-Black(-),Pin#2- Yellow(+),Pin#3- Green(Tachometer/ Signal Output),Pin#4- Blue (PWM) |
| Physical Characteristics | |
| Product Material | Aluminum |
| Maximum Fan Diameter | 2.36" (60 mm) |
| Fan Height | 2.36" (60 mm) |
| Fan Width | 2.36" (60 mm) |
| Fan Depth | 0.98" (25 mm) |
| Height | 4.65" (118 mm) |
| Width | 3.64" (92.40 mm) |
| Depth | 2.56" (65 mm) |
| Weight (Approximate) | 1.12 lb (510 g) |
| Miscellaneous | |
| Application/Usage | Processor,Server,CPU |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
