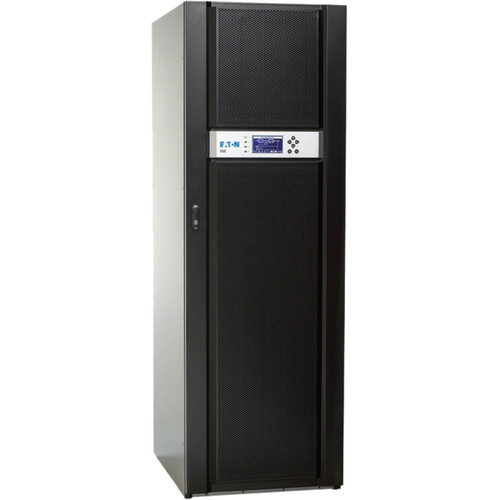

Eaton 9EA02GG05002003 93E 20 kVA Double Conversion Online UPS - Dual Feed - Internal Batteries - 21 Minute Runtime - 208/220V AC Input/Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton UPS employs a double conversion online design, which offers zero transfer time and superior power conditioning compared to line-interactive or standby topologies. The 20 kVA load capacity handles substantial critical loads, while the 60 Hz input and output frequency ensures compatibility with common electrical infrastructures.
The internal battery system uses maintenance-free sealed lead-acid chemistry, reducing upkeep requirements and enhancing reliability. A serial port is included for monitoring and management, allowing integration with power management software for proactive oversight.
This section brings together practical product details such as Overload Protection, Load Capacity (VA), Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This UPS combines high-capacity power protection with a dual-feed design that enhances redundancy and uptime. The internal batteries eliminate external battery cabinet needs, simplifying installation and reducing footprint.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Reliable Power Conditioning, Integrated Battery Solution.
Reliable Power Conditioning
Double conversion technology ensures consistent output voltage and frequency, protecting sensitive equipment from sags, surges, and harmonics.
- Zero transfer time
- Clean power output
- Isolation from grid issues
Integrated Battery Solution
Pre-installed maintenance-free batteries provide immediate backup without additional components, streamlining deployment.
- 21-minute full-load runtime
- Sealed lead-acid chemistry
- Reduced maintenance
Deployment / Use Cases
The Eaton 20 kVA UPS is engineered for environments where power continuity is critical, such as data centers, industrial control systems, and healthcare facilities. Its dual-feed capability supports redundant power sources, minimizing single points of failure.
Ideal for protecting server racks, networking gear, and process automation equipment, this UPS ensures operational integrity during outages or unstable grid conditions. The robust construction and overload protection make it suitable for high-demand applications.
This section brings together practical product details such as Overload Protection, Load Capacity (VA), Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Backup
Provides uninterrupted power to servers and storage arrays, maintaining uptime during utility failures.
Industrial & Critical Infrastructure
Safeguards control systems and monitoring equipment in manufacturing, utilities, and telecommunications.
Physical Profile
This UPS features a substantial footprint with dimensions of 53.50" (1358.90 mm) height, 20.90" (530.86 mm) width, and 31.50" (800.10 mm) depth, designed for stable floor-mounted installation. The approximate weight of 1058 lb (479900.73 g) underscores its robust build quality, suitable for secure placement in equipment rooms or dedicated power closets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 53.50" (1358.90 mm), 20.90" (530.86 mm), 31.50" (800.10 mm), 1058 lb (479900.73 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 20.90" (530.86 mm)
- Depth
- 31.50" (800.10 mm)
- Height
- 53.50" (1358.90 mm)
- Weight
- 1058 lb (479900.73 g)
Highlights
- 20 kVA double conversion online UPS for high-capacity power protection
- Dual-feed design enhances redundancy and uptime
- Internal maintenance-free sealed lead-acid batteries included
- 21-minute full-load runtime ensures extended backup during outages
- 208 V AC and 220 V AC input/output voltage compatibility
- 60 Hz frequency for standard North American and international use
- Overload protection safeguards connected equipment
- Serial port enables monitoring and management integration
- Environmentally friendly design with reduced maintenance needs
- Substantial construction with dimensions optimized for floor mounting
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9EA02GG05002003 |
| Brand Name | Eaton |
| Product Model | 93E |
| Product Name | 20 kVA UPS Dual Feed with Internal Batteries |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 20 kVA |
| Input Voltage | 208 V AC,220 V AC |
| Output Voltage | 208 V AC,220 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 21 Minute |
| Physical Characteristics | |
| Height | 53.50" (1358.90 mm) |
| Width | 20.90" (530.86 mm) |
| Depth | 31.50" (800.10 mm) |
| Weight (Approximate) | 1058 lb (479900.73 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
This Eaton UPS has a load capacity of 20 kVA, making it suitable for protecting substantial critical loads such as server racks, networking equipment, and industrial control systems in environments where high-availability power is essential.
How long does the battery backup last at full load?
The internal batteries provide 21 minutes of runtime at full load, ensuring continuous operation during power interruptions. This duration supports orderly shutdowns or transition to backup generators in critical applications.
What input and output voltages does this UPS support?
This UPS supports both 208 V AC and 220 V AC input and output voltages, offering compatibility with standard North American three-phase power systems and similar international configurations for flexible deployment.
Does this UPS include internal batteries?
Yes, this Eaton UPS comes with integrated maintenance-free sealed lead-acid batteries, eliminating the need for external battery cabinets and simplifying installation while providing immediate backup capability.
What is the double conversion online topology?
Double conversion online topology continuously converts incoming AC power to DC and then back to AC, providing zero transfer time and superior power conditioning. This isolates connected equipment from grid disturbances like sags, surges, and harmonics.
What are the physical dimensions and weight?
The UPS measures 53.50" (1358.90 mm) in height, 20.90" (530.86 mm) in width, and 31.50" (800.10 mm) in depth, with an approximate weight of 1058 lb (479900.73 g). Its robust construction is designed for stable floor-mounted installation in equipment rooms.
What power capacity is listed for this UPS?
The listed power specification is 20 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,220 V AC, which helps position the unit for the right load level and installation role.
