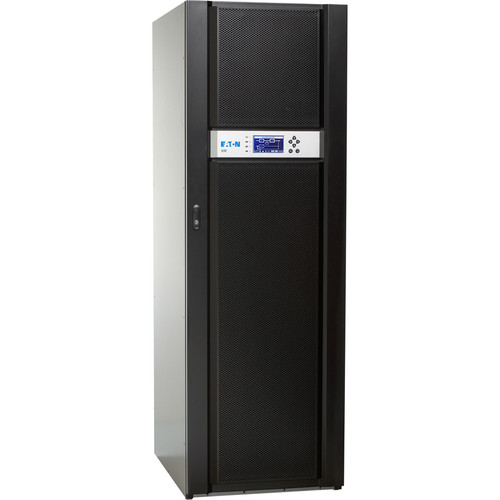

Eaton 9EA02GG05022003 20 kVA UPS Dual Feed with Internal Batteries & MS Network Card - 21 Minute Stand-by - 208/220 V AC Input/Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton UPS delivers 20 kVA of power capacity, with input and output voltages configurable for 208 V AC or 220 V AC at 60 Hz. The double conversion online topology ensures zero transfer time during power events, providing seamless protection for sensitive equipment. The internal battery system is maintenance-free and uses sealed lead-acid chemistry, supporting a 21-minute runtime under full load conditions.
Connectivity includes a serial port for local management, complemented by the integrated MS network card for remote monitoring and control via network interfaces. The UPS features overload protection to safeguard against excessive current draw, and its environmentally friendly design aligns with modern sustainability standards.
This section brings together practical product details such as Overload Protection, Load Capacity (VA), Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Eaton 20 kVA UPS combines high power capacity with integrated features that simplify deployment and enhance reliability. Its dual-feed design supports redundant power inputs, reducing single points of failure in critical systems.
Integrated Network Management
The built-in MS network card enables remote monitoring, configuration, and alerts via standard network protocols, allowing IT staff to manage power infrastructure without physical access.
- Remote monitoring
- Network-based alerts
- Configuration management
Maintenance-Free Operation
Sealed lead-acid batteries require no routine maintenance, reducing total cost of ownership and ensuring consistent performance over the battery lifecycle.
- No watering needed
- Reduced service visits
- Long-term reliability
Robust Power Protection
Double conversion topology and overload protection defend connected equipment against power anomalies, surges, and overload conditions, minimizing downtime risks.
- Zero transfer time
- Overload safety
- Voltage regulation
Deployment / Use Cases
This 20 kVA UPS is engineered for environments where uninterrupted power is non-negotiable. Its high capacity and dual-feed capability make it ideal for protecting server racks, network closets, and industrial control systems that demand both reliability and scalability.
Common applications include data center edge deployments, manufacturing PLCs, healthcare imaging equipment, and telecommunications infrastructure. The MS network card supports integration into existing network management frameworks, enabling centralized oversight of power health across distributed sites.
Data Center Edge
Provide backup power for server racks and networking gear in colocation or branch office data centers, ensuring continuity during grid fluctuations or outages.
Industrial Automation
Safeguard programmable logic controllers, HMIs, and sensors in manufacturing plants, where power interruptions can halt production lines and cause material loss.
Physical Profile
The UPS measures 53.50" (1358.90 mm) in height, 20.90" (530.86 mm) in width, and 31.50" (800.10 mm) in depth, with an approximate weight of 1058 lb (479900.73 g). These dimensions accommodate standard rack-mount or floor-standing installations in server rooms and equipment closets. The substantial weight reflects its robust internal components and battery bank, designed for stability and durability in operational environments.
- Width
- 20.90" (530.86 mm)
- Depth
- 31.50" (800.10 mm)
- Height
- 53.50" (1358.90 mm)
- Weight
- 1058 lb (479900.73 g)
Highlights
- 20 kVA double conversion online UPS for high-capacity power protection
- Internal maintenance-free sealed lead-acid batteries with 21-minute full-load runtime
- Dual-feed design supports 208 V AC and 220 V AC input/output voltages at 60 Hz
- Integrated MS network card enables remote monitoring and management
- Overload protection safeguards connected equipment from excessive current draw
- Serial port provides local connectivity for configuration and diagnostics
- Environmentally friendly construction aligns with sustainability initiatives
- Robust physical profile suitable for rack-mount or floor-standing deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9EA02GG05022003 |
| Brand Name | Eaton |
| Product Model | 93E |
| Product Name | 20 kVA UPS Dual Feed with Internal Batteries & MS Network Card |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 20 kVA |
| Input Voltage | 208 V AC,220 V AC |
| Output Voltage | 208 V AC,220 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 21 Minute |
| Physical Characteristics | |
| Height | 53.50" (1358.90 mm) |
| Width | 20.90" (530.86 mm) |
| Depth | 31.50" (800.10 mm) |
| Weight (Approximate) | 1058 lb (479900.73 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
This Eaton UPS delivers 20 kVA (kilovolt-amperes) of power capacity, suitable for protecting high-load equipment like server racks, industrial controls, or network infrastructure. The double conversion online topology ensures consistent output voltage and frequency, making it reliable for critical applications.
How long does the battery backup last at full load?
At full load, the internal batteries provide 21 minutes of runtime. This duration allows for orderly shutdown of connected systems or transition to generator power during extended outages, minimizing data loss and equipment damage.
What input and output voltages does this UPS support?
The UPS supports both 208 V AC and 220 V AC input and output voltages, operating at 60 Hz. This flexibility accommodates standard North American three-phase power configurations, ensuring compatibility with existing electrical infrastructure.
Does this UPS include remote management capabilities?
Yes, it includes an integrated MS network card that enables remote monitoring, configuration, and alerting via network connections. This allows IT administrators to manage power status, receive notifications, and perform diagnostics without physical access to the unit.
What type of batteries are used, and do they require maintenance?
The UPS uses maintenance-free sealed lead-acid batteries. These batteries are designed for long service life without routine watering or cleaning, reducing maintenance costs and ensuring reliable performance in various environmental conditions.
Is this UPS suitable for rack-mount installation?
With dimensions of 53.50" H x 20.90" W x 31.50" D and a weight of approximately 1058 lb, this UPS is built for robust floor-standing or rack-mount deployment. Its form factor fits standard server rack widths, making it ideal for data center or equipment room installations where space optimization is key.
What power capacity is listed for this UPS?
The listed power specification is 20 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,220 V AC, which helps position the unit for the right load level and installation role.
