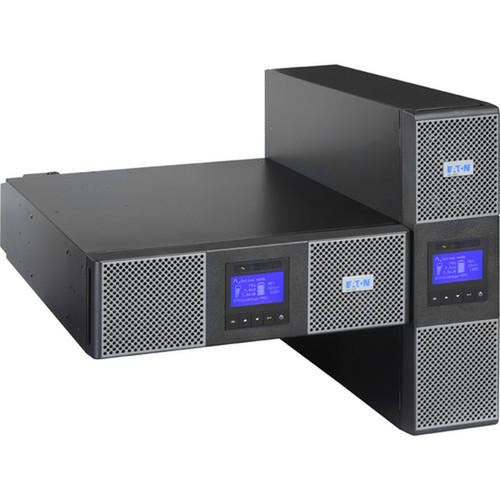

Eaton 9PX11KHW 11kVA Rack/Tower UPS - Double Conversion Online - 6U - Hardwired - 110/220V AC Input - 208-250V AC Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously conditions incoming power, providing isolation from grid disturbances. The 11 kVA capacity supports substantial server, storage, or network loads, with input accepting 110V or 220V AC and output configurable across 200-250V AC ranges.
Advanced battery management with three-stage charging extends battery life, while the interactive LCD displays real-time load and system status. The unit includes overload protection and supports extended runtime through optional battery modules.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Transfer Time, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Eaton 9PX series combines enterprise-grade power protection with flexible deployment options. Its zero-transfer-time design ensures no interruption to connected equipment, while the comprehensive management suite enables remote monitoring and control.
ABM Battery Technology
Exclusive Adaptive Battery Management with three-stage charging increases internal battery life by up to 50% compared to conventional charging methods.
- Optimized charging cycles
- Reduced battery stress
- Extended service intervals
Network Management Capabilities
Included NETWORK-M2 Gigabit network card provides full remote access via SNMP, web interface, and Eaton's Intelligent Power Software for centralized monitoring and control.
- SNMP manageable
- Web-based interface
- Software suite included
Runtime Flexibility
Optional extended battery modules allow customization of backup duration to match specific application requirements, from basic shutdown protection to extended runtime needs.
- Modular expansion
- Scalable runtime
- 3U battery modules
Deployment / Use Cases
The Eaton 9PX11KHW is engineered for IT infrastructure protection in data centers, server rooms, and network closets. Its rack/tower dual capability makes it suitable for both dedicated rack environments and standalone tower installations.
Typical applications include protecting server racks, storage arrays, network equipment, and telecommunications systems where clean, uninterrupted power is essential for business continuity. The hardwired configuration supports higher power demands than plug-and-receptacle designs.
Data Center Rack Deployment
Install directly in standard 19-inch racks alongside servers and networking gear. The 6U height optimizes rack space while providing substantial power capacity for multiple equipment loads.
Tower Installation for Smaller IT Rooms
Use the included tower pedestals for standalone placement where rack infrastructure isn't available. This flexibility supports mixed environments and transitional deployments.
Physical Profile
The UPS measures 10.20" (259.08 mm) in height, 17" (431.80 mm) in width, and 28" (711.20 mm) in depth, with a substantial 189.60 lb weight reflecting its robust construction and battery capacity. The 6U rack height allows efficient use of vertical rack space, while the tower configuration provides stability with included pedestals.
- Width
- 17" (431.80 mm)
- Depth
- 28" (711.20 mm)
- Height
- 6U
- Weight
- 189.60 lb (86000 g)
What's in the Box
The package includes all components necessary for both rack and tower deployment, along with comprehensive management tools.
Highlights
- 11 kVA double conversion online UPS with zero transfer time
- Rack/tower convertible design with included 6U rack kit and tower pedestals
- Hardwired connections for high-power applications
- 110V/220V AC input with 200-250V AC configurable output
- 3-minute full-load and 10-minute half-load runtime
- SNMP manageable with included network card and software suite
- ABM technology extends battery life by up to 50%
- Interactive LCD displays real-time system status
- Optional extended battery modules for additional runtime
- 3-year limited warranty and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX11KHW |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX 11kVA Rack/Tower Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 11 kVA |
| Input Voltage | 110 V AC,220 V AC |
| Output Voltage | 208 V AC,200 V AC,220 V AC,230 V AC,240 V AC,250 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.20" (259.08 mm) |
| Width | 17" (431.80 mm) |
| Depth | 28" (711.20 mm) |
| Weight (Approximate) | 189.60 lb (86000 g) |
| Miscellaneous | |
| Package Contents | 9PX 11kVA Rack/Tower Mountable UPS 9PX11KPM 11 kVA 3U UPS Power Module 9PXEBM240RT 3U Extended Battery Module Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver |
| Software Included | Eaton Intelligent Power Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9PX11KHW provides 11 kVA (kilovolt-ampere) of power capacity. This double conversion online UPS can support substantial IT loads including servers, storage systems, and networking equipment with clean, conditioned power output.
How long will this UPS run on battery power?
At full load, the internal batteries provide approximately 3 minutes of runtime, allowing for safe shutdown procedures. At half load, runtime extends to approximately 10 minutes. Additional runtime can be achieved through optional extended battery modules.
Can this UPS be installed in both rack and tower configurations?
Yes, the Eaton 9PX11KHW is designed for dual deployment. It includes a 4-post rail kit for 6U rack mounting in standard 19-inch racks, plus tower pedestals for standalone installation. The 6U height optimizes rack space utilization.
What input voltages does this UPS accept?
This UPS accepts either 110V AC or 220V AC input, providing flexibility for different electrical infrastructures. The output is configurable across a range of voltages from 200V AC to 250V AC to match connected equipment requirements.
How is this UPS managed and monitored?
The included NETWORK-MS Web/SNMP card enables comprehensive remote management via SNMP protocols and a web interface. Eaton's Intelligent Power Software Suite provides centralized monitoring and control, with additional connectivity through serial and USB ports.
What type of batteries does this UPS use and are they maintenance-free?
The UPS utilizes maintenance-free sealed lead-acid batteries that require no routine maintenance. Eaton's Adaptive Battery Management (ABM) technology with three-stage charging helps extend battery life by up to 50% compared to conventional charging methods.
What power capacity is listed for this UPS?
The listed power specification is 11 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 110 V AC,220 V AC, which helps position the unit for the right load level and installation role.
