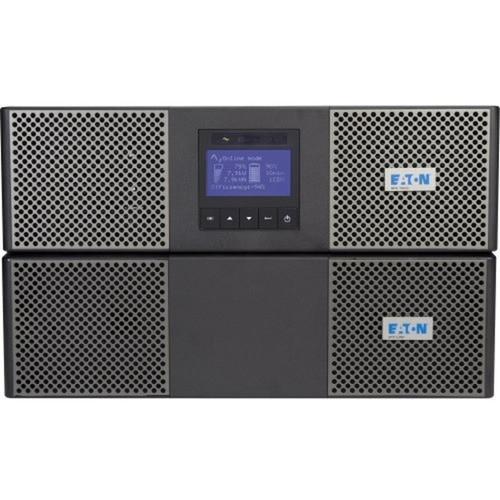

Eaton 9PX8K 8kVA Double Conversion Online UPS - 6U Rack/Tower - 5 Min Full Load Runtime - 110/220V AC Input - 200-250V AC Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Double Conversion Technology
Converts incoming AC power to DC, then back to clean AC output, providing complete isolation from input power anomalies including voltage spikes, sags, harmonics, and frequency variations.
- 0 ns transfer time ensures seamless transition to battery
- Maintains stable output regardless of input quality
- Protects sensitive electronic equipment from power disturbances
Battery & Runtime Performance
Features maintenance-free sealed lead-acid batteries with Eaton's exclusive ABM (Advanced Battery Management) technology that extends battery life through optimized three-stage charging.
- 5-minute runtime at full 8 kVA load
- 16-minute runtime at half load
- Optional 9PXEBM240RT 3U extended battery modules available for additional runtime
Key Product Advantages
The Eaton 9PX series combines robust power protection with intelligent management features designed for demanding business environments. Its dual deployment flexibility allows organizations to optimize rack space utilization while maintaining power redundancy for critical systems.
Intelligent Power Management
Comprehensive monitoring and control capabilities through multiple interfaces including SNMP, USB, and serial connections. The included Intelligent Power Software Suite enables automated shutdown procedures, event logging, and centralized management across distributed UPS installations.
- Real-time load information via interactive LCD
- Remote management via NETWORK-M2 Gigabit network card
- Automated battery testing and health monitoring
Deployment Flexibility
Designed for both rack-mount and tower configurations with included 4-post rail kit and tower pedestals. The 6U form factor optimizes rack space while providing substantial power capacity for server racks and equipment cabinets.
- Includes all mounting hardware for both configurations
- Rear-mount maintenance bypass option available
- Suitable for data centers, server rooms, and industrial applications
Deployment / Use Cases
This 8 kVA UPS is engineered for environments requiring reliable power protection for substantial equipment loads. Its double conversion topology makes it ideal for applications where power quality directly impacts operational continuity and equipment longevity.
In data center environments, the unit protects server racks, storage arrays, and networking infrastructure from power anomalies that can cause data corruption, hardware damage, or unexpected downtime. The SNMP management capabilities integrate seamlessly with existing network monitoring systems for centralized power management.
Server Room & Data Center Protection
Provides clean power to multiple server racks, network switches, and storage systems. The 8 kVA capacity supports high-density equipment configurations while the rack-mount design optimizes valuable data center floor space.
- Protects against data loss during outages
- Maintains equipment operation for safe shutdown procedures
- Integrates with data center management systems
Industrial & Manufacturing Applications
Safeguards process control systems, PLCs, and industrial automation equipment from power disturbances that can disrupt manufacturing operations. The wide input voltage range accommodates industrial power environments with variable voltage conditions.
- Hardwired connection for permanent installation
- Robust construction for industrial environments
- Maintains process continuity during power events
Physical Profile
The UPS features a substantial industrial-grade enclosure measuring 10.20" (259.08 mm) in height, 17" (431.80 mm) in width, and 30" (762 mm) in depth. At 205.03 pounds, the unit requires proper handling equipment for installation. The design includes integrated cable management and ventilation systems to maintain optimal operating temperatures during extended runtime scenarios.
- Width
- 17" (431.80 mm)
- Depth
- 30" (762 mm)
- Height
- 6U
- Weight
- 205.03 lb (93000 g)
What's in the Box
The complete package includes all necessary components for immediate deployment in either rack-mount or tower configuration.
Highlights
- 8 kVA double conversion online UPS with 0 ns transfer time
- 5-minute runtime at full load, 16 minutes at half load
- Rack/tower convertible design with included 6U rack rails and tower pedestals
- Wide input voltage range: 110 V AC and 220 V AC
- Multiple output voltages: 200 V AC to 250 V AC
- SNMP, USB, and serial management interfaces
- Includes NETWORK-M2 Gigabit network card for remote management
- Eaton ABM technology extends battery life by 50%
- Interactive LCD displays real-time load and battery information
- 3-year limited warranty with RoHS compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX8K |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX 8kVA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-30R,Hardwired |
| Receptacle Detail | 3 x NEMA L6-30R |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 8 kVA |
| Input Voltage | 110 V AC,220 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC,250 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| Battery Information | |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 16 Minute |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.20" (259.08 mm) |
| Width | 17" (431.80 mm) |
| Depth | 30" (762 mm) |
| Weight (Approximate) | 205.03 lb (93000 g) |
| Miscellaneous | |
| Package Contents | 9PX 8kVA Tower/Rack Mountable UPS 9PXEBM240RT 3U Extended Battery Module MBP11K208 Rear-Mount Maintenance Bypass Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver |
| Software Included | Eaton Intelligent Power Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
This Eaton 9PX UPS provides 8 kVA (kilovolt-ampere) of power capacity, which translates to substantial load protection for server racks, networking equipment, and industrial systems. The double conversion online topology ensures clean power output regardless of input quality, making it suitable for environments with unstable power conditions or sensitive electronic equipment.
How long will this UPS run on battery power?
At full 8 kVA load, the internal batteries provide 5 minutes of runtime, allowing sufficient time for safe system shutdown procedures. At half load (4 kVA), runtime extends to 16 minutes. For extended runtime requirements, optional 9PXEBM240RT 3U extended battery modules can be added to significantly increase backup duration based on specific load requirements.
Can this UPS be installed in both rack and tower configurations?
Yes, the Eaton 9PX is designed for dual deployment flexibility. It includes a complete 4-post rail kit for standard 19-inch rack mounting, occupying 6U of rack space. For tower installation, the package includes tower pedestals that support the unit in freestanding configurations. This flexibility allows organizations to optimize their installation based on available space and equipment layout requirements.
What input voltages does this UPS support?
The UPS accepts two input voltage ranges: 110 V AC and 220 V AC. This dual-voltage capability provides installation flexibility across different electrical environments and regions. The unit automatically detects and adjusts to the available input voltage, simplifying deployment in locations with varying power infrastructure or when equipment is relocated between facilities with different power standards.
What management interfaces are included with this UPS?
Multiple management interfaces are integrated: SNMP management via the included NETWORK-M2 Gigabit network card enables remote monitoring and control over Ethernet networks. USB and RS-232 serial ports provide local management connections. The Intelligent Power Software Suite enables centralized management of multiple UPS units, automated shutdown procedures, and comprehensive event logging for power quality analysis and reporting.
What is included in the warranty for this Eaton UPS?
Eaton provides a 3-year limited warranty covering the UPS unit and internal batteries against defects in materials and workmanship. The warranty includes protection for the double conversion electronics, battery systems, and management components. The unit is also RoHS (Restriction of Hazardous Substances) compliant, meeting international environmental standards for electronic equipment manufacturing and disposal.
What power capacity is listed for this UPS?
The listed power specification is 8 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 110 V AC,220 V AC, which helps position the unit for the right load level and installation role.
