Eaton 9PX5KTF5G2 9PX G2 5000VA/5kW Double Conversion Online UPS - 6U Rack/Tower - 230V AC Input - Pure Sine Wave Output
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton 9PX G2 UPS operates on a single-phase 230V AC input with an input current of 24.40 A. It delivers a regulated output across a wide voltage range from 100V to 240V AC, supporting both 50 Hz and 60 Hz frequencies with a power factor of 1. The electrical design includes an EMI/RFI noise filter and surge suppression to protect connected equipment from line noise and transient voltage spikes.
System efficiency reaches 96.3% in AC mode and 98.9% in Eco mode, reducing operational costs and heat generation. The DC system operates at 180 V DC, utilizing valve-regulated, hot-swappable lead-acid batteries. The unit includes multiple communication and control ports: serial, USB, and an EPO (Emergency Power Off) port for integration into facility safety systems.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The 9PX G2 series represents Eaton's commitment to reliability and intelligent power management in critical infrastructure. Its double conversion technology ensures that connected equipment receives clean, stable power regardless of utility conditions, eliminating downtime risks from common grid issues.
Advanced Power Protection
Complete isolation from input power problems safeguards servers and network gear from data corruption and hardware damage caused by voltage sags, spikes, and harmonics.
- Double Conversion Online Topology
- Pure Sine Wave Output
- Surge Suppression & EMI/RFI Filtering
Intelligent Battery Management
The ABM+ system continuously monitors battery health, optimizing charge cycles to extend service life and providing accurate runtime predictions.

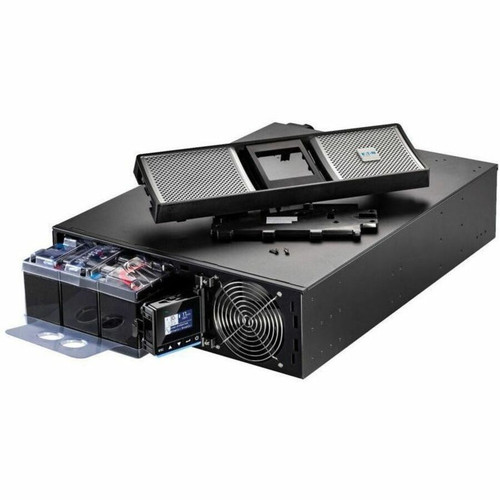

- Hot-Swappable Battery Design
- 3-Hour Typical Recharge
- Replaceable Battery Pack
Comprehensive Monitoring

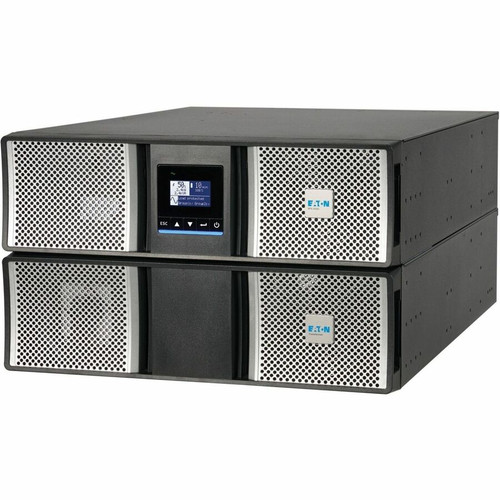

An LCD display provides clear status information, while support for network management cards enables remote monitoring, configuration, and graceful shutdowns across the network.
- LCD Interface
- Network-M3 Card Support
- USB & Serial Connectivity
Deployment / Use Cases
This 5000VA UPS is engineered for environments where power reliability directly impacts operational continuity and data integrity. Its capacity and runtime make it an ideal backbone for supporting concentrated IT loads in controlled settings.
In a data center or server room, it can protect a rack containing multiple servers, storage arrays, and core network switches. For network infrastructure, it ensures that edge routers, switches, and security appliances remain online during short-term outages, maintaining network availability. In healthcare, retail, and government settings, it safeguards critical point-of-sale systems, medical imaging equipment, and communication servers from power disturbances.
Data Center & Server Protection
Provides clean, uninterrupted power to rack-mounted servers and storage, preventing data loss and allowing for orderly shutdowns during extended outages.
Network Infrastructure Support
Keeps core and edge networking equipment—switches, routers, firewalls—operational, ensuring network services remain available during power events.
Physical Profile

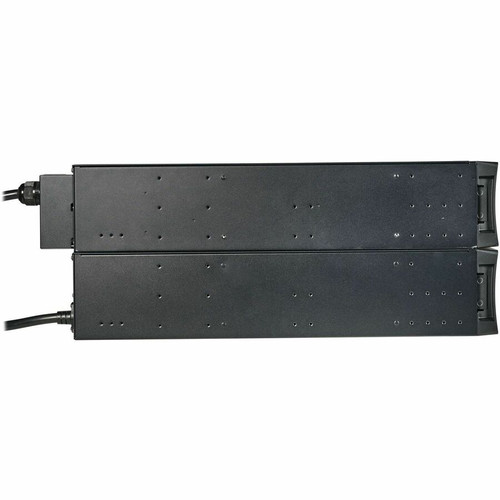

The UPS is built for standard 19-inch equipment racks, occupying 6U of vertical space with dimensions of 10.20" (H) x 17.30" (W) x 27" (D). Its substantial weight of 203 lb reflects a robust internal construction with large battery capacity. The design includes integrated rack-mounting hardware and optional tower support stands, offering installation flexibility for both rack and standalone floor placements. The unit operates within an ambient temperature range of 32°F to 104°F (0°C to 40°C).
- Width
- 17.30" (439.42 mm)
- Depth
- 27" (685.80 mm)
- Height
- 10.20" (259.08 mm)
- Weight
- 203 lb (92079.25 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes all necessary components for installation and operation in either rack or tower mode.
Highlights
- 5000VA / 5kW double conversion online UPS for maximum power protection
- Pure sine wave output ensures compatibility with sensitive server and network equipment
- Flexible 6U rack-mount or tower form factor for versatile deployment
- Hot-swappable, valve-regulated lead-acid batteries for easy maintenance
- Advanced Battery Management (ABM+) extends battery life and reliability
- LCD display and support for network management cards (Network-M3, INDGW-M2, Relay-MS)
- Wide output voltage range (100V-240V AC) supports global equipment
- High efficiency: 96.3% (AC Mode) and 98.9% (Eco Mode) to reduce operating costs

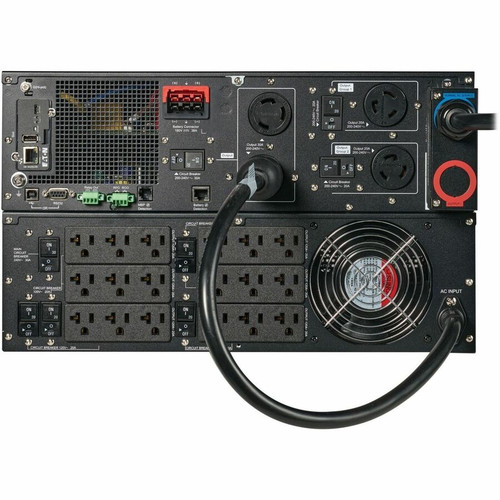

- Includes 18 x NEMA 5-20R, 2 x NEMA L6-20R, and 1 x NEMA L6-30R outlets
- Backed by a 3-year limited warranty and is Energy Star qualified
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX5KTF5G2 |
| Brand Name | Eaton |
| Product Series | 9PX G2 |
| Product Model | 9PX5KTF5G2 |
| Product Name | 9PX G2 9PX5KTF5G2 5000VA Rack/tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P,Hardwired |
| Receptacle Type | NEMA 5-20R,NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 18 x NEMA 5-20R,2 x NEMA L6-20R,1 x NEMA L6-30R,1 x Hardwired |
| Cord Length | 10 ft (3.05 m) |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 96.3% (AC Mode),98.9% (Eco Mode) |
| Application/Usage | Mission Critical Equipment,Network,IT Equipment,Data Center,Electronic,Edge Computing,Education,Government,Healthcare,Retail,Server,Switch,Network Equipment |
| Surge Suppression | Yes |
| Features | Audible Alarm,Advanced Battery Management (ABM+) |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
| Input Voltage | 230 V AC |
| Input Current | 24.40 A |
| Output Voltage | 240 V AC,230 V AC,220 V AC,208 V AC,200 V AC,100 V AC,110 V AC,120 V AC |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network-M3 Card,INDGW-M2 Card,Relay-MS Card |
| Alarm | Utility Power Failure,Low Battery,Overload,UPS Fault,Battery Fault,Remote Shutdown |
| Controls/Indicators | |
| Status Indicators | LED Indicators |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 9.40 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 935 BTU/h |
| Physical Characteristics | |
| Height | 10.20" (259.08 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 27" (685.80 mm) |
| Rack Height | 6U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 203 lb (92079.25 g) |
| Miscellaneous | |
| Package Contents | 9PX G2 9PX5KTF5G2 5000VA Rack/tower UPS 9PXTFMR5G2 120V Step-down Transformer NETWORK-M3 Gigabit Network Card USB Cable RS-232 Cable Cable Gland for Hardwire Connection Rack-mounting Hardware Tower Support Stands Quick Start Guide |
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
This Eaton 9PX G2 UPS has a load capacity of 5000 Volt-Amps (5 kVA) and 5000 Watts (5 kW). This capacity is designed to support critical IT equipment like servers, network switches, and storage arrays, providing sufficient power to maintain operations during an outage and allow for a controlled shutdown if needed.
How long will this UPS provide backup power at full load?
At its full rated load of 5 kW, this UPS provides a backup runtime of 3.50 minutes. This runtime is sufficient to bridge short power interruptions or initiate an automated graceful shutdown of connected equipment to prevent data loss and hardware damage.
What type of power output does this UPS provide?
The UPS delivers a pure sine wave output. This is the cleanest form of AC power, identical to utility power, which is essential for the safe and efficient operation of sensitive electronic equipment like servers, medical devices, and telecom gear, preventing issues caused by modified sine waves.
Can this UPS be installed in a standard equipment rack?
Yes, this UPS is designed for a standard 19-inch equipment rack and occupies 6U of vertical rack space (approximately 10.2 inches high). It includes all necessary rack-mounting hardware. It also comes with tower support stands for use as a standalone floor-standing unit.
What input voltage does this UPS require?

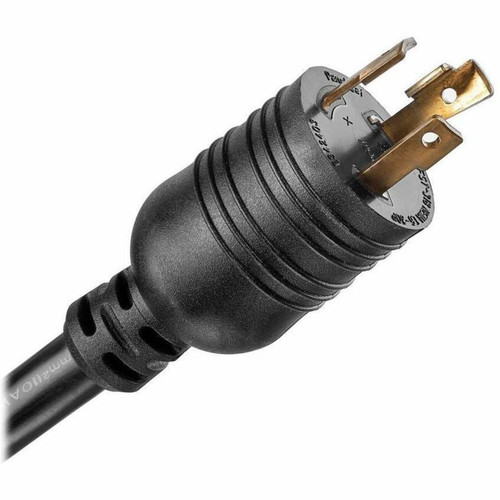

This UPS requires a 230 Volt AC single-phase input. It is equipped with a NEMA L6-30P plug for connection to a corresponding 230V outlet. The unit also supports a hardwired connection for permanent installations.
What management and monitoring options are available?
The UPS features a front-panel LCD for local status monitoring. For remote management, it supports optional network management cards like the Network-M3, INDGW-M2, and Relay-MS cards. It also includes standard USB and serial ports for direct connection to a server or network management software for monitoring, configuration, and automated shutdowns.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 230 V AC, which helps position the unit for the right load level and installation role.
