Eaton 9PX6K-10 9PX UPS - 6 kVA / 5. 4 kW Double Conversion Online - 3U Rack/Tower - 120/230V AC Input - 200-240V AC Output - Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously conditions incoming power, providing complete isolation from utility disturbances including sags, surges, harmonics, and frequency variations. The 6 kVA (5400W) capacity supports substantial loads, while the pure sine wave output ensures compatibility with power factor corrected (PFC) power supplies found in modern servers and network equipment.
The unit features multiple connectivity options including serial, USB HID-compliant, and Ethernet ports for integration with power management software. The graphical LCD display provides real-time status monitoring of load, battery health, and input/output conditions. With 45 dB(A) sound emission, the UPS operates quietly in office and data center environments.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Eaton 9PX6K-10 combines enterprise-grade power protection with flexible deployment options and intelligent management features. Its double conversion topology ensures zero transfer time during outages, while the wide input voltage range accommodates varying utility conditions without draining battery reserves.
Extended Battery Life
Eaton's exclusive ABM technology with three-stage charging optimizes battery performance, increasing internal battery life by up to 50% compared to conventional charging methods.
- Intelligent float voltage adjustment
- Temperature-compensated charging
- Periodic battery testing
Flexible Deployment

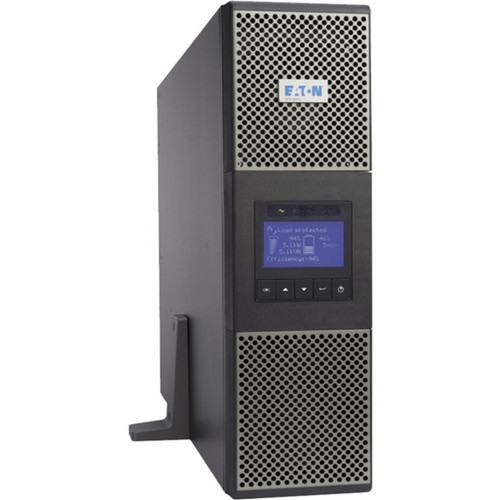

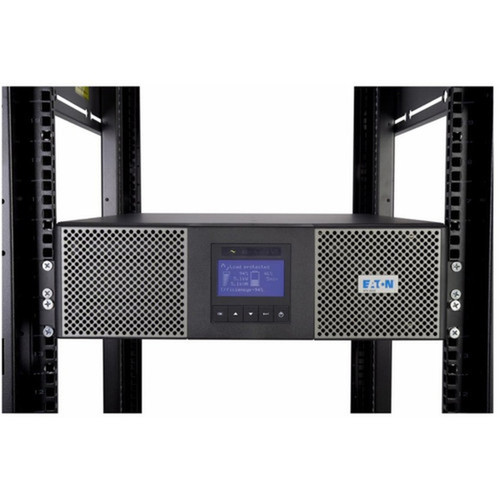

The 3U rack-mountable design includes tower conversion pedestals, allowing installation in standard server racks or as a standalone tower unit.
- Includes 4-post rail kit
- Tower pedestals included
- Black and silver finish
Comprehensive Management
The included Network-M3 card enables full remote monitoring and control via web browser, SNMP, or Eaton's Intelligent Power Software Suite.
- Gigabit Ethernet interface
- Environmental monitoring inputs
- Configurable alerts and shutdown sequences
Deployment / Use Cases
The Eaton 9PX6K-10 is designed for environments where continuous uptime is critical. Its 6 kVA capacity makes it suitable for protecting server racks, network closets, medical equipment, and industrial control systems that cannot tolerate power interruptions.
In IT environments, the UPS provides sufficient runtime for graceful shutdown of virtualized servers and storage arrays during extended outages. For edge computing deployments, the wide input voltage range accommodates variable utility power quality while maintaining clean output. Healthcare applications benefit from the pure sine wave output that prevents interference with sensitive diagnostic equipment.
Server Room Protection
Protect critical server infrastructure with sufficient capacity for multiple 1U-2U servers, network switches, and storage devices in a standard rack configuration.
Industrial Automation
Ensure continuous operation of PLCs, HMIs, and control systems in manufacturing environments where power disturbances can cause costly production downtime.
Physical Profile
The Eaton 9PX6K-10 features a durable black and silver enclosure designed for both rack and tower deployment. With dimensions of 5.10" H × 17.30" W × 28.40" D (129.54 × 439.42 × 721.36 mm), the unit occupies 3U of rack space while providing substantial power capacity. The 106 lb weight includes internal batteries, with the design accommodating hot-swappable battery replacement without system shutdown.
- Width
- 17.30" (439.42 mm)
- Depth
- 28.40" (721.36 mm)
- Height
- 5.10" (129.54 mm)
- Weight
- 45 dB(A)
What's in the Box
The Eaton 9PX6K-10 ships complete with all necessary components for immediate deployment in rack or tower configurations.
Highlights
- 6 kVA / 5.4 kW double conversion online UPS with pure sine wave output
- Supports 120V and 230V AC input with 200-240V AC configurable output
- 3U rack/tower design with included conversion pedestals and rail kit
- Hot-swappable, user-replaceable sealed lead acid batteries
- Includes Network-M3 Gigabit network card for remote management
- Graphical LCD display for real-time status monitoring
- ABM technology extends battery life by up to 50%
- Serial, USB, and Ethernet connectivity options
- Suitable for IT, medical, industrial, and edge computing applications
- 3-year limited warranty with Philippines country of origin
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX6K-10 |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |

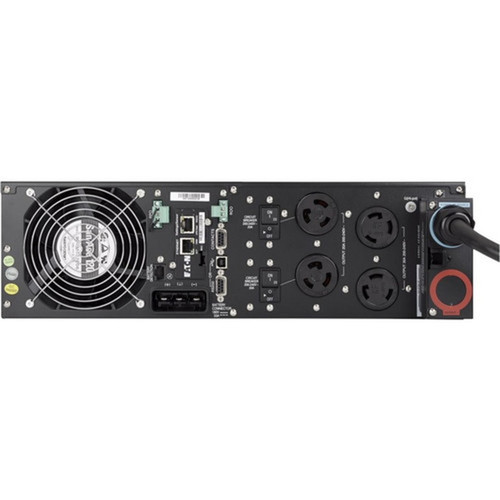

| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-20R,NEMA L6-30R,Hardwired |
| Receptacle Detail | 2 x NEMA L6-20R,2 x NEMA L6-30R |
| Application/Usage | IT,Edge Computing,Medical,Healthcare,University,Industrial Automation System |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.40 kW |
| Input Voltage | 120 V AC,230 V AC |
| Output Voltage | 200 V AC,208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | Network-M3 Card |
| Controls/Indicators | |
| Status Indicators | Graphical Display |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 5.10" (129.54 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 28.40" (721.36 mm) |
| Rack Height | 3U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 106 lb (48080.79 g) |
| Miscellaneous | |
| Package Contents | 9PX UPS Gigabit Network Card (Network-M3) 4-post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Connection Phillips Head Screw Driver |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the Eaton 9PX6K-10 UPS?
The Eaton 9PX6K-10 provides 6 kVA (kilovolt-ampere) or 5.4 kW (kilowatt) of power capacity. This double conversion online UPS can support substantial loads including servers, network equipment, and industrial control systems while delivering pure sine wave output for compatibility with modern power supplies.
Can this UPS be installed in both rack and tower configurations?
Yes, the Eaton 9PX6K-10 is designed as a 3U rack/tower unit. It includes both a 4-post rail kit for standard server rack installation and tower pedestals for standalone deployment. The flexible form factor allows installation in data centers, server rooms, or equipment closets based on your space requirements.
What input voltages does this UPS support?
The Eaton 9PX6K-10 accepts both 120V AC and 230V AC input power. This dual-voltage capability makes the unit suitable for different electrical infrastructures without requiring separate models. The input frequency is 60 Hz, standard for North American power systems.
Are the batteries hot-swappable in this UPS?
Yes, the Eaton 9PX6K-10 features hot-swappable, user-replaceable sealed lead acid batteries. This design allows battery replacement without shutting down connected equipment, maintaining continuous power protection during maintenance. The batteries are also supported by Eaton's ABM technology that extends their service life through intelligent charging.
What management capabilities are included with this UPS?
The Eaton 9PX6K-10 includes a Network-M3 Gigabit network card for comprehensive remote management. This enables monitoring and control via web browser, SNMP, or Eaton's Intelligent Power Software Suite. The unit also features a graphical LCD display for local status monitoring, plus serial and USB HID-compliant ports for additional connectivity options.
What applications is this UPS suitable for?
The Eaton 9PX6K-10 is designed for IT infrastructure, edge computing, medical equipment, university environments, and industrial automation systems. Its pure sine wave output and double conversion topology make it ideal for protecting sensitive equipment that requires clean, uninterrupted power. The 6 kVA capacity supports substantial loads in these critical applications.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
