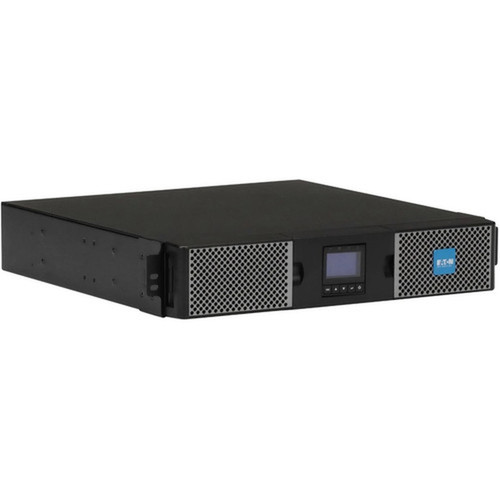

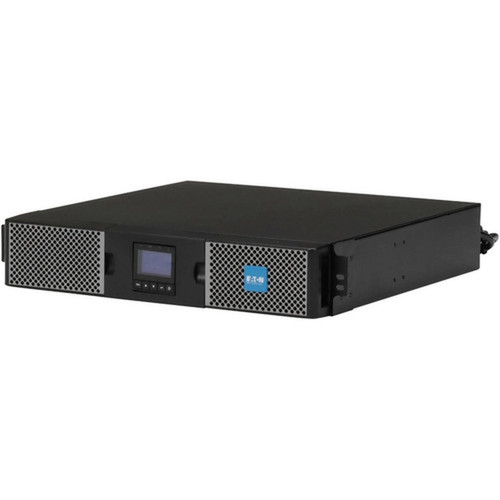

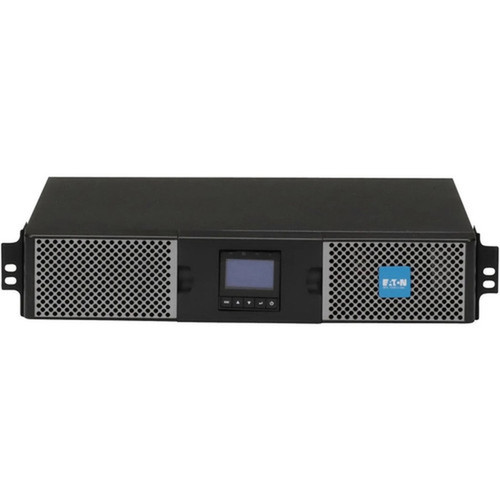

Eaton 9PX1500RTN-L 9PX Lithium-Ion UPS - 1500VA/1350W 120V Double Conversion Online UPS - 2U Rack/Tower with Network Card
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Eaton 9PX Lithium-Ion UPS (9PX1500RTN-L) is a double conversion online UPS engineered for critical power protection in demanding IT, edge computing, medical, healthcare, university, and industrial automation environments. It delivers 1500VA/1350W of clean, reliable power with a lithium-ion battery system that offers extended service life and superior runtime performance compared to traditional lead-acid units.
This 2U rack/tower model operates on 120V AC input and provides true sine wave output, ensuring compatibility with sensitive electronic equipment. The unit includes a Gigabit network card (Network-M3) for comprehensive remote management, allowing 24/7 monitoring and control. With its hot-swappable, replaceable lithium-ion battery, graphical LCD interface, and multiple communication ports, the 9PX UPS is built for high availability and operational simplicity.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R, Receptacle Detail: 8 x NEMA 5-15R, Load Capacity (VA): 1.50 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Technical Overview
The 9PX UPS employs double conversion online topology, providing complete isolation from input power anomalies and delivering consistent, high-quality output. Its lithium-ion battery chemistry supports a service life of up to 10 years and delivers 80% to 120% more runtime at full load than equivalent lead-acid systems. The unit features a 60 Hz input frequency and maintains a sound emission level of 47 dB during operation.

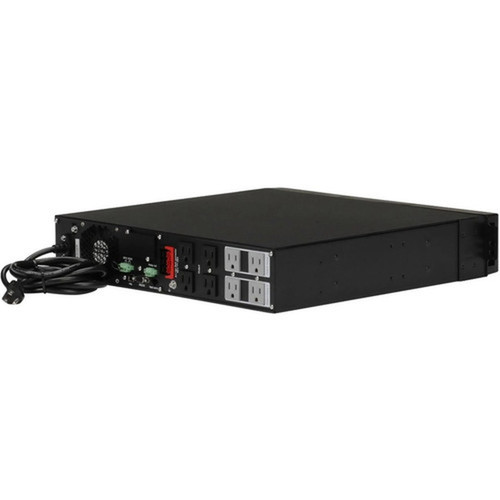

Connectivity is comprehensive, with eight NEMA 5-15R outlets, a NEMA 5-15P plug, and management interfaces including serial, USB (HID compliant), and Gigabit Ethernet. The graphical display provides real-time status updates on load, battery, and system health. The battery is both hot-swappable and user-replaceable, minimizing downtime during maintenance.
Relevant product facts for this section include Plug/Connector Type: NEMA 5-15P, Receptacle Type: NEMA 5-15R, Receptacle Detail: 8 x NEMA 5-15R, Load Capacity (VA): 1.50 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Eaton 9PX Lithium-Ion UPS stands out with its advanced lithium-ion battery technology, which significantly extends runtime and reduces long-term maintenance. The included Gigabit network card enables full remote management capabilities, while the intuitive graphical interface keeps operators informed with critical load data in real time.
Extended Runtime & Longevity
Lithium-ion batteries provide up to 10 years of service life and deliver 80% to 120% more runtime at full load compared to lead-acid UPS systems, reducing replacement frequency and total cost of ownership.
- 10-year battery service life
- 80-120% more runtime at full load
- Hot-swappable design
Comprehensive Remote Management
The included Network-M3 Gigabit network card allows 24/7 remote access, monitoring, and control, enabling proactive management of power events and system status from anywhere.
- Gigabit network card included
- 24/7 remote access
- Real-time status monitoring
High Availability Design
Double conversion online topology ensures clean power output, while hot-swappable batteries and multiple communication ports support uninterrupted operation and easy integration.
- Double conversion online
- True sine wave output
- Serial, USB, Ethernet ports
Deployment / Use Cases
The Eaton 9PX 1500VA UPS is designed for environments where power continuity is critical. Its 2U rack/tower form factor makes it suitable for server rooms, network closets, and edge computing locations where space is at a premium. The unit supports a wide range of applications, from IT infrastructure to medical and industrial automation systems.
In healthcare settings, it protects diagnostic and monitoring equipment. For universities and research facilities, it safeguards data and laboratory instruments. In industrial automation, it ensures uninterrupted operation of control systems. The flexible rack/tower deployment allows it to integrate seamlessly into both rack-mounted and standalone configurations.
IT & Edge Computing
Protects servers, networking gear, and storage systems in data centers and remote edge locations, providing runtime for safe shutdowns during outages.
Medical & Healthcare
Ensures continuous power for critical medical devices, diagnostic equipment, and patient monitoring systems, supporting compliance and patient safety.
Physical Profile
The UPS features a compact 2U rack-mountable design with dimensions of 3.40" (86.36 mm) height, 17.30" (439.42 mm) width, and 17.70" (449.58 mm) depth, making it ideal for standard 19-inch enclosures. It weighs 36.50 lb (16556.12 g) and comes in a black and silver finish. The package includes pedestals for tower positioning and a 4-post rail kit for rack installation, offering deployment flexibility.
- Width
- 17.30" (439.42 mm)
- Depth
- 17.70" (449.58 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 36.50 lb (16556.12 g)
What's in the Box
The package includes everything needed for installation and operation.
Highlights
- 1500VA/1350W double conversion online UPS with lithium-ion battery
- Provides 80% to 120% more runtime at full load than lead-acid systems
- Includes Gigabit network card (Network-M3) for remote management
- Hot-swappable, replaceable lithium-ion battery with up to 10-year service life
- 2U rack/tower form factor with included pedestals and rail kit
- 8 x NEMA 5-15R outlets, true sine wave output, 120V AC input

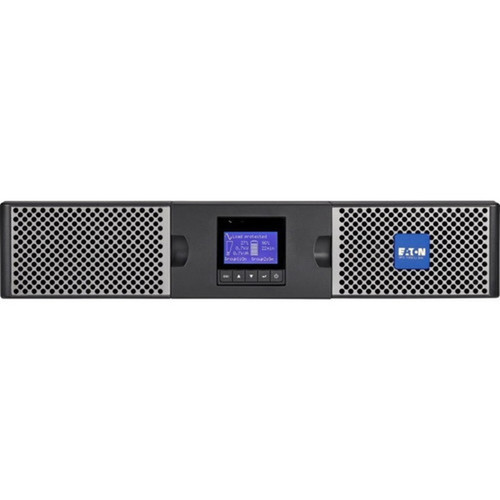

- Graphical LCD interface for real-time status monitoring
- Serial, USB, and Ethernet communication ports
- 5-year limited warranty, country of origin: Philippines
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX1500RTN-L |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Application/Usage | IT,Edge Computing,Medical,Healthcare,University,Industrial Automation System,Electronic |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | True Sine Wave |
| Management | |
| Network Management | Network-M3 Card |
| Controls/Indicators | |
| Status Indicators | Grpahical Display |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Sound Emission | 47 dB |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Height | 3.40" (86.36 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 17.70" (449.58 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 36.50 lb (16556.12 g) |
| Miscellaneous | |
| Package Contents | 9PX UPS Quick Start Guide Safety Instructions USB Communciation Cable RS-232 Serial Communication Cable 4-post Rail for 19-inch Enclosures Software Leaflet 2 x Pedestals for Tower Poition Gigabit Network Card (Network-M3) |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton 9PX UPS delivers 1500VA (1.50 kVA) and 1350W of power capacity. It operates on 120V AC input and provides true sine wave output, making it suitable for protecting sensitive electronic equipment in IT, medical, and industrial environments.
Does this UPS include a network management card?
Yes, the UPS includes a Gigabit network card (Network-M3) in the box. This card enables full remote access, monitoring, and management 24/7, allowing you to control the UPS, receive alerts, and view status information from any network-connected device.
What type of battery does this UPS use, and is it replaceable?
This UPS uses a lithium-ion (Li-Ion) battery, which offers a service life of up to 10 years and provides 80% to 120% more runtime at full load compared to equivalent lead-acid systems. The battery is both hot-swappable and user-replaceable, allowing for maintenance without shutting down connected equipment.
Can this UPS be installed in a rack or used as a tower?
Yes, the UPS features a flexible rack/tower form factor. It is designed for 2U rack mounting in standard 19-inch enclosures, and the package includes a 4-post rail kit for rack installation. It also comes with two pedestals for tower positioning, giving you deployment options to suit your space and needs.
How many outlets does this UPS have, and what type are they?
The UPS has eight NEMA 5-15R outlets, providing ample connectivity for servers, networking equipment, and other devices. It uses a NEMA 5-15P plug for input. This outlet configuration supports a wide range of standard IT and electronic equipment in North American environments.
What management and monitoring interfaces are available?
The UPS includes multiple management interfaces: a serial port, a USB (HID compliant) port, and a Gigabit Ethernet port (via the included network card). It also features a graphical LCD display that provides real-time status updates on load, battery, and system health, ensuring you stay informed about critical power conditions.
