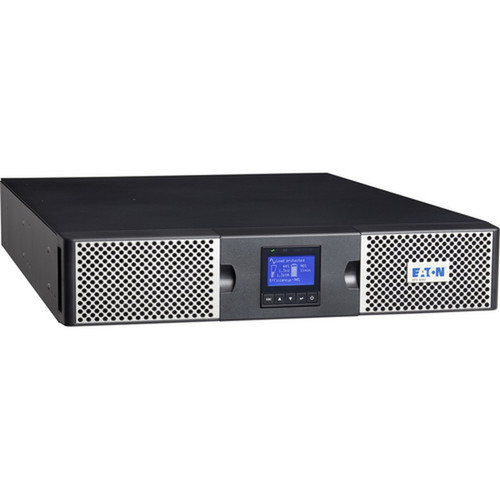

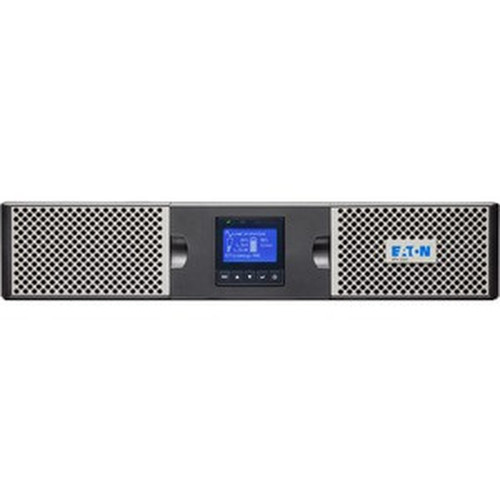

Eaton 9PX2000RTN 2000VA/1800W Double Conversion Online UPS - 2U Rack/Tower - 7 NEMA Outlets - Network Card Included
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Eaton 9PX2000RTN is a double conversion online UPS delivering 2000VA/1800W of clean, reliable power for critical IT infrastructure. Engineered for both rack and tower installations, this 2U unit provides zero-transfer-time protection against power disturbances, ensuring uninterrupted operation for servers, networking gear, and storage systems.
Its robust design includes a comprehensive set of seven NEMA outlets, split into separately switched banks to enable intelligent load shedding. The integrated interactive LCD offers real-time monitoring of load status, battery health, and system events, while the included NETWORK-M2 card delivers full remote management capabilities via web or SNMP.
This UPS accepts input voltage from 100V AC to 125V AC and provides matching output voltage, making it compatible with standard North American power systems. The double conversion topology continuously converts incoming AC to DC and back to clean AC, providing complete isolation from line noise, sags, and surges.
Designed for enterprise environments, the 9PX2000RTN includes everything needed for immediate deployment. The package contains both rack-mount and tower installation hardware, along with comprehensive management software and documentation. Its Energy Star certification and RoHS compliance demonstrate Eaton's commitment to energy efficiency and environmental responsibility.
Technical Overview
The Eaton 9PX2000RTN employs double conversion online topology, the highest level of UPS protection available. This technology continuously converts incoming AC power to DC, then back to clean, regulated AC output, providing complete isolation from input power anomalies. The zero-transfer-time design ensures no break in power to connected equipment during outages or power disturbances.
Power management capabilities are extensive, with the interactive LCD providing real-time status updates on load percentage, battery runtime, input/output voltage, and system events. The included NETWORK-M2 Gigabit network card enables remote monitoring, configuration, and graceful shutdown of connected systems via web interface or SNMP protocols.
Double Conversion Technology
This online UPS provides the highest level of power protection by continuously converting incoming AC to DC and back to clean AC. This complete isolation from input power ensures connected equipment receives pure sine wave output free from disturbances.
- 0 ns transfer time to battery
- Complete isolation from line noise and surges
- Pure sine wave output for sensitive electronics
- Continuous power conditioning
Advanced Monitoring and Management
The unit includes comprehensive monitoring capabilities through its interactive LCD and network management card. The Intelligent Power Software Suite provides automated shutdown procedures and power management for connected systems.
- Interactive LCD with real-time status display
- NETWORK-M2 Gigabit network card included
- Web and SNMP remote management
- Intelligent Power Software Suite on CD
Key Product Advantages
This UPS combines enterprise-grade power protection with flexible deployment options, making it ideal for data centers, server rooms, and network closets. The included network management card eliminates the need for separate purchases, while the split outlet banks allow prioritized shutdown of non-critical loads during extended outages.
Flexible Installation
Designed for both rack-mount and tower configurations, the unit includes a 4-post rail kit and tower pedestals. The 2U rack height optimizes space in standard server racks while maintaining substantial power capacity.
- Includes 4-post rail kit
- Tower pedestals provided
- 2U rack-optimized design
Intelligent Outlet Management
Seven NEMA outlets are divided into separately switched banks (1 L5-20R and 6 5-20R), enabling managed load shedding. This allows critical equipment to remain powered longer during battery runtime by automatically shedding non-essential loads.
- 7 total NEMA outlets
- Separately switched banks
- Managed load shedding capability
Deployment / Use Cases
The Eaton 9PX2000RTN is engineered for environments where power quality and availability are non-negotiable. Its double conversion technology makes it particularly suitable for sensitive electronic equipment that requires clean, stable power free from disturbances.
Typical deployments include protecting rack-mounted servers in data centers, network switches and routers in communication closets, and storage arrays in server rooms. The tower configuration option makes it equally viable for small office server installations or point-of-sale systems in retail environments.
Data Center Server Protection
Provides zero-transfer-time backup for 1-2 rack-mounted servers and associated networking equipment, with remote management capabilities for unmanned locations.
- Protects critical servers
- Remote management for unmanned sites
- Rack-optimized 2U design
Network Infrastructure Support
Ideal for network closets protecting switches, routers, and VoIP equipment, with the ability to extend runtime through optional battery modules for longer outages.
- Supports networking gear
- Optional extended runtime modules
- Clean power for sensitive electronics
Physical Profile
The Eaton 9PX2000RTN measures 3.40" (86.36 mm) in height, 17.30" (439.42 mm) in width, and 23.80" (604.52 mm) in depth, fitting standard 19" rack enclosures at 2U of vertical space. This compact yet powerful design optimizes rack real estate while delivering substantial power capacity for critical equipment.
At 61.51 lb (27900 g), the unit is substantial yet manageable for installation in both rack and tower configurations. The design includes proper ventilation for optimal thermal management and accessible controls for easy operation and maintenance. The form factor supports flexible deployment in data centers, server rooms, network closets, or office environments.
The package includes complete mounting hardware for both installation scenarios. The 4-post rail kit enables secure rack mounting in standard server racks, while the tower pedestals provide stable standalone placement. This dual-configuration capability makes the UPS suitable for diverse IT environments without requiring additional accessories.
- Width
- 17.30" (439.42 mm)
- Depth
- 23.80" (604.52 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 61.51 lb (27900 g)
What's in the Box
The package includes everything needed for immediate deployment in either rack or tower configuration.
Highlights
- 2000VA/1800W double conversion online UPS with zero transfer time
- 2U rack/tower form factor with included rail kit and pedestals
- Seven NEMA outlets (1 L5-20R, 6 5-20R) with load shedding capability
- Includes NETWORK-M2 Gigabit network card for remote web/SNMP management
- Interactive LCD displays real-time load and system status information
- Supports optional extended battery modules for increased runtime
- 100-125V AC input and output voltage range
- Energy Star certified and RoHS compliant
- Includes Intelligent Power Software Suite for system management
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX2000RTN |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Model | 9PX2000RTN |
| Product Name | 9PX UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA L5-20R,NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-20R,6 x NEMA 5-20R |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 23.80" (604.52 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 61.51 lb (27900 g) |
| Miscellaneous | |
| Package Contents | 9PX2000RTN 2000VA Tower/Rack Mountable UPS Network-M2 Web/SNMP Card Safety Manual User Manual 4-Post Rail Kit Tower Pedestals RS-232 Serial Cable USB Cable Intelligent Power Software Suite CD |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
