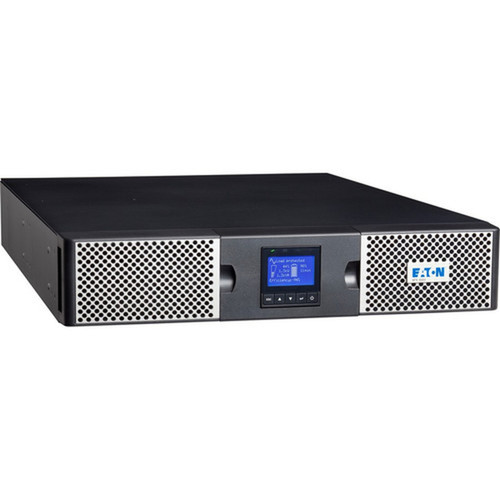

Eaton 9PX3000RTN 3000VA Double Conversion Online UPS - 2.70 kW - 2U Rack/Tower - 7 NEMA Outlets - 0 ns Transfer - ENERGY STAR
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Eaton 9PX3000RTN 3000VA Double Conversion Online UPS delivers enterprise-grade power protection for critical IT infrastructure, networking equipment, and essential business systems. This unit provides 3 kVA (2.70 kW) of continuous power capacity with zero transfer time, ensuring seamless operation during power disturbances, brownouts, and complete outages. Its dual rack/tower design offers flexible deployment options for server rooms, network closets, retail environments, or office settings where reliable uptime is non-negotiable.
Equipped with a comprehensive set of seven NEMA outlets, this UPS supports intelligent load shedding capabilities that allow administrators to prioritize essential equipment during extended power events. The included NETWORK-M2 Gigabit network card enables full remote monitoring and control via web browser or SNMP interfaces, providing real-time visibility into power conditions from any location. An interactive LCD display delivers immediate status updates on load percentage, battery health, input/output voltage, and remaining runtime, giving operators complete situational awareness of their power environment.
Built on Eaton's proven 9PX platform, this UPS employs double conversion online topology that continuously regenerates clean AC power from the battery, eliminating transfer delays and providing complete isolation from utility power anomalies. The wide input voltage range of 100-125 V AC accommodates varying power quality conditions while delivering stable, regulated output to connected equipment. With ENERGY STAR 1.0 certification and RoHS compliance, this unit meets stringent environmental standards while delivering reliable performance in demanding commercial applications.
Technical Overview
This Eaton 9PX series UPS employs true double conversion online topology, delivering clean, regulated power regardless of input quality by continuously converting AC to DC and back to AC. The zero transfer time (0 nanoseconds) ensures uninterrupted power to sensitive equipment without switching delays during utility power failures, fluctuations, or complete outages. The unit accepts a wide input voltage range from 100 to 125 V AC and provides stable output across the same range, making it suitable for environments with variable power quality.
The power distribution system features seven NEMA outlets configured in separate switched banks for intelligent load management: one NEMA L5-30R receptacle and six NEMA 5-20R receptacles. This configuration allows administrators to prioritize critical loads during extended outages through managed load shedding capabilities. Physical dimensions of 3.40" H × 17.30" W × 23.80" D (86.36 × 439.42 × 604.52 mm) enable installation in standard 19-inch racks using the included 4-post rail kit, while tower pedestals facilitate standalone deployment in office or retail environments.
Remote management is handled through the integrated NETWORK-M2 Gigabit network card, which provides web interface access, SNMP v1/v3 support, and compatibility with Eaton's Intelligent Power Software Suite for centralized monitoring of multiple UPS units. The interactive LCD interface displays real-time metrics including load percentage, battery status, input/output voltage, frequency, and remaining runtime estimates. The 63.05 lb (28600 g) steel construction ensures durability in both rack and tower configurations, with integrated handles facilitating manageable installation in various deployment scenarios.
Key Product Advantages
The Eaton 9PX3000RTN delivers several distinct advantages that make it particularly valuable for environments where power reliability, management flexibility, and operational continuity are critical. These strengths address common pain points in IT infrastructure protection while providing tangible benefits for day-to-day operations and emergency scenarios.
Zero Transfer Time Protection
Double conversion technology eliminates transfer time completely, providing uninterrupted power to sensitive equipment during outages or fluctuations. This continuous power delivery ensures servers, networking gear, and critical systems experience no switching delay, maintaining clean output waveforms that protect sensitive electronics from power anomalies.
- Continuous power delivery without interruption
- No switching delay during power events
- Clean output waveform protection
- Complete isolation from utility power issues
Flexible Deployment Options
Configure as either a 2U rack-mounted unit or free-standing tower with included mounting hardware for both scenarios. The comprehensive kit includes 4-post rails for secure rack installation and tower pedestals for standalone use, allowing IT teams to deploy the UPS in the most space-efficient configuration for their specific environment.
- Includes complete 4-post rail kit
- Tower pedestals provided for standalone use
- 2U rack space efficiency
- Integrated handles for manageable installation
Intelligent Power Management
NETWORK-M2 card enables comprehensive remote monitoring and control via web interface, SNMP, or Intelligent Power Software Suite. This management capability allows administrators to implement load shedding strategies, monitor power conditions in real time, and receive proactive alerts about potential issues before they impact operations.
- Web/SNMP management interfaces
- Load shedding capability for priority equipment
- Real-time status monitoring
- Centralized management of multiple units
Deployment / Use Cases
The Eaton 9PX3000RTN is engineered for environments requiring reliable power protection with management capabilities. Its 3 kVA capacity suits small to medium server installations, network equipment clusters, or critical workstations where uptime is essential.
In rack-mounted configurations, the 2U form factor efficiently utilizes data center space while providing power to multiple devices. Tower deployment offers standalone protection for office equipment or retail point-of-sale systems. The split outlet banks allow prioritization of critical loads during extended outages.
Relevant product facts for this section include Receptacle Type: NEMA L5-30R,NEMA 5-20R, Receptacle Detail: 1 x NEMA L5-30R,6 x NEMA 5-20R, Transfer Time: 0 ns, Load Capacity (VA): 3 kVA. When those details are considered together, they give buyers a clearer picture of how the product is equipped, how it connects, and what kind of day-to-day role it is meant to support.
Server Room Protection
Safeguard rack-mounted servers, switches, and storage arrays with clean power and remote management capabilities.
Network Infrastructure
Protect core networking equipment including routers, firewalls, and wireless access points with managed outlet control.
Physical Profile
The Eaton 9PX3000RTN measures 3.40 inches in height (86.36 mm), occupying 2U of rack space with a width of 17.30 inches (439.42 mm) and depth of 23.80 inches (604.52 mm). At 63.05 pounds (28600 g), the unit includes integrated handles for manageable installation. The steel construction ensures durability in both rack and tower configurations.
- Width
- 17.30" (439.42 mm)
- Depth
- 23.80" (604.52 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 63.05 lb (28600 g)
What's in the Box
The Eaton 9PX3000RTN ships complete with all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 3000VA / 2.70 kW double conversion online UPS with zero transfer time
- Flexible 2U rack/tower mountable design with included mounting hardware
- Includes NETWORK-M2 Gigabit network card for web/SNMP remote management
- Seven NEMA outlets (1×L5-30R, 6×5-20R) with load shedding capability
- Interactive LCD interface displays real-time load and status information
- Wide input voltage range: 100-125 V AC with matching output
- ENERGY STAR 1.0 certified for energy efficiency
- RoHS compliant and backed by 3-year limited warranty
- Optional extended battery modules available for increased runtime
- Intelligent Power Software Suite included for advanced management
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX3000RTN |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Model | 9PX3000RTN |
| Product Name | 9PX3000RTN 3000VA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA L5-30R,NEMA 5-20R |
| Receptacle Detail | 1 x NEMA L5-30R,6 x NEMA 5-20R |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 23.80" (604.52 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 63.05 lb (28600 g) |
| Miscellaneous | |
| Package Contents | 9PX3000RTN 3000VA Tower/Rack Mountable UPS Network-M2 Web/SNMP Card Safety Manual User Manual 4-Post Rail Kit Tower Pedestals RS-232 Serial Cable USB Cable Intelligent Power Software Suite CD |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 1.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the Eaton 9PX3000RTN UPS?
The Eaton 9PX3000RTN provides 3 kVA (3000VA) of power capacity, equivalent to 2.70 kW. This rating supports critical IT equipment like servers, networking gear, and workstations, ensuring reliable backup during power outages or fluctuations in small to medium business environments.
What is the transfer time for this UPS?
This UPS features zero transfer time (0 nanoseconds) due to its double conversion online topology. It continuously converts AC to DC and back to AC, eliminating any switching delay during power events, which protects sensitive electronics from interruptions and maintains clean power output.
How many outlets does the Eaton 9PX3000RTN have, and what types are they?
The UPS includes seven NEMA outlets: one NEMA L5-30R receptacle and six NEMA 5-20R receptacles. These outlets are split into separate switched banks, enabling intelligent load shedding to prioritize essential equipment during extended power outages for optimized backup management.
What input and output voltage ranges does this UPS support?
The Eaton 9PX3000RTN supports an input voltage range of 100 V AC to 125 V AC, accommodating variable power quality. It provides a matching output voltage range of 100 V AC to 125 V AC, delivering stable, regulated power to connected devices in environments with fluctuating utility power.
Can this UPS be mounted in a rack or used as a tower?
Yes, the Eaton 9PX3000RTN is designed for flexible deployment as either a 2U rack-mounted unit or a free-standing tower. It includes a 4-post rail kit for secure rack installation and tower pedestals for standalone use, making it suitable for data centers, server rooms, or office settings.
What remote management options are included with this UPS?
The UPS comes with a NETWORK-M2 Gigabit network card for comprehensive remote management. This enables web interface access, SNMP v1/v3 support, and compatibility with Eaton's Intelligent Power Software Suite, allowing real-time monitoring, load shedding control, and proactive alerts from any location.
