Eaton 9PX700RT 700 VA Double Conversion Online UPS - 2U Rack/Tower - 120V AC - 630W - 8 NEMA 5-15R Outlets
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains consistent 120 V AC output regardless of input fluctuations, with a transfer time of 0 nanoseconds for seamless power continuity. The 700 VA/630 W capacity supports typical IT loads such as servers, networking gear, and workstations, providing time for safe shutdowns during extended outages. Input and output voltages are matched at 120 V AC, simplifying integration into standard North American power systems.
The unit includes comprehensive connectivity options with RS-232 serial and USB cables for local management, plus compatibility with the Intelligent Power Software Suite for automated shutdowns and monitoring. An optional NETWORK-M2 Gigabit network card enables remote access and control over IP networks. Physical dimensions are optimized for rack deployment at 3.40" H x 17.30" W x 17.70" D, with included 4-post rail kits and tower pedestals for versatile installation.
Key Product Advantages
The Eaton 9PX700RT offers several advantages for business continuity and power management. Its double conversion topology ensures clean, stable power output, protecting sensitive electronics from surges, sags, and harmonics. The split-outlet design allows administrators to configure non-essential loads for automatic shedding during battery mode, extending runtime for critical systems.
Extended Runtime Options

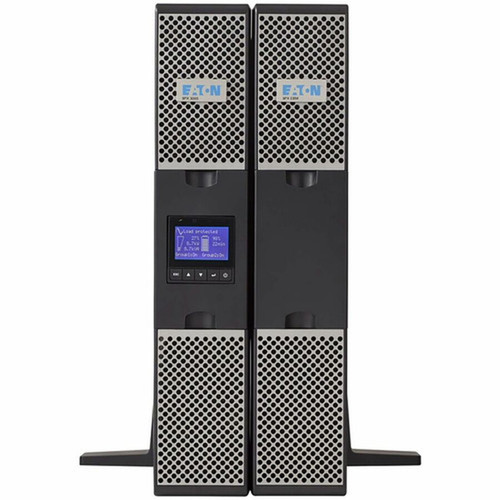

Optional extended battery modules can be added to increase backup duration, keeping equipment powered through longer outages without compromising performance.
- Scalable runtime
- Hot-swappable modules
- Maintains power during extended events
Remote Management Capabilities
With the optional NETWORK-M2 card, the UPS supports full remote monitoring and control via network interfaces, enabling proactive power management from any location.
- Gigabit Ethernet
- Web-based interface
- SNMP support
Deployment / Use Cases
This UPS is ideal for protecting critical infrastructure in small to medium business environments. Its 2U rack-mountable design fits standard server racks, making it perfect for network closets or data centers where space is at a premium. The tower configuration with included pedestals suits office settings where rack mounting isn't available.
Common deployments include supporting rack-mounted servers, switches, and storage arrays in IT rooms, or securing point-of-sale systems and networking equipment in retail environments. The 700 VA capacity handles typical loads for branch offices, medical clinics, or educational facilities requiring reliable uptime for digital systems.
Server Room Protection
Provides clean power to 1-2 rack servers and associated networking gear, allowing time for graceful shutdowns during power failures.
- Rack-optimized footprint
- Supports server loads
- LCD for at-a-glance status
Network Infrastructure
Keeps routers, switches, and firewalls operational during outages, maintaining network connectivity for remote access and communications.
- 8 outlets for multiple devices
- Managed load shedding
- Serial/USB connectivity
Physical Profile

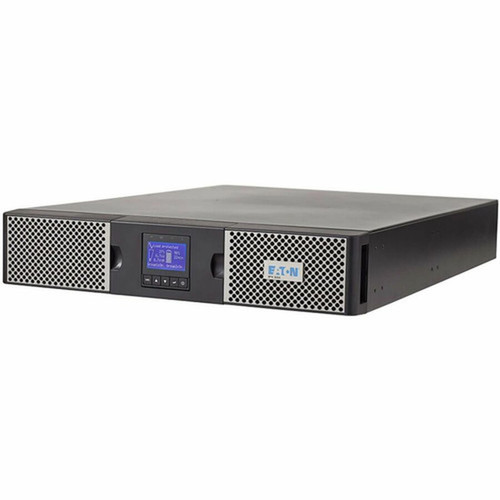

The Eaton 9PX700RT features a compact 2U form factor measuring 3.40" in height, 17.30" in width, and 17.70" in depth, designed to fit standard 19-inch server racks. Weighing 36.38 pounds, it includes 4-post rail kits for secure rack mounting and tower pedestals for standalone use. The brushed metal finish and clean front-panel design with LCD display provide a professional appearance in both rack and tower configurations.
- Width
- 17.30" (439.42 mm)
- Depth
- 17.70" (449.58 mm)
- Height
- 3.40" (86.36 mm)
- Weight
- 36.38 lb (16500 g)
What's in the Box
The package includes all necessary components for immediate deployment in rack or tower configurations.
Highlights
- 700 VA/630 W double conversion online UPS with zero transfer time
- 8 NEMA 5-15R outlets in managed banks for intelligent load shedding
- 2U rack/tower form factor with included rail kits and tower pedestals

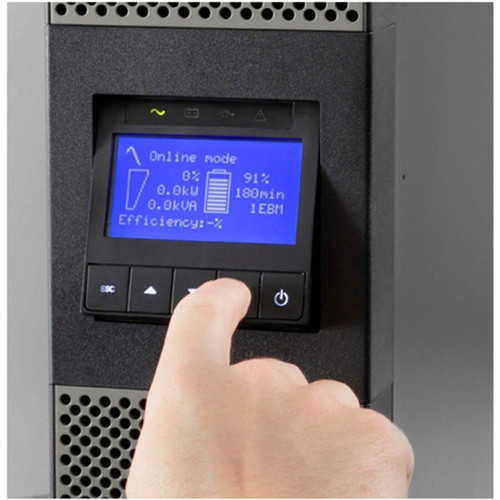

- Interactive LCD interface for real-time power status and battery monitoring
- Optional NETWORK-M2 Gigabit network card enables remote management
- Optional extended battery modules for scalable runtime
- RoHS compliant and environmentally friendly construction
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PX700RT |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Model | 9PX |
| Product Name | 9PX700RT 700 VA UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Transfer Time | 0 ns |
| Power Description | |
| Load Capacity (VA) | 700 VA |
| Load Capacity (Watt) | 630 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Physical Characteristics | |
| Height | 3.40" (86.36 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 17.70" (449.58 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 36.38 lb (16500 g) |
| Miscellaneous | |
| Package Contents | 9PX700RT 700 VA UPS 4-post Rail Kit Safety Manual User Manual Tower Pedestals RS-232 Serial Cable USB Cable Intelligent Power Software Suite CD |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of the Eaton 9PX700RT UPS?
The Eaton 9PX700RT provides 700 VA (volt-amps) and 630 watts of continuous power capacity. This rating supports typical IT equipment loads such as servers, networking devices, and workstations, offering sufficient runtime for safe shutdowns during power outages.
How many outlets does this UPS have and what type are they?

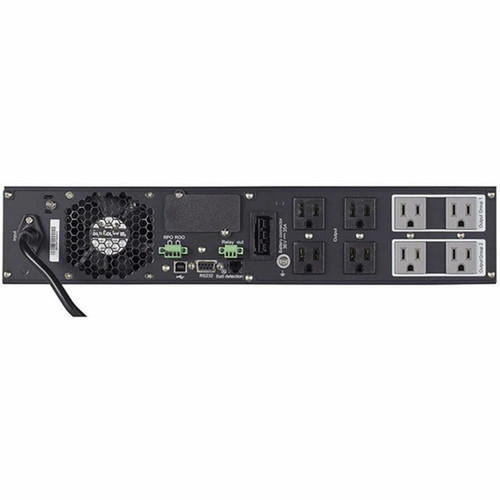

This UPS features eight NEMA 5-15R outlets, which are standard North American 15-amp receptacles. The outlets are split into separate switched banks, allowing for managed load shedding where non-critical devices can be automatically powered down during battery operation to extend runtime for essential equipment.
Can this UPS be mounted in a server rack?

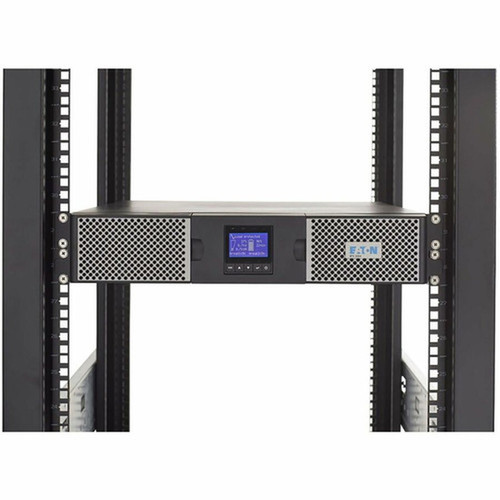

Yes, the Eaton 9PX700RT is designed for both rack and tower deployment. It has a 2U rack height and includes a 4-post rail kit for secure mounting in standard 19-inch server racks. The package also contains tower pedestals for standalone use in office environments where rack mounting isn't available.
What management options are available for this UPS?
Local management is possible via the front-panel LCD interface, RS-232 serial connection, and USB port. The included Intelligent Power Software Suite enables automated shutdowns and monitoring on connected systems. For remote management, an optional NETWORK-M2 Gigabit network card adds web-based control, SNMP support, and network monitoring capabilities.
What is the transfer time of this double conversion online UPS?
This double conversion online UPS has a transfer time of 0 nanoseconds. It continuously converts incoming AC power to DC and back to clean AC output, eliminating any switching delay during grid disturbances. This ensures seamless power continuity for sensitive electronic equipment.
Does this UPS support extended runtime configurations?
Yes, the Eaton 9PX700RT is compatible with optional extended battery modules. These modules can be added to increase backup duration, keeping connected equipment powered through longer outages. This scalability allows businesses to tailor runtime to their specific needs without replacing the main UPS unit.
What power capacity is listed for this UPS?
The listed power specification is 700 VA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
