Eaton 9SX2000 9SX 2000VA Tower UPS - 2 kVA / 1.8 kW Double Conversion Online - 10.3 Min Runtime - 6 NEMA Outlets - 120V Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Product Overview
The Eaton 9SX 2000VA Tower UPS is a double conversion online uninterruptible power supply engineered to deliver reliable power protection for industrial equipment, automation systems, and critical IT infrastructure. With a capacity of 2 kVA (1.8 kW), this unit provides clean sine wave output and zero transfer time between online and battery modes, ensuring continuous operation during power disturbances such as surges, sags, or outages. Its double conversion topology continuously converts incoming AC power to DC and back to AC, offering complete isolation from input power anomalies for sensitive electronic devices.
Designed for tower deployment, this UPS features six NEMA 5-20R outlets and one L5-20R outlet to support multiple devices, making it suitable for environments requiring robust connectivity. The front-panel LCD delivers real-time status monitoring, load levels, battery analytics, and event logs, enhancing power management visibility. Optional NETWORK-M2 network cards enable remote access and control for distributed environments, while optional external battery modules allow for extended runtime to meet growing power protection needs. This combination of capacity, monitoring, and scalability makes it a versatile solution for demanding applications.
Technical Overview
This double conversion online UPS provides 2 kVA (2000 VA) of apparent power and 1.8 kW (1800 watts) of real power capacity, supporting equipment loads up to this rating with pure sine wave output. The wide input voltage range of 100-138V AC accommodates fluctuating power conditions, while the output voltage adjusts between 100V AC, 110V AC, 120V AC, and 125V AC to ensure compatibility with various devices. The zero transfer time between online and battery modes eliminates switching delays, offering seamless power continuity for critical loads during transitions.
Power management is enhanced through the front LCD interface, which displays vital analytics such as load levels, battery status, and event logs in real time. The unit supports optional external battery modules for extended runtime beyond the standard 10.3 minutes at full load, providing scalability for longer outage protection. With a NEMA 5-20P input plug and six NEMA 5-20R outlets plus one L5-20R outlet, it connects directly to standard North American power circuits, facilitating easy integration into existing infrastructure. The double conversion design filters out surges, sags, and frequency variations, delivering clean, regulated power regardless of input quality.
Key Product Advantages
The Eaton 9SX delivers reliable power protection through its double conversion design, which filters out surges, sags, and frequency variations before they reach connected equipment. With six NEMA outlets and comprehensive monitoring capabilities, this UPS provides both capacity and visibility for power management.
Zero Transfer Time
Double conversion topology eliminates switching delays between online and battery modes, providing seamless power continuity for critical loads.
- No interruption during power transitions
- Continuous voltage regulation
- Protection against micro-outages
Scalable Runtime

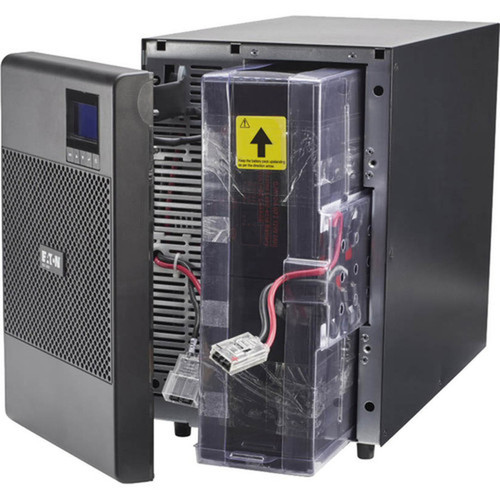

Optional external battery modules extend backup duration beyond the standard 10.3 minutes at full load, supporting longer outage protection.
- Modular battery expansion
- Flexible runtime configuration
- Supports extended equipment operation
Deployment / Use Cases
This 2000VA tower UPS is engineered for environments requiring reliable power backup with moderate runtime needs. The tower form factor makes it suitable for floor placement in equipment rooms, while the NEMA 5-20P plug connects directly to standard North American power circuits.
Industrial applications benefit from the wide input voltage tolerance and sine wave output, which protect sensitive automation controllers from power quality issues. IT deployments gain from the remote management capabilities and scalable runtime options for critical network infrastructure.
Industrial Automation
Protect PLCs, HMIs, and control systems in manufacturing environments where power quality directly impacts production continuity and equipment longevity.
IT Infrastructure
Secure servers, network switches, and storage arrays in server rooms or distributed IT closets, ensuring uptime during utility power interruptions.
Physical Profile

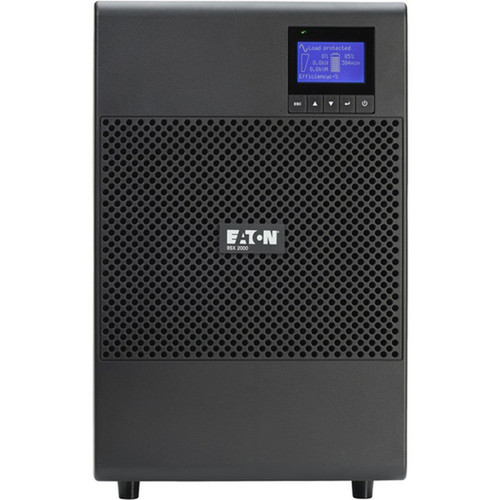

The tower design of this Eaton UPS provides stable floor-standing deployment without the need for rack mounting, making it ideal for equipment rooms, server closets, and industrial environments where space is optimized for accessibility. Weighing 41.4 pounds (18,778.72 grams), the unit maintains a compact footprint that is easy to position and install, while its robust construction ensures durability in demanding settings. The front-panel LCD offers at-a-glance status monitoring, allowing users to quickly assess power conditions, battery health, and load levels without additional tools.
The rear panel houses all power connections, including the NEMA 5-20P input plug and multiple outlets, along with communication ports for serial and USB cables that facilitate management and monitoring. This practical layout supports straightforward installation and maintenance, reducing setup time and enhancing operational efficiency. The tower form factor not only simplifies placement but also contributes to effective heat dissipation, ensuring reliable performance over extended periods. Overall, the physical profile is designed for practicality, supporting seamless integration into diverse deployment scenarios.
- Weight
- 41.40 lb (18778.72 g)
What's in the Box
This Eaton 9SX 2000VA Tower UPS ships complete with all necessary components for immediate deployment.
Highlights
- 2 kVA / 1.8 kW double conversion online UPS with pure sine wave output
- 10.3 minutes runtime at full load with optional external battery expansion
- Six NEMA 5-20R outlets plus one L5-20R outlet for device connectivity
- Zero transfer time between online and battery modes for uninterrupted operation
- Front-panel LCD displays real-time status, load levels, and battery analytics
- Optional NETWORK-M2 network card enables remote monitoring and management
- Wide input voltage range (100-138V AC) accommodates power fluctuations
- Tower form factor for floor-standing deployment in equipment rooms
- 3-year limited warranty with country of origin Philippines
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9SX2000 |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX 2000VA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R,NEMA L5-20R |
| Receptacle Detail | 6 x NEMA 5-20R |
| Application/Usage | Industrial Equipment,Industrial Automation System,IT System |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC - 138 V AC |
| Output Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Waveform Type | Sine Wave |
| Battery Information | |
| Backup/Run Time (Full Load) | 10.30 Minute |
| Physical Characteristics | |
| Form Factor | Tower |
| Weight (Approximate) | 41.40 lb (18778.72 g) |
| Miscellaneous | |
| Package Contents | 2000VA Tower UPS Manual Quick Start Guide Safety Guide Serial And USB Cables |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
This Eaton 9SX UPS provides 2 kVA (2000 VA) of apparent power and 1.8 kW (1800 watts) of real power capacity, supporting equipment loads up to this rating with pure sine wave output. This double conversion online topology ensures clean, regulated power for sensitive industrial and IT devices.
What is the runtime at full load?
The UPS delivers 10.3 minutes of backup runtime at full load. This runtime can be extended through optional external battery modules, providing scalability for longer power outages in critical environments like industrial automation or server rooms.
How many outlets does this UPS have?
It features six NEMA 5-20R outlets and one L5-20R outlet, providing connectivity for multiple devices. This configuration supports standard North American power circuits, making it suitable for environments requiring robust power distribution and battery backup for essential equipment.
What are the input and output voltage specifications?
The input voltage is 120V AC with a wide range of 100-138V AC to accommodate power fluctuations. Output voltage adjusts between 100V AC, 110V AC, 120V AC, and 125V AC, ensuring compatibility with various devices and providing stable power regardless of input quality.
Is this UPS designed for rack or tower deployment?
This unit has a tower form factor, designed for floor-standing deployment in equipment rooms, server closets, or industrial settings. The tower design simplifies placement, supports effective heat dissipation, and does not require rack mounting, making it ideal for accessible installations.
What management and connectivity options are available?
The front-panel LCD provides real-time status monitoring, load levels, battery analytics, and event logs. It includes serial and USB cables for local management, and supports optional NETWORK-M2 network cards for remote access and control, enabling comprehensive power management in distributed environments.
