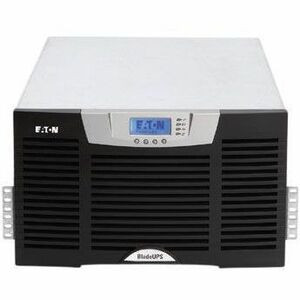

Eaton ZC121P068100000 BladeUPS 12kVA Rack-mountable UPS - 6U - 12 kW - 208V AC Output - LCD - 4. 7 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton BladeUPS operates as a three-phase double conversion online UPS with hard wire 4-wire (3PH + G) connections for both input and output. The system accepts 208-230V AC input with a wide voltage range of 180-265V AC and delivers stable 208V AC output at 50/60Hz frequency with 0.9 output power factor for optimal equipment compatibility.
The UPS employs VRLA/AGM lead-acid battery technology with 240V DC system voltage and features replaceable hot-swappable batteries for simplified maintenance. Advanced Battery Management (ABM®) technology extends battery life, reducing replacement frequency while maintaining reliable backup power availability.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Protection Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Eaton BladeUPS delivers exceptional value through innovative design features that address modern data center challenges. The modular, scalable architecture enables building-block upgrades from 12 to 60 kW within a single rack enclosure, accommodating future growth without requiring complete system replacement.
Space-Efficient Design
Packs 12 kW of power protection into only 6U of rack height, including integrated batteries, maximizing power density while minimizing footprint.
- Conserves valuable rack space
- Includes batteries within 6U height
- Optimizes data center layout
Enhanced Reliability
Incorporates patented Powerware Hot Sync paralleling technology and intelligent bypass design, field-proven in thousands of large-scale data center deployments worldwide.
- Patented paralleling technology
- Intelligent bypass design
- Field-proven reliability
Simplified Maintenance
Features true plug-and-power connections with hot-swappable batteries and electronics modules, reducing downtime during service and battery replacement operations.
- Hot-swappable components
- Plug-and-power connections
- Reduced maintenance downtime
Deployment / Use Cases
The Eaton BladeUPS 12kVA is engineered for demanding environments requiring continuous power availability. Its robust design makes it ideal for protecting mission-critical equipment in data centers, supporting generators during transition periods, and ensuring uninterrupted operation of PBX systems, VoIP infrastructure, and network closet equipment.
This UPS excels in high-density computing environments where space optimization and power reliability are paramount. The scalable architecture supports constant moves, adds, and changes typical in dynamic data centers, while the efficient design reduces total cost of ownership through lower energy consumption and extended battery life.
Data Center Protection
Provides reliable backup power for server racks, storage systems, and networking equipment in enterprise data centers and colocation facilities.
- Server rack protection
- Network equipment backup
- Storage system continuity
Critical Infrastructure Support
Ensures uninterrupted operation for PBX systems, VoIP platforms, and telecommunications equipment during power disturbances or outages.
- PBX system protection
- VoIP platform continuity
- Telecommunications backup
Physical Profile
The Eaton BladeUPS features a rugged rack-mountable design with dimensions of 10.30" height (261.62 mm), 17.40" width (441.96 mm), and 28.40" depth (721.36 mm), occupying 6U of standard rack space. The unit weighs approximately 135 pounds (61,235 grams), with construction that meets Restriction of Hazardous Substances (RoHS) environmental compliance standards for responsible manufacturing.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 6U, 17.40" (441.96 mm), 28.40" (721.36 mm), 135 lb (61234.97 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.40" (441.96 mm)
- Depth
- 28.40" (721.36 mm)
- Height
- 6U
- Weight
- 135 lb (61234.97 g)
What's in the Box
This Eaton BladeUPS 12kVA rack-mountable UPS package includes comprehensive components for immediate deployment and management.
Highlights
- 12 kVA (12 kW) power capacity in compact 6U rack-mountable form factor
- 4.7-minute full load runtime and 13-minute half load runtime for critical equipment protection
- 98% efficiency reduces energy costs and cooling requirements in data center environments
- Three-phase double conversion online UPS with 208V AC output voltage
- LCD display with four status-at-a-glance LEDs for real-time monitoring
- Network management via dry contact, INDGW-X2 card, and Web/SNMP interfaces
- Hot-swappable batteries and electronics modules for simplified maintenance
- Scalable architecture supports upgrades from 12 to 60 kW in single rack enclosure
- VRLA/AGM lead-acid batteries with Advanced Battery Management (ABM®) technology
- Hard wire 4-wire (3PH + G) connections for robust electrical integration
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ZC121P068100000 |
| Brand Name | Eaton |
| Product Line | BladeUPS |
| Product Name | BladeUPS 12kVA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 4-wire (3PH + G) |
| Receptacle Type | Hard Wire 4-wire (3PH + G) |
| Protection Type | Surge |
| Phase | Three Phase |
| Application/Usage | Generator,Mission Critical Equipment,Data Center,PBX System,VoIP,Network Closet,IT Equipment,Computer |
| Efficiency | 98% |
| Power Description | |
| Load Capacity (VA) | 12 kVA |
| Load Capacity (Watt) | 12 kW |
| Input Voltage | 208 V AC,230 V AC |
| Input Voltage Range | 180 V AC - 265 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,INDGW-X2 Card,Web/SNMP |
| Alarm | Low Battery |
| Controls/Indicators | |
| Status Indicators | Four status-at-a-glance LEDs |
| Battery Information | |
| DC System Voltage | 240 V DC |
| Battery Characteristics | VRLA/AGM |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 1266 BTU/h |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 6U |
| Height | 10.30" (261.62 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 28.40" (721.36 mm) |
| Weight (Approximate) | 135 lb (61234.97 g) |
| Miscellaneous | |
| Package Contents | BladeUPS 12kVA Rack-mountable UPS Software Suite CD |
| Software Included | Intelligent Power Manager supervisory software and Intelligent Power Protector protection software |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 18 Month |
User Manual
FAQ
What is the power capacity of this Eaton BladeUPS?
This Eaton BladeUPS provides 12 kVA (12 kW) of power capacity, making it suitable for protecting mission-critical equipment in data centers, network closets, and telecommunications environments. The three-phase double conversion online design ensures clean, stable power output for sensitive electronic equipment.
How much runtime does this UPS provide at full load?
At full load, this Eaton BladeUPS delivers 4.7 minutes of backup runtime, while at half load it provides 13 minutes of runtime. These runtime specifications support orderly shutdown procedures or bridge power until generators come online during extended outages.
What rack space does this UPS require for installation?
The Eaton BladeUPS occupies 6U of standard rack height with dimensions of 10.30" height, 17.40" width, and 28.40" depth. This compact design includes batteries within the 6U footprint, maximizing power density while conserving valuable rack space in data center environments.
What input and output voltages does this UPS support?
This UPS accepts 208-230V AC input with a wide voltage range of 180-265V AC and delivers stable 208V AC output. The three-phase design with hard wire 4-wire (3PH + G) connections ensures compatibility with standard data center power distribution systems.
What management and monitoring options are available?
The Eaton BladeUPS includes an LCD display for local monitoring and supports network management through dry contact, INDGW-X2 card, and Web/SNMP interfaces. Four status-at-a-glance LEDs provide immediate visual indication of system status, while comprehensive software tools enable remote monitoring and management.
Are the batteries replaceable and what technology is used?
Yes, this UPS features replaceable hot-swappable VRLA/AGM lead-acid batteries with 240V DC system voltage. The Advanced Battery Management (ABM®) technology extends battery life, reducing replacement frequency while maintaining reliable backup power availability for critical applications.
What power capacity is listed for this UPS?
The listed power specification is 12 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,230 V AC, which helps position the unit for the right load level and installation role.
