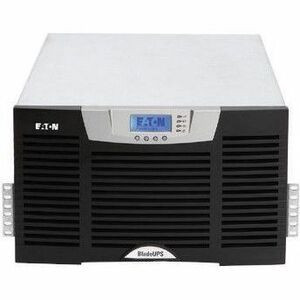

Eaton ZC1212208100000 BladeUPS 12kW Rack-mountable UPS - 6U Form Factor - 208/230V AC Input - 208V AC Output - 4. 7 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates on a double conversion online topology, ensuring clean and consistent power output by continuously converting AC input to DC and back to AC. It supports input voltages of 208 V AC and 230 V AC, with a wide input range of 180 V AC to 265 V AC, accommodating varying power grid conditions. Output is stabilized at 208 V AC with a power factor of 0.9, compatible with 50 Hz and 60 Hz frequencies for global deployment.
The battery system uses VRLA/AGM lead-acid chemistry with a 240 V DC system voltage, providing a full load runtime of 4.70 minutes and extending to 13 minutes at half load. The replaceable battery design facilitates maintenance without replacing the entire unit. Thermal dissipation is managed at 1266 BTU/h, and the unit complies with RoHS environmental standards.
Key Product Advantages
The Eaton BladeUPS combines high power density with reliable performance, making it an ideal choice for organizations requiring uninterrupted power in compact rack spaces. Its advanced features ensure operational continuity and ease of management in demanding IT environments.
High-Efficiency Design
With 98% efficiency, this UPS reduces energy consumption and heat generation, lowering cooling costs and extending equipment lifespan in data centers.
- Minimizes operational expenses
- Reduces thermal load in racks
Comprehensive Monitoring
The LCD display and four status LEDs provide at-a-glance health indicators, while network management options include dry contact, INDGW-X2 card, and Web/SNMP for remote oversight.
- Real-time system status
- Flexible remote management
Robust Battery System
Featuring a replaceable VRLA/AGM battery, the UPS offers scalable runtime and easy maintenance, supported by a low battery alarm for proactive replacement.
- User-replaceable battery
- Proactive alarm system
Deployment / Use Cases
This UPS is tailored for environments where power reliability is critical to operations. Its rack-mountable design and high capacity suit it for centralized power protection in server rooms and network infrastructure.
Ideal applications include data centers requiring dense power backup, PBX and VoIP systems needing clean power for uninterrupted communications, and network closets supporting IT equipment. It also pairs with generators for extended backup during prolonged outages, ensuring continuous operation for mission-critical servers and computing systems.
Data Center Power Backup
Provides 12 kW of protected power for server racks, storage arrays, and networking gear, with efficient operation to support high-density deployments.
Telecommunications Infrastructure
Ensures stable power for PBX, VoIP, and network equipment, preventing downtime in voice and data communications with its surge protection and clean output.
Physical Profile
The Eaton BladeUPS measures 10.30" in height, 17.40" in width, and 26" in depth, fitting standard 19-inch server racks with a 6U rack height. Its weight of approximately 135 lb requires proper rack mounting and handling equipment for installation. The compact form factor maximizes rack space utilization while providing substantial power capacity, making it suitable for environments where floor space is at a premium.
- Width
- 17.40" (441.96 mm)
- Depth
- 26" (660.40 mm)
- Height
- 6U
- Weight
- 135 lb (61234.97 g)
What's in the Box
The package includes the BladeUPS 12kW rack-mountable UPS unit, a software suite CD containing Intelligent Power Manager supervisory software and Intelligent Power Protector protection software, and all necessary documentation for setup and operation.
Highlights
- 12 kW load capacity for high-density power protection
- 6U rack-mountable form factor saves space in server racks
- 208 V AC and 230 V AC input with 208 V AC output
- 4.70-minute full load runtime, extendable to 13 minutes at half load
- 98% operational efficiency reduces energy costs
- LCD display and status LEDs for real-time monitoring
- Network management via dry contact, INDGW-X2 card, and Web/SNMP
- Replaceable VRLA/AGM battery for easy maintenance
- Three-phase double conversion online topology
- RoHS compliant and backed by an 18-month limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ZC1212208100000 |
| Brand Name | Eaton |
| Product Line | BladeUPS |
| Product Name | BladeUPS 12kW Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 5-wire |
| Receptacle Type | Hard Wire 5-wire |
| Protection Type | Surge |
| Phase | Three Phase |
| Application/Usage | Generator,Mission Critical Equipment,Data Center,PBX System,VoIP,Network Closet,IT Equipment,Computer |
| Efficiency | 98% |
| Power Description | |
| Load Capacity (Watt) | 12 kW |
| Input Voltage | 208 V AC,230 V AC |
| Input Voltage Range | 180 V AC - 265 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact,INDGW-X2 Card,Web/SNMP |
| Alarm | Low Battery |
| Controls/Indicators | |
| Status Indicators | Four status-at-a-glance LEDs |
| Battery Information | |
| DC System Voltage | 240 V DC |
| Battery Characteristics | VRLA/AGM |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 1266 BTU/h |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 6U |
| Height | 10.30" (261.62 mm) |
| Width | 17.40" (441.96 mm) |
| Depth | 26" (660.40 mm) |
| Weight (Approximate) | 135 lb (61234.97 g) |
| Miscellaneous | |
| Package Contents | BladeUPS 12kW Rack-mountable UPS Software Suite CD |
| Software Included | Intelligent Power Manager supervisory software and Intelligent Power Protector protection software |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 18 Month |
User Manual
FAQ
What is the power capacity of this Eaton UPS?
The Eaton BladeUPS provides a load capacity of 12 kW, making it suitable for protecting high-density IT equipment such as servers, storage, and networking gear in data centers or rack environments.
How long does the battery last during a power outage?
At full load, the battery runtime is 4.70 minutes, which extends to 13 minutes at half load. This provides sufficient time for safe shutdown of connected equipment or transition to a backup generator.
What input and output voltages does this UPS support?
It accepts input voltages of 208 V AC and 230 V AC, with a range from 180 V AC to 265 V AC, and delivers a stable output of 208 V AC. This compatibility suits three-phase power systems commonly used in commercial and data center settings.
Is this UPS rack-mountable, and what are its dimensions?
Yes, it is designed for rack mounting with a 6U height. The physical dimensions are 10.30" in height, 17.40" in width, and 26" in depth, fitting standard 19-inch server racks and weighing approximately 135 lb.
What management and monitoring features are included?
The UPS includes an LCD display, four status-at-a-glance LEDs, and network management options such as dry contact, INDGW-X2 card, and Web/SNMP. These tools allow for local and remote monitoring of power status, battery health, and system alarms.
What type of battery does this UPS use, and is it replaceable?
It uses a VRLA/AGM lead-acid battery with a 240 V DC system voltage. The battery is user-replaceable, facilitating maintenance without replacing the entire UPS unit, and includes a low battery alarm for timely replacement.
What power capacity is listed for this UPS?
The listed power specification is 12 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC,230 V AC, which helps position the unit for the right load level and installation role.
