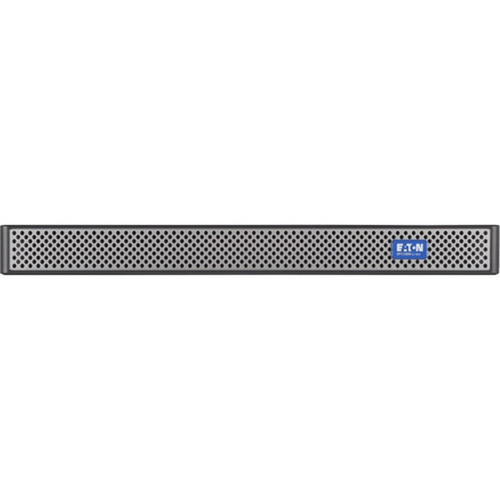

Eaton 9PXEBM48RT-L Extended Battery Module - EBM - Lithium Ion - 48V DC - Hot-Swappable - Rack/Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This battery module operates on 48V DC output and utilizes Lithium Ion chemistry for improved energy density and longevity. The hot-swappable design allows for battery replacement without powering down the connected UPS system, maintaining continuous protection for connected equipment.
The module supports a wide operating temperature range from 32°F to 104°F (0°C to 40°C), ensuring reliable performance in typical server room conditions. Its 1U rack-mount height and substantial 17.20" width make it compatible with standard rack enclosures while providing ample battery capacity.
Relevant factors for this section include Battery Chemistry, Hot Swappable, Output Voltage, Minimum Operating Temperature. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Eaton 9PX EBM delivers several advantages for IT power management. Its Lithium Ion battery chemistry provides faster recharge times, longer service life, and reduced maintenance compared to traditional valve-regulated lead-acid (VRLA) batteries. The hot-swappable capability ensures uninterrupted UPS operation during battery maintenance or replacement.
Extended Runtime Capability
Connects directly to compatible Eaton 9PX UPS systems to significantly extend backup power duration during utility outages.

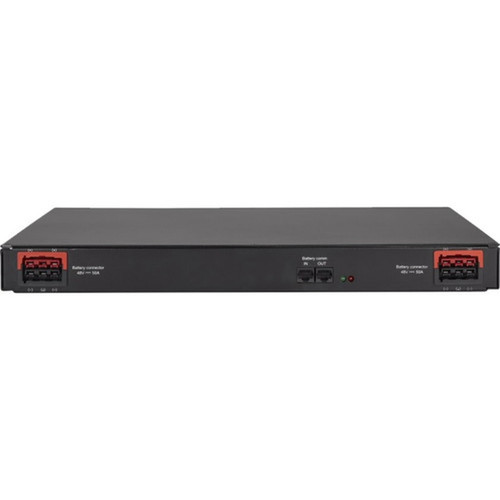

- Daisy-chain connector supports multiple battery packs
- Heavy-gauge cabling with high-current 48V DC connectors
Flexible Installation Options
Supports both 1U rack mounting and upright tower installation using included hardware, adapting to various deployment scenarios.
- Includes rack-mounting hardware and stabilizer bracket
- Compact 1U height conserves rack space
Deployment / Use Cases
The Eaton 9PX Extended Battery Module is designed for environments requiring extended backup power for critical equipment. Its primary application is extending the runtime of Eaton 9PX UPS systems in business IT infrastructure.
Typical deployment scenarios include server rooms where extended outage protection is necessary for business continuity, network closets supporting critical networking equipment, and any environment using Eaton 9PX UPS systems that require additional battery capacity beyond the standard configuration.
Relevant factors for this section include Battery Chemistry, Hot Swappable, Output Voltage, Minimum Operating Temperature. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Server Room Backup Extension
Extends runtime for servers, storage systems, and network equipment during prolonged power interruptions.
Network Infrastructure Protection
Provides additional backup time for switches, routers, and other networking gear in distributed IT environments.
Physical Profile
The battery module features a compact design measuring 1.70" high, 17.20" wide, and 17.60" deep (43.18 x 436.88 x 447.04 mm), with an approximate weight of 36.50 pounds (16556.12 g). This 1U form factor optimizes rack space utilization while providing substantial battery capacity. The included stabilizer bracket ensures secure installation in both rack and tower configurations.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.70" (43.18 mm), 17.20" (436.88 mm), 17.60" (447.04 mm), 36.50 lb (16556.12 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.20" (436.88 mm)
- Depth
- 17.60" (447.04 mm)
- Height
- 1.70" (43.18 mm)
- Weight
- 36.50 lb (16556.12 g)
What's in the Box
The package includes all necessary components for immediate deployment of the battery module.
Highlights
- Extends runtime for compatible Eaton 9PX UPS systems
- Lithium Ion battery chemistry for improved performance and longevity
- Hot-swappable design allows maintenance without downtime
- 48V DC output with heavy-gauge cabling and high-current connectors
- Supports daisy-chaining for additional battery packs
- 1U rack-mountable or tower installation options
- Includes all necessary mounting hardware and stabilizer bracket
- Wide operating temperature range (32°F to 104°F / 0°C to 40°C)
- RoHS compliant for environmental responsibility
- Compatible with multiple Eaton 9PX UPS models
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | 9PXEBM48RTL |
| Brand Name | Eaton |
| Product Series | 9PX |
| Product Name | 9PX Extended Battery Module (EBM) |
| Product Type | UPS Battery Pack |
| Technical Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Output Voltage | 48 V DC |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 17.60" (447.04 mm) |
| Weight (Approximate) | 36.50 lb (16556.12 g) |
| Miscellaneous | |
| Package Contents | 9PX Extended Battery Module (EBM) External battery cable Rack-mounting hardware Stabilizer bracket Quick Start Guide |
| Compatibility | Eaton UPS: 9PX1500RT-L 9PX1500RTN-L 9PX1500GRT-L 9PX |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
User Manual
FAQ
Which Eaton UPS models are compatible with this battery module?
The Eaton 9PX Extended Battery Module is compatible with several Eaton 9PX UPS models including the 9PX1500RT-L, 9PX1500RTN-L, 9PX1500GRT-L, and other 9PX series UPS systems. Always verify compatibility with your specific UPS model before purchase to ensure proper integration and performance.
What are the advantages of Lithium Ion batteries over traditional UPS batteries?
Lithium Ion batteries in UPS applications offer several advantages including faster recharge times, longer service life (typically 8-10 years), reduced maintenance requirements, better performance at higher temperatures, and more compact size for equivalent power capacity. They also maintain voltage more consistently during discharge compared to traditional valve-regulated lead-acid batteries.
Can this battery module be installed in both rack and tower configurations?
Yes, the Eaton 9PX EBM supports both 1U rack mounting and upright tower installation. The package includes rack-mounting hardware and a stabilizer bracket for secure installation in either configuration. The 1U height makes it ideal for standard rack enclosures while the tower option provides flexibility for environments without rack infrastructure.
What does 'hot-swappable' mean for a UPS battery module?
Hot-swappable means the battery module can be replaced or maintained while the connected UPS system remains operational and continues providing power protection to connected equipment. This feature eliminates downtime during battery replacement or maintenance, ensuring continuous power protection for critical IT infrastructure.
How does the daisy-chain connector work with additional battery packs?
The daisy-chain connector allows multiple Eaton 9PX battery modules to be connected together to further extend backup runtime. This enables scalable power protection where additional battery packs can be added to increase backup duration as needed. The heavy-gauge cabling with high-current 48V DC connectors ensures efficient power transfer between modules.
What is included in the package with this battery module?
The package includes the 9PX Extended Battery Module (EBM) itself, an external battery cable for connection to the UPS, rack-mounting hardware for 1U installation, a stabilizer bracket for secure mounting, and a Quick Start Guide for installation instructions. All necessary components are included for immediate deployment in either rack or tower configurations.
