Eaton EVMIGU23X G4 Metered PDU - 42 Outlets - 23 kW - Universal Input - Vertical 0U Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton G4 PDU is engineered for precision power management in demanding environments. The 23 kW capacity and 55 A input current handle substantial loads, while the metered functionality provides detailed power consumption data via the RJ-45 network port. The vertical 0U form factor installs seamlessly in standard racks without consuming U space.
Universal input ensures compatibility with various power sources, and the outlet mix supports both standard and high-power devices. The unit operates reliably across a wide temperature range from 32°F to 140°F, maintaining performance in typical data center conditions.
Relevant factors for this section include PDU Type, Plug/Connector Type, Receptacle Type, Power Rating (Watt). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Eaton G4 Metered PDU offers several distinct advantages for power distribution management. Its combination of high capacity, monitoring capabilities, and space-efficient design addresses critical needs in rack-based deployments.
High-Density Power Distribution
With 42 outlets and 23 kW capacity, this PDU supports numerous devices in compact rack spaces, reducing the need for multiple power strips.
- 42 total outlets
- 23 kW power rating
- 55 A input current
Intelligent Power Monitoring
The metered design with network connectivity enables remote monitoring of power consumption, helping identify usage patterns and prevent circuit overloads.
- RJ-45 network interface
- Real-time power data
- Remote management capability
Space-Optimized Installation
The vertical 0U form factor mounts efficiently in rack sides, preserving valuable U space for equipment while providing full power distribution functionality.
- 0U rack height
- Vertical orientation
- Compact footprint
Deployment / Use Cases
This Eaton G4 Metered PDU is ideal for environments requiring reliable, monitored power distribution for rack-mounted equipment. Its high outlet count and power capacity make it suitable for data center cabinets, server rooms, and network closets where multiple devices need centralized power management.
The vertical mounting and 0U profile are particularly valuable in full racks where front and rear space is at a premium. The metered functionality supports power usage effectiveness (PUE) optimization initiatives and helps maintain operational efficiency through detailed consumption tracking.
Data Center Rack Power
Deploy in standard 19-inch racks to power servers, switches, and storage arrays while monitoring total power draw through the network interface.
High-Density IT Environments
Support numerous devices in compact spaces where traditional horizontal PDUs would consume valuable rack units needed for equipment.
Physical Profile
The Eaton G4 PDU features a vertical form factor measuring 72" in height with a slim 2.56" width and 2.05" depth, designed to mount efficiently on rack sides. The 0U rack height preserves all front and rear rack space for equipment installation while providing full power distribution capabilities.
Weighing approximately 9.70 lb, the unit installs securely in standard racks with its vertical mounting orientation. The compact dimensions and lightweight construction simplify handling during deployment while maintaining structural integrity for long-term reliability.
- Width
- 2.56" (65.02 mm)
- Depth
- 2.05" (52.07 mm)
- Height
- 0U
- Weight
- 9.70 lb (4399.85 g)
Highlights

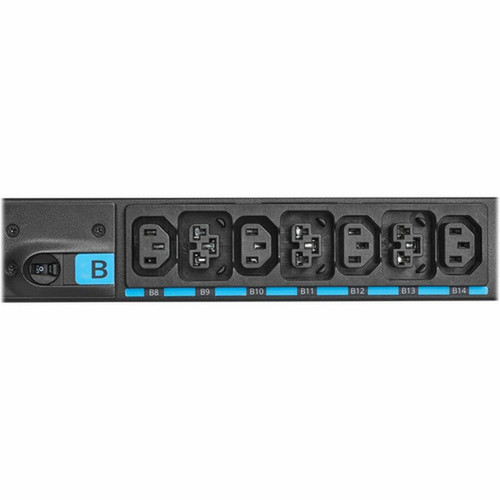

- 42 total outlets with 24 IEC C13 and 18 IEC C39 receptacles
- 23 kW power rating with 55 A input current capacity
- Metered design with RJ-45 network interface for power monitoring
- Vertical 0U form factor for space-efficient rack mounting
- Universal input compatibility for flexible power source connection
- Rack-mountable construction with vertical orientation
- Operating temperature range from 32°F to 140°F
- 3-year limited warranty for reliable long-term performance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EVMIGU23X |
| Brand Name | Eaton |
| Product Series | G4 |
| Product Name | G4 42-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | Universal Input |
| Receptacle Type | IEC 60320 C13,IEC 60320 C39 |
| Receptacle Detail | 24 x IEC 60320 C13,18 x IEC 60320 C39 |
| Power Description | |
| Power Rating (Watt) | 23 kW |
| Input Current | 55 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Vertical |
| Rack Height | 0U |
| Height | 72" (1828.80 mm) |
| Width | 2.56" (65.02 mm) |
| Depth | 2.05" (52.07 mm) |
| Weight (Approximate) | 9.70 lb (4399.85 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Country of Origin | Philippines |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton PDU?
This Eaton G4 PDU has a 23 kW power rating with 55 A input current, providing substantial capacity for powering multiple rack-mounted devices simultaneously. The 23 kW rating supports high-density deployments where numerous servers, switches, or storage units require reliable power distribution within a single rack environment.
How many outlets does this PDU provide and what types are they?
The PDU offers 42 total outlets consisting of 24 IEC 60320 C13 receptacles and 18 IEC 60320 C39 receptacles. This mix accommodates both standard power cords (C13) and higher-power equipment connections (C39), providing flexibility for diverse device types in rack installations without requiring additional adapters or power strips.
What does 'metered' mean for this PDU?
Metered indicates this PDU includes monitoring capabilities that track power consumption through its integrated network interface. The RJ-45 port enables remote access to real-time power usage data, helping administrators monitor load levels, identify potential overloads, and optimize energy efficiency in rack environments through detailed power consumption analytics.
How does the vertical 0U mounting work?
The vertical 0U form factor mounts on the sides of standard 19-inch racks without consuming any front or rear rack units (U space). The 72" height aligns with typical rack heights while the slim 2.56" width fits neatly on rack sides, preserving all U space for equipment installation while providing full power distribution functionality in space-constrained environments.
What is universal input compatibility?
Universal input means this PDU accepts a wide range of input power sources without requiring specific voltage or connector configurations. This flexibility simplifies deployment in various geographic locations or facilities with different power infrastructures, ensuring the PDU can connect to available power sources without compatibility concerns or additional adapters.
What warranty coverage does this Eaton PDU include?
Eaton provides a 3-year limited warranty for this G4 Metered PDU, covering manufacturing defects and ensuring reliable performance. The warranty supports long-term deployment in critical environments where continuous power distribution is essential, backed by Eaton's reputation for quality power management products and technical support.
