Eaton EVMIL630X G4 Metered PDU - 42 Outlets - 5. 80 kVA - NEMA L6-30P Input - 24x C13 & 18x C39 - Vertical Rack Mount - 230V AC
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This metered PDU features a single-phase design with a 30A input current, delivering 5.80 kW of power capacity. The unit includes 24 IEC 60320 C13 outlets and 18 IEC 60320 C39 outlets, accommodating a mix of standard and high-power devices commonly found in server racks and networking cabinets. The LCD display provides at-a-glance visibility into current load levels, helping administrators prevent circuit overloads and optimize power usage.
Network connectivity is provided through an RJ-45 port, enabling integration with existing network management systems via SNMP protocols. This allows for centralized monitoring of power consumption, remote outlet control, and alerting for abnormal conditions. The PDU operates within a temperature range of 32°F to 140°F (0°C to 60°C), making it suitable for standard data center environments without requiring specialized cooling.
Relevant factors for this section include PDU Type, Phase, Plug/Connector Type, Input Voltage. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Eaton G4 EVMIL630X combines high outlet density with advanced monitoring capabilities in a space-efficient vertical design. Its 42-outlet configuration supports mixed device types while the metered functionality provides essential visibility into power consumption patterns.
High-Density Power Distribution
With 42 outlets in a vertical form factor, this PDU maximizes power distribution capacity without consuming additional rack units, preserving valuable rack space for servers and networking equipment.
- 24 x IEC C13 outlets for standard devices
- 18 x IEC C39 outlets for high-power equipment
- 0U rack height for space efficiency
Intelligent Power Monitoring
The integrated LCD display and SNMP management capabilities provide real-time visibility into power usage, enabling proactive capacity planning and preventing overload situations before they occur.
- LCD display for local load monitoring
- SNMP network management for remote access
- Circuit breaker protection for overload safety
Simplified Installation
Vertical mounting orientation with toolless installation reduces deployment time and complexity, while the 10-foot power cord provides flexibility in rack placement and power source connection.
- Toolless vertical mounting
- Button mount system for secure installation
- 10-foot cord for placement flexibility
Deployment / Use Cases
This Eaton PDU is specifically designed for data center environments where reliable power distribution and monitoring are critical. Its 42-outlet capacity makes it ideal for high-density server racks, network cabinets, and telecommunications equipment installations where multiple devices require centralized power management.
The metered functionality with SNMP management supports environments requiring compliance reporting, capacity planning, and proactive maintenance. IT administrators can monitor power consumption trends, receive alerts for abnormal conditions, and remotely control outlets for equipment cycling or emergency shutdown procedures.
Enterprise Data Centers
Deploy in server racks supporting virtualization clusters, storage arrays, and networking equipment where power monitoring and high outlet density are essential for operational efficiency and uptime.
Network Operations Centers
Use in NOC environments to power monitoring equipment, security appliances, and communication devices while maintaining visibility into power consumption across critical infrastructure.
Physical Profile
The Eaton G4 EVMIL630X features a vertical form factor with dimensions of 68.10" height × 2.09" width × 2.05" depth (1729.74 mm × 53.09 mm × 52.07 mm), designed to mount vertically in standard 19-inch racks without consuming rack units. The black finish provides a professional appearance that blends with typical data center equipment. The toolless mounting system with button mounts enables quick installation and secure attachment to rack rails.
- Width
- 2.09" (53.09 mm)
- Depth
- 2.05" (52.07 mm)
- Height
- 0U
- Weight
- 16.54 lb (7502.42 g)
- Length
- 10 ft (3.05 m)
What's in the Box
The package includes everything needed for immediate deployment of the power distribution unit in your rack environment.
Highlights
- 42 total outlets: 24 IEC C13 + 18 IEC C39 for mixed device support
- 5.80 kVA / 5.80 kW power capacity with 30A input current
- Metered PDU with LCD display for real-time load monitoring
- SNMP network management card for remote monitoring and control
- Vertical rack-mount form factor with 0U rack height
- NEMA L6-30P input plug with 230V AC operating voltage
- Circuit breaker protection against overload conditions
- Toolless mounting system for quick installation
- 10-foot power cord for flexible placement options
- 3-year limited warranty with RoHS environmental compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EVMIL630X |
| Brand Name | Eaton |
| Product Series | G4 |
| Product Model | EVMIL630X |
| Product Name | G4 EVMIL630X 42-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13,IEC 60320 C39 |
| Receptacle Detail | 24 x IEC 60320 C13,18 x IEC 60320 C39 |
| Protection Type | Circuit Breaker |
| Features | LCD Display |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5.80 kVA |
| Power Rating (Watt) | 5.80 kW |
| Input Current | 30 A |
| Management | |
| Management | SNMP Network Management Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical/Toolless |
| Mount Type | Rack-mountable,Button Mount |
| Form Factor | Vertical |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 68.10" (1729.74 mm) |
| Width | 2.09" (53.09 mm) |
| Depth | 2.05" (52.07 mm) |
| Weight (Approximate) | 16.54 lb (7502.42 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Package Contents | G4 EVMIL630X 42-Outlets PDU Mounting Buttons |
| Application/Usage | Data Center,IT Equipment |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Eaton PDU?
The Eaton G4 EVMIL630X has a power capacity of 5.80 kVA (5.80 kW) with a 30A input current. This capacity supports the simultaneous operation of multiple servers, networking equipment, and other IT devices typically found in data center racks, providing sufficient power for high-density deployments while maintaining headroom for future expansion.
How many outlets does this PDU have and what types are they?
This PDU features 42 total outlets: 24 IEC 60320 C13 outlets for standard equipment and 18 IEC 60320 C39 outlets for higher-power devices. This mixed configuration allows you to power a variety of server, storage, and networking equipment from a single power distribution unit, reducing the need for multiple PDUs in your rack.
What input voltage does this PDU require?
The Eaton G4 EVMIL630X operates on 230V AC input with a NEMA L6-30P plug. It accepts a voltage range from 200V to 240V AC, providing compatibility with various power sources commonly found in data center environments. The output voltage is stabilized at 208V AC for consistent power delivery to connected equipment.
How is this PDU mounted in a rack?
This PDU features a vertical form factor with toolless mounting using included button mounts. It installs vertically in standard 19-inch racks without consuming any rack units (0U rack height), preserving valuable rack space for servers and networking equipment while providing easy access to all outlets along the length of the unit.
What management capabilities does this metered PDU offer?
The Eaton G4 EVMIL630X includes an LCD display for local load monitoring and an SNMP network management card for remote management. This allows IT administrators to monitor power consumption in real-time, receive alerts for abnormal conditions, remotely control outlets for equipment cycling, and integrate power data with existing network management systems for comprehensive infrastructure monitoring.
What protection features are included with this PDU?

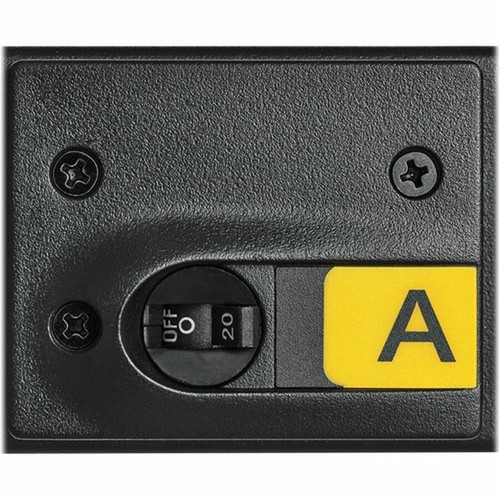

This PDU includes circuit breaker protection to safeguard against overload conditions that could damage connected equipment or create safety hazards. The circuit breaker automatically interrupts power if the load exceeds safe limits, protecting both the PDU and the devices connected to it. Combined with the SNMP management capabilities, this provides both physical and monitoring protection for your critical infrastructure.
