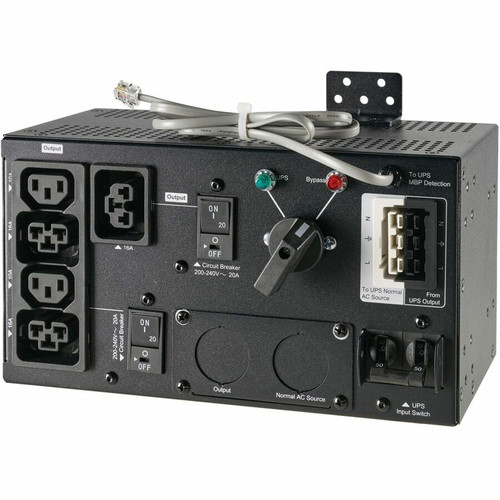

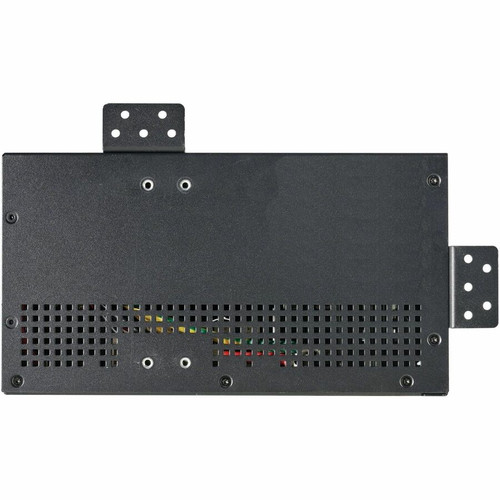

Eaton MBP6KIECG2 Bypass Switch - 6 kW/6 kW Load Capacity - 12 x IEC 60320 C13 & 3 x IEC 60320 C39 Outlets - Rackmount/Tower/Wall-mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The MBP6KIECG2 features a hardwired NEMA L6-30P plug connector, ensuring secure power input connections. It offers 12 IEC 60320 C13 outlets and 3 IEC 60320 C39 outlets, providing flexible power distribution for a mix of standard and high-power devices commonly found in server racks and networking setups.
With a compact footprint measuring 5.12 inches in height, 9.41 inches in width, and 4.92 inches in depth, this bypass switch is optimized for space-efficient installation. The 0U rack height designation allows it to be mounted without consuming vertical rack space, ideal for crowded data center environments.
Relevant factors for this section include Plug/Connector Type, Receptacles, Load Capacity (VA), Load Capacity (Watt). When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The Eaton MBP6KIECG2 Bypass Switch enhances power system reliability by enabling seamless bypass operations. This capability minimizes downtime during UPS servicing or failures, maintaining operational continuity for connected devices. Its compatibility with Eaton's 9PX6KIECG2 UPS system ensures integrated performance within Eaton power ecosystems.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Capacity Power Management, Flexible Installation Options.
High-Capacity Power Management
Delivers 6 kW of load capacity, supporting demanding power requirements for servers, networking gear, and other critical equipment with consistent performance across a wide voltage range.
Flexible Installation Options
Designed for rackmount, tower, or wall-mount deployment, offering versatile placement to fit various infrastructure layouts and space constraints without compromising accessibility.
Deployment / Use Cases
This bypass switch is ideal for environments where power redundancy and maintenance flexibility are priorities. It supports scenarios where temporary power rerouting is necessary, ensuring that essential equipment remains powered even during power system interventions.
Use it in conjunction with compatible Eaton UPS systems to create a robust power protection strategy, enhancing overall system resilience and simplifying maintenance workflows.
Data Center Maintenance Bypass
Deploy in data centers to safely bypass UPS units during scheduled maintenance, allowing technicians to service power systems without shutting down critical servers and network infrastructure.
High-Availability Network Closets
Install in network closets or server rooms to provide a reliable power bypass solution for environments requiring continuous uptime, such as financial institutions, healthcare facilities, and telecommunications hubs.
Physical Profile
The MBP6KIECG2 features a durable, industrial-grade enclosure designed for long-term reliability in demanding environments. Its compact dimensions and 0U rack height make it easy to integrate into existing rack setups without occupying valuable vertical space. The unit's finish and build quality ensure it withstands typical data center conditions while maintaining a professional appearance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0U, 9.41" (239.01 mm), 4.92" (124.97 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 9.41" (239.01 mm)
- Depth
- 4.92" (124.97 mm)
- Height
- 0U
What's in the Box
The package includes all necessary components for immediate installation and operation.
Highlights
- 6 kW load capacity in both VA and watt ratings for high-power applications
- 12 IEC 60320 C13 outlets and 3 IEC 60320 C39 outlets for versatile device connectivity
- Hardwired NEMA L6-30P plug connector ensures secure power input
- Output voltage support from 208 V AC to 240 V AC for broad compatibility
- Rackmount, tower, or wall-mount installation options for flexible deployment
- 0U rack height design saves vertical space in server racks
- Compatible with Eaton's 9PX6KIECG2 UPS system for integrated power management
- RoHS compliant and backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | MBP6KIECG2 |
| Brand Name | Eaton |
| Product Model | MBP6KIECG2 |
| Product Name | MBP6KIECG2 Bypass Switch |
| Product Type | Bypass Switch |
| Technical Information | |
| Plug/Connector Type | Hardwired,NEMA L6-30P |
| Receptacles | 12 x IEC 60320 C13,3 x IEC 60320 C39 |
| Power Description | |
| Load Capacity (VA) | 6 kW |
| Load Capacity (Watt) | 6 kW |
| Output Voltage | 208 V AC,220 V AC,230 V AC,240 V AC |
| Physical Characteristics | |
| Form Factor | Rackmount/Tower/Wall-mountable |
| Rack Height | 0U |
| Height | 5.12" (130.05 mm) |
| Width | 9.41" (239.01 mm) |
| Depth | 4.92" (124.97 mm) |
| Miscellaneous | |
| Package Contents | MBP6KIECG2 Bypass Switch Input/output UPS Cable Set 2 x Cable Glands Mounting Hardware |
| Compatibility | Compatible with Eaton's 9PX6KIECG2 UPS system |
| Country of Origin | Philippines |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the load capacity of the Eaton MBP6KIECG2 Bypass Switch?
The Eaton MBP6KIECG2 Bypass Switch has a load capacity of 6 kW in both VA and watt ratings. This capacity supports powering multiple devices such as servers, switches, and other critical equipment, making it suitable for medium to high-density power environments in data centers or network closets.
How many outlets does this bypass switch have and what types are they?
This bypass switch includes 15 total outlets: 12 IEC 60320 C13 outlets and 3 IEC 60320 C39 outlets. The C13 outlets are standard for many IT devices, while the C39 outlets accommodate higher-power equipment, providing flexibility for diverse power distribution needs in rack-mounted setups.
What output voltage range does the MBP6KIECG2 support?
The MBP6KIECG2 supports an output voltage range of 208 V AC, 220 V AC, 230 V AC, and 240 V AC. This wide range ensures compatibility with various power standards and infrastructure configurations, allowing deployment in different geographic regions or facilities with specific voltage requirements.
Can this bypass switch be installed in a server rack?
Yes, the Eaton MBP6KIECG2 is designed for rackmount, tower, or wall-mount installation. It has a 0U rack height, meaning it can be mounted without consuming vertical rack space, which is ideal for optimizing space in crowded server racks or data center environments.
Is this bypass switch compatible with specific UPS systems?
The MBP6KIECG2 is compatible with Eaton's 9PX6KIECG2 UPS system. This compatibility ensures seamless integration within Eaton power ecosystems, allowing for coordinated bypass operations during maintenance or UPS failures to maintain continuous power to connected equipment.
What warranty and environmental standards does this product meet?
The Eaton MBP6KIECG2 Bypass Switch comes with a 3-year limited warranty, providing assurance of quality and reliability. It is also RoHS compliant, meaning it meets the Restriction of Hazardous Substances standards, which reduces environmental impact and aligns with modern regulatory requirements for electronic equipment.
