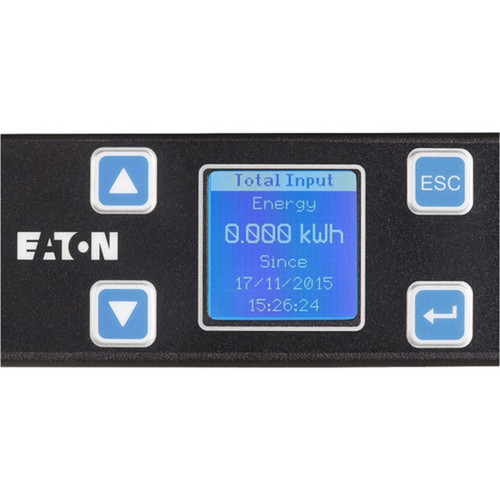

Eaton EMIT00-10 Metered Input Rack PDU - 1U - 1. 44 kW - 120V - 12A - 12 NEMA 5-15R Outlets - 10 ft Cord - Single-phase
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This metered PDU operates at 120V AC input and output voltage with a 12A input current rating, delivering up to 1.44 kW of power capacity. The unit features a single NEMA 5-15P input plug and twelve NEMA 5-15R output receptacles, providing standardized connectivity for North American equipment.
Network connectivity via RJ-45 enables remote monitoring and management of power consumption at the branch circuit level. The 1U rack height and horizontal mounting orientation optimize space utilization in standard 19-inch server racks. Physical dimensions measure 19" height, 1.69" width, and 8" depth, creating a compact footprint that maximizes rack space efficiency.
This section brings together practical product details such as Plug/Connector Type, Plug/Connector Detail, Receptacle Type, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The EMIT00-10 delivers intelligent power distribution with features designed for modern data center management. Branch-level metering provides detailed power consumption data for load balancing and capacity planning, while colour-coded outlets simplify circuit identification during installation and maintenance.
Advanced Protection
Eaton Hydraulic Magnetic Circuit Breakers offer reliable overload protection with accidental trip resistance, ensuring continuous operation of connected equipment.
- Accidental trip protection
- Reliable circuit breaking
Security Features
Enterprise-grade security includes user access control, password protection, and SSL encryption configurable to 1024 or 2048-bit standards for secure remote management.
- User access control
- SSL encryption
- Password protection
Plug Retention
IEC outlet eGrip technology securely retains all standard IEC plugs, preventing accidental disconnections that could disrupt critical systems.
- Secure plug retention
- Prevents disconnections
Deployment / Use Cases
This metered rack PDU is specifically designed for data center and server room environments where organized power distribution and monitoring are essential. The 1U form factor makes it ideal for standard server racks, while the 12-outlet configuration supports dense equipment deployments.
Primary applications include server racks in enterprise data centers, network closets, telecommunications installations, and broadcast facilities. The monitoring capabilities enable IT administrators to track power consumption, identify underutilized circuits, and plan for future capacity needs. The horizontal mounting orientation works seamlessly with standard rack equipment, and the 10-foot cord provides flexibility in power source placement.
Data Center Racks
Organize power distribution for servers, switches, and storage arrays while monitoring consumption at the circuit level for efficient capacity management.
Network Infrastructure
Power networking equipment in telecommunications rooms with reliable distribution and remote monitoring capabilities for proactive maintenance.
Physical Profile
Designed for standard 19-inch server racks, this PDU occupies just 1U of vertical space with horizontal mounting orientation. The compact dimensions of 19" height, 1.69" width, and 8" depth create a minimal footprint that preserves valuable rack real estate for other equipment. The unit features a durable construction suitable for data center environments, with clear labeling and colour-coded outlets for easy identification during installation and maintenance.
- Width
- 1.69" (42.93 mm)
- Depth
- 8" (203.20 mm)
- Height
- 1U
What's in the Box
The package includes everything needed for immediate deployment of the PDU in your rack environment.
Highlights
- 1.44 kW power capacity for demanding rack environments
- 12 NEMA 5-15R outlets provide ample connectivity
- Branch-level metering for precise load monitoring
- 1U horizontal rack-mount design saves space
- 120V AC input/output with 12A current rating
- 10-foot power cord offers installation flexibility
- Network RJ-45 port for remote management
- Eaton Hydraulic Magnetic Circuit Breakers with protection
- Colour-coded outlets simplify circuit identification
- 3-year limited warranty from Eaton
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | EMIT00-10 |
| Brand Name | Eaton |
| Product Line | ePDU |
| Product Series | Metered |
| Product Model | EMIT00-10 |
| Product Name | Metered Input Rack PDU |
| Product Type | PDU |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 1.44 kW |
| Input Current | 12 A |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| Height | 19" (482.60 mm) |
| Width | 1.69" (42.93 mm) |
| Depth | 8" (203.20 mm) |
| Miscellaneous | |
| Package Contents | ePDU Metered EMIT00-10 12-Outlet PDU SPK021-Installation SPK013-Network |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What is the power capacity of this Eaton rack PDU?
The Eaton EMIT00-10 delivers 1.44 kW of power capacity, operating at 120V AC with a 12A input current. This capacity supports multiple servers, networking devices, and other rack-mounted equipment in data center environments.
How many outlets does this PDU have and what type are they?
This PDU features 12 NEMA 5-15R outlets, providing standard North American connectivity for rack equipment. The outlets are colour-coded for easy circuit identification and feature eGrip plug retention to prevent accidental disconnections.
What rack space does this PDU require for installation?
The PDU occupies 1U of vertical space in a standard 19-inch rack with horizontal mounting orientation. Physical dimensions are 19" height, 1.69" width, and 8" depth, creating a compact footprint that maximizes usable rack space.
Does this PDU support remote monitoring and management?
Yes, the PDU includes an RJ-45 network port for remote monitoring capabilities. This enables branch-level metering for load balancing, user access control with password protection, and SSL encryption configurable to 1024 or 2048-bit standards for secure management.
What protection features does this Eaton PDU include?
The PDU incorporates Eaton Hydraulic Magnetic Circuit Breakers that provide reliable overload protection with accidental trip resistance. This ensures continuous operation of connected equipment while protecting against electrical faults in data center environments.
What is included in the package with this PDU?
The package contains the ePDU Metered EMIT00-10 12-Outlet PDU, SPK021-Installation kit, and SPK013-Network accessories. These components provide everything needed for complete setup, including mounting hardware and connectivity accessories for immediate deployment.
What power capacity is listed for this UPS?
The listed power specification is 1.44 kW, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
