Tripp Lite by Eaton PDUMV20NETLX Eaton 1. 9kW Single-Phase Switched PDU - 24 x NEMA 5-15/20R - 120V AC - Vertical Rack Mount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

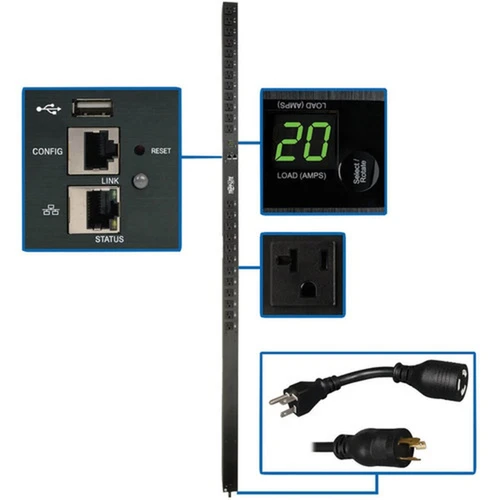

This switched PDU operates at 120V AC with a 20A input current, delivering 1.92kW of power capacity. The electrical design ensures stable power distribution across all 24 outlets while maintaining compatibility with standard North American power infrastructure. The NEMA L5-20P/5-20P input plug connects to appropriate power sources, and the 24 NEMA 5-15/20R outlets accommodate common equipment connectors.
Network management capabilities include support for IPv4, IPv6, HTTP, HTTPS, SMTP, SNMP versions 1-3, telnet, SSH, FTP, DHCP, and NTP protocols. This comprehensive protocol suite enables integration with existing network management systems and allows administrators to monitor power consumption, control individual outlets remotely, and receive alerts about power conditions.
This section brings together practical product details such as PDU Type, Design, Phase, Input Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The PDUMV20NETLX delivers intelligent power distribution with granular control and monitoring capabilities that traditional power strips cannot match. Its switched functionality transforms basic power distribution into a manageable infrastructure component.
Precise Load Management
The built-in digital current meter provides real-time power consumption data, enabling administrators to balance loads effectively and prevent circuit overloads that could cause downtime.
- Monitor individual outlet power draw
- Set thresholds for alert generation
- Balance loads across multiple PDUs
Comprehensive Remote Control
Network connectivity allows administrators to power cycle individual outlets remotely, reducing the need for physical access to equipment during troubleshooting or maintenance cycles.
- Control outlets via web interface
- Schedule power operations
- Integrate with DCIM solutions
Optimized Rack Integration
The vertical 0U mounting design conserves valuable rack space while providing power distribution directly adjacent to equipment. The slim 2.19" width fits standard rack profiles without interfering with equipment installation.
- Zero rack unit consumption
- Vertical mounting orientation
- Includes mounting hardware
Deployment / Use Cases
This switched PDU serves environments where remote power management and monitoring deliver operational benefits. Data centers implementing intelligent power management strategies deploy these units to gain visibility into power consumption patterns and enable remote equipment control.
Network operations centers benefit from the ability to power cycle unresponsive equipment without dispatching technicians to remote locations. The outlet-level control allows for staged equipment startup during maintenance windows and provides isolation capabilities for troubleshooting individual devices.
Data Center Power Management
Deploy in server racks to monitor power consumption per device, implement load balancing across circuits, and enable remote power cycling for servers, switches, and storage systems.
Remote Site Management
Install in branch office server rooms or network closets where limited IT staff requires remote power management capabilities to maintain uptime without frequent site visits.
Physical Profile

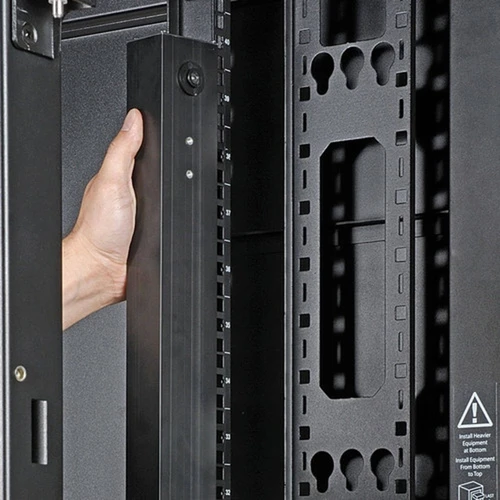

The PDUMV20NETLX features a vertical mounting design that occupies zero rack units (0U) when installed on rack posts. With dimensions of 70" height × 2.19" width × 2.65" depth (1778 × 55.63 × 67.31 mm), the unit provides extensive outlet coverage without consuming horizontal rack space. The 8.5 lb weight ensures stable mounting while remaining manageable for installation. The vertical orientation positions outlets conveniently alongside rack-mounted equipment, reducing cable clutter and improving airflow management.
- Width
- 2.19" (55.63 mm)
- Depth
- 2.65" (67.31 mm)
- Height
- 0U
- Weight
- 8.50 lb (3855.54 g)
What's in the Box
The package includes all components necessary for installation and operation:
Highlights
- 1.92 kW power capacity for demanding rack environments
- 24 NEMA 5-15/20R outlets support standard equipment
- 120V AC input and output voltage compatibility
- Switched design enables individual outlet control
- Network management via RJ-45 with multiple protocol support
- Vertical 0U rack mounting conserves space
- Built-in digital current meter prevents overloads
- Remote outlet switching reduces manual intervention
- Modular LX platform for management flexibility
- 2-year limited warranty with TAA compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMV20NETLX |
| Brand Name | Eaton |
| Product Model | PDUMV20NETLX |
| Product Name | PDUMV20NETLX 1.9kW Single-Phase Switched PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Design | Modular |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-20P/5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 24 x NEMA 5-15/20R |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 1.92 kW |
| Input Current | 20 A |
| Management | |
| Management | IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP |
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.19" (55.63 mm) |
| Depth | 2.65" (67.31 mm) |
| Weight (Approximate) | 8.50 lb (3855.54 g) |
| Miscellaneous | |
| Package Contents | PDUMV20NETLX 1.9kW Single-Phase Switched PDU Built-in LX Platform Interface NEMA L5-20R to 5-15/20P Plug Adapter Configuration Cable 24 x Cable Ties 2 x Cord Retention Brackets Rack-mounting Hardware PDUMVROTATEBRKT Mounting Bracket Accessory Owner's Manual |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the power capacity of this PDU?
The Eaton PDUMV20NETLX delivers 1.92 kW (1920 watts) of power capacity at 120V AC. This capacity supports multiple devices simultaneously while maintaining stable power distribution across all 24 outlets. The 20A input current ensures adequate power delivery for rack-mounted equipment in data center and server room environments.
How many outlets does this PDU provide and what type are they?
This PDU provides 24 NEMA 5-15/20R outlets, which accommodate standard North American plugs. These outlets support both 5-15P (15A) and 5-20P (20A) plugs, offering flexibility for various equipment types. The outlet configuration enables power distribution to multiple servers, switches, storage devices, or other rack-mounted equipment from a single power source.
What network management capabilities does this switched PDU offer?
The PDUMV20NETLX supports comprehensive network management protocols including IPv4, IPv6, HTTP, HTTPS, SNMP versions 1-3, SSH, FTP, DHCP, and NTP. This enables remote monitoring of power consumption, individual outlet control, alert configuration, and integration with existing network management systems. Administrators can power cycle equipment, monitor loads, and receive notifications through standard network interfaces.
How is this PDU mounted in a rack?
This PDU uses vertical mounting with a 0U footprint, meaning it mounts on the sides of rack posts without consuming horizontal rack units. The unit includes all necessary mounting hardware and features dimensions of 70" height × 2.19" width × 2.65" depth. The vertical orientation positions outlets conveniently alongside equipment while conserving valuable rack space for servers and other devices.
What safety features does this PDU include?
The PDU incorporates a built-in digital current meter that monitors power consumption in real-time to prevent overloads. Remote outlet switching allows administrators to isolate individual outlets without physical access. The unit is TAA compliant and meets RoHS environmental standards. These features combine to provide safe power distribution with monitoring capabilities that help prevent electrical issues in rack environments.
What is included in the package with this PDU?
The package contains the PDUMV20NETLX PDU unit, built-in LX Platform interface, NEMA L5-20R to 5-15/20P plug adapter, configuration cable, 24 cable ties, 2 cord retention brackets, complete rack-mounting hardware, PDUMVROTATEBRKT mounting bracket accessory, and owner's manual. All necessary components for installation and operation are included for immediate deployment in rack environments.
What power capacity is listed for this UPS?
The listed power specification is 1.92 kW, which helps position the unit for the right load level and installation role.
How many outlets are available?
The product includes Yes, which helps buyers understand how many connected devices it can support in its intended deployment.
