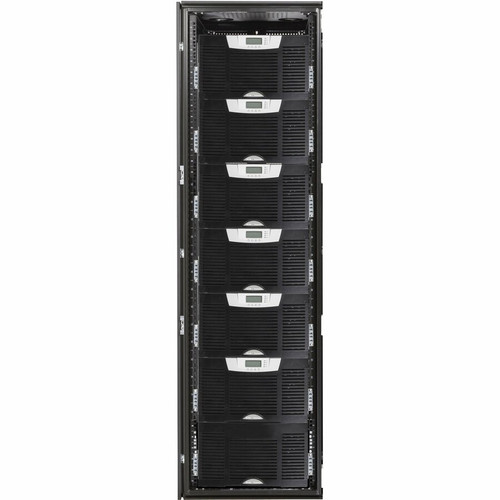

Eaton ZP22110XXXXX000 Preassembled BladeUPS - Top Entry 12 kW Tower - 220V AC Input - 120/208/228V AC Output - 5 Minute Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Eaton BladeUPS operates on a double conversion online topology, which continuously conditions incoming power to deliver a pure sine wave output, isolating connected equipment from voltage fluctuations, surges, and noise. The system accepts a 220V AC input and provides flexible output voltages of 120V, 208V, and 228V AC at a 50 Hz frequency, accommodating various regional power standards and equipment requirements.
Power management is facilitated through SNMP capability, allowing integration into existing network monitoring systems for remote oversight and alerts. The unit employs a hardwired 4-wire connection for both input and output, ensuring secure, high-current power delivery suitable for its 12 kW capacity.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Input Voltage, Output Voltage, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Eaton Preassembled BladeUPS stands out with its combination of high power capacity, flexible voltage output, and integrated management tools. Its preassembled design eliminates complex on-site assembly, while the included rack and software streamline deployment and operation.
Integrated Rack Solution
Includes an S-Series rack on a heavy-duty shipping pallet with an unloading ramp, providing a ready-to-use mounting platform that simplifies installation and enhances stability.
- Heavy-duty pallet
- Unloading ramp
- Front and rear aesthetic plates
Advanced Power Management
Eaton's Intelligent Power Software Suite enables detailed monitoring, configuration, and reporting, giving IT staff full control over power usage and UPS status.
- Remote monitoring
- Configuration tools
- Alerting capabilities
Scalable Parallel Design
Comes with a BladeUPS parallel bar and wireway, allowing for future expansion by connecting multiple units to increase total power capacity and redundancy.
- Parallel capability
- Modular expansion
- Redundancy support
Deployment / Use Cases
This 12 kW Eaton BladeUPS is engineered for environments where power continuity is critical and equipment demands high-capacity, clean power. Its tower form factor and comprehensive feature set make it suitable for standalone deployment in medium to large server rooms, data center edge locations, or industrial control systems.
Typical applications include protecting server racks, network switches, storage arrays, and industrial machinery that require stable 208V or 228V power. The SNMP management capability makes it ideal for IT-managed environments where remote monitoring and integration with existing network management systems are required. The unit's flexible output voltages allow it to support mixed equipment loads in multinational or multi-standard facilities.
Data Center Edge Deployment
Provides reliable power protection for server racks and networking equipment in colocation facilities or branch offices where space is optimized and power quality is paramount.
Industrial Power Conditioning
Safeguards sensitive industrial control systems, PLCs, and automation equipment from power anomalies in manufacturing or processing environments.
Physical Profile
The Eaton BladeUPS features a substantial tower enclosure measuring 81" high, 24" wide, and 42" deep, with an approximate weight of 683 pounds. This robust construction houses 40 maintenance-free lead-acid batteries and the double conversion power electronics. The tower design provides stability and ample internal space for components, while the included S-Series rack offers secure mounting on its heavy-duty shipping pallet. The front and rear aesthetic plates give the installation a finished, professional appearance suitable for visible equipment areas.
- Width
- 24" (609.60 mm)
- Depth
- 42" (1066.80 mm)
- Height
- 81" (2057.40 mm)
- Weight
- 683 lb (309803.59 g)
What's in the Box
This Eaton Preassembled BladeUPS ships complete with all necessary components for installation and operation:
Highlights
- 12 kW double conversion online UPS with tower form factor
- 220V AC input with 120V/208V/228V AC output flexibility
- 5-minute runtime at full load, 14 minutes at half load
- Includes 40 maintenance-free sealed lead-acid batteries
- SNMP manageable for network integration and remote monitoring
- Preassembled design with S-Series rack on shipping pallet
- Comes with Eaton Intelligent Power Software Suite
- Hardwired 4-wire connection for secure power delivery
- Parallel capable with included bar and wireway
- 1-year limited warranty, made in the United States
Specifications
| Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ZP22110XXXXX000 |
| Brand Name | Eaton |
| Product Line | BladeUPS |
| Product Name | Preassembled BladeUPS - Top Entry 12 kW, 208V |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hard Wire 4-wire |
| Power Description | |
| Input Voltage | 220 V AC |
| Output Voltage | 120 V AC,208 V AC,228 V AC |
| Output Frequency | 50 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Battery Information | |
| Number of Batteries | 40 |
| Battery Characteristics | Maintenance-free/Sealed |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 81" (2057.40 mm) |
| Width | 24" (609.60 mm) |
| Depth | 42" (1066.80 mm) |
| Weight (Approximate) | 683 lb (309803.59 g) |
| Miscellaneous | |
| Package Contents | Preassembled BladeUPS - Top Entry 12 kW, 208V 1 x S-Series Rack on a Heavy-duty Shipping Pallet with Unloading Ramp BladeUPS Parallel Bar and Wireway 1 x BladeUPS Module Intelligent Power Software CD BladeUPS Installation and User Manual Rack Hardware kit Front and Rear Rack Aesthetic Plates |
| Software Included | Eaton Intelligent Power Software Suite |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What is the power capacity of this Eaton BladeUPS?
This Eaton BladeUPS has a power capacity of 12 kW. It is designed to support high-power equipment loads in data center, server room, or industrial environments, providing continuous double conversion online power protection.
What runtime can I expect from this UPS at full load?
At full load, this Eaton BladeUPS provides 5 minutes of backup runtime. At half load, the runtime extends to 14 minutes. These runtimes are supported by 40 maintenance-free sealed lead-acid batteries included in the system.
What input and output voltages does this UPS support?
This UPS accepts a 220V AC input and provides output at 120V AC, 208V AC, or 228V AC. This flexibility allows it to accommodate various regional power standards and equipment voltage requirements within a single unit.
How is this Eaton BladeUPS managed and monitored?
The Eaton BladeUPS is SNMP manageable, enabling integration into network monitoring systems for remote oversight. It also includes the Eaton Intelligent Power Software Suite for detailed configuration, monitoring, and alerting capabilities from a connected computer.
What is included in the package with this UPS?
The package includes the preassembled BladeUPS unit, an S-Series rack on a heavy-duty shipping pallet with unloading ramp, BladeUPS parallel bar and wireway, Intelligent Power Software CD, installation and user manual, rack hardware kit, front and rear aesthetic plates, and the Eaton Intelligent Power Software Suite.
What type of batteries does this UPS use and how many are included?
This Eaton BladeUPS includes 40 maintenance-free sealed lead-acid batteries. These batteries require no regular maintenance and are designed for reliable performance in the double conversion online UPS topology.
What power capacity is listed for this UPS?
Power specifications help show where the unit fits best, including the type of load level, electrical environment, and backup role it is intended to support. These are usually the most decision-critical facts in a UPS or power-protection comparison.
What voltage details are listed?
The listed power specification is 220 V AC, which helps position the unit for the right load level and installation role.
